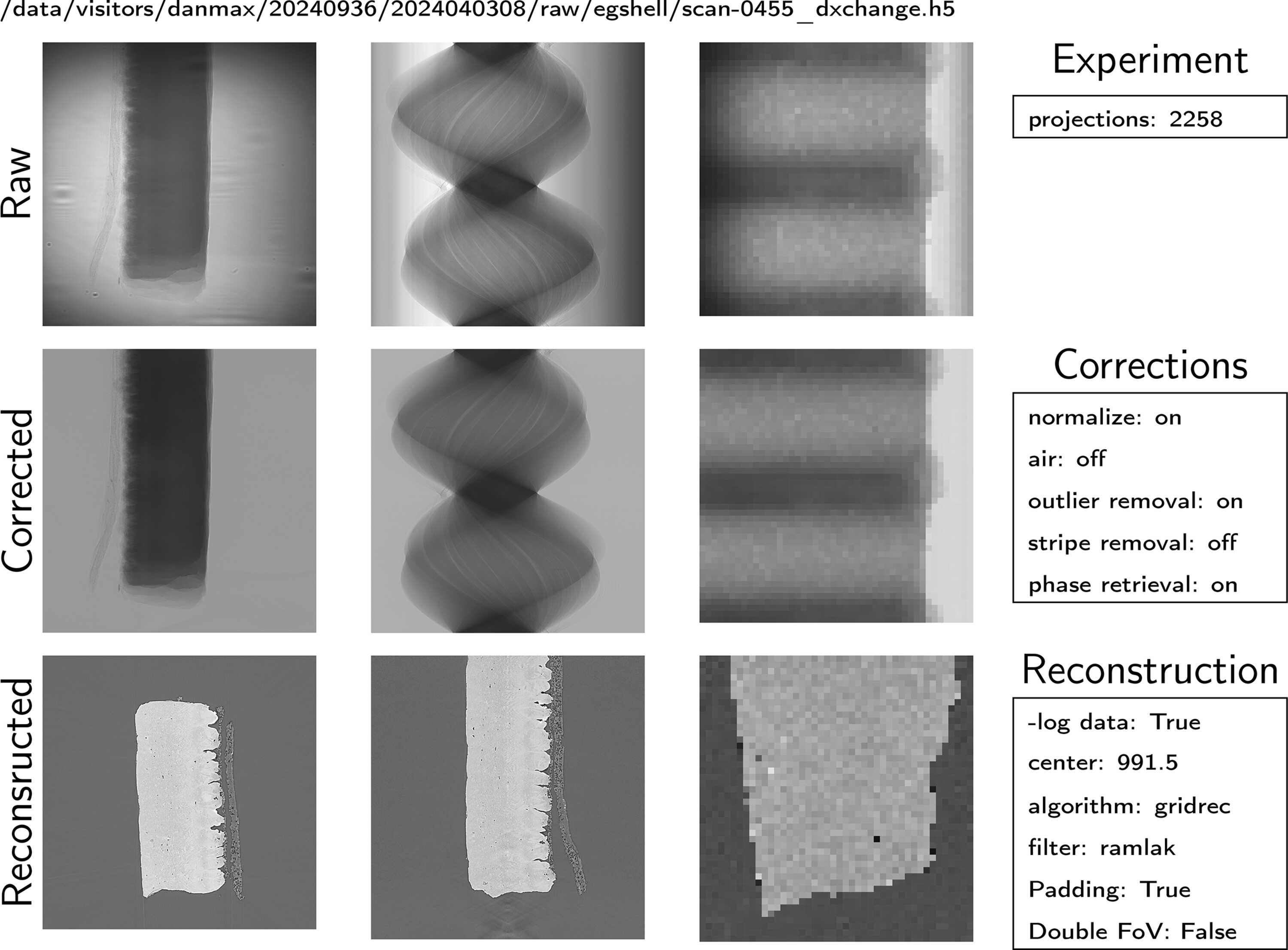

Figure 2
Example of the summary saved as a PDF for showing the reconstruction process generated by the framework. The raw, corrected and reconstructed data with three orthonormal slices are shown from each dataset. The report indicates which corrections were applied, and which reconstruction method was used. Note that the third image is deliberately shown in low resolution, as reading in this direction is computationally expensive. It is customizable in the pipeline how high the sampling of these slices should be. The sample in the example is a piece of chicken egg shell, with both membrane and shell visible.
