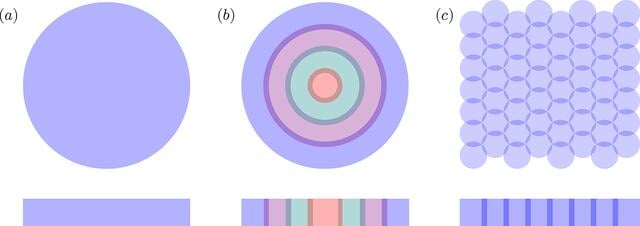

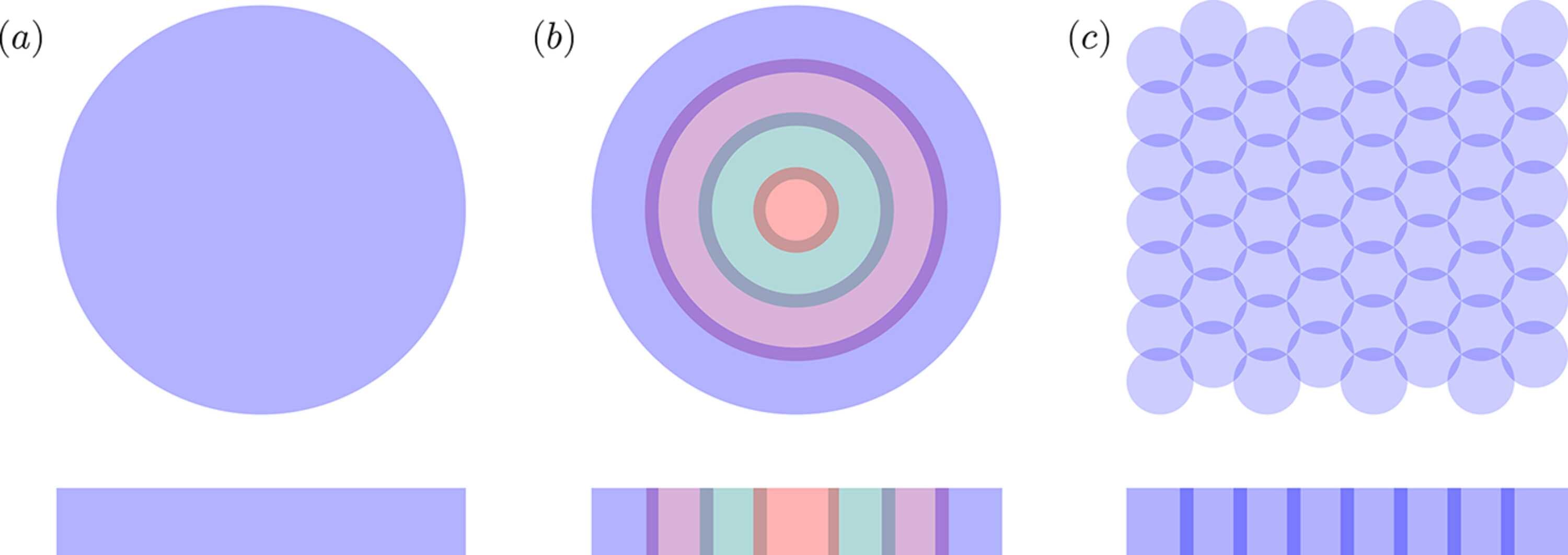

Figure 3
Different measurement strategies for high-resolution and large field of view datasets. The top view shows a cross-sectional overview of the scanned volume. The bottom view is perpendicular to the top view. (a) Wide beam with a large camera sensor with a high pixel count. (b) Projection stitching, multiple scans with projections stitched together pre-reconstruction to create a full field tomogram. Each colour represents two scans, one on the left and right, for a total of seven 180° scans or four 360° scans. The overlap is needed to align projections. (c) Volume stitching – multiple local tomograms stitched together volumetrically post-reconstruction.
