Figure 5

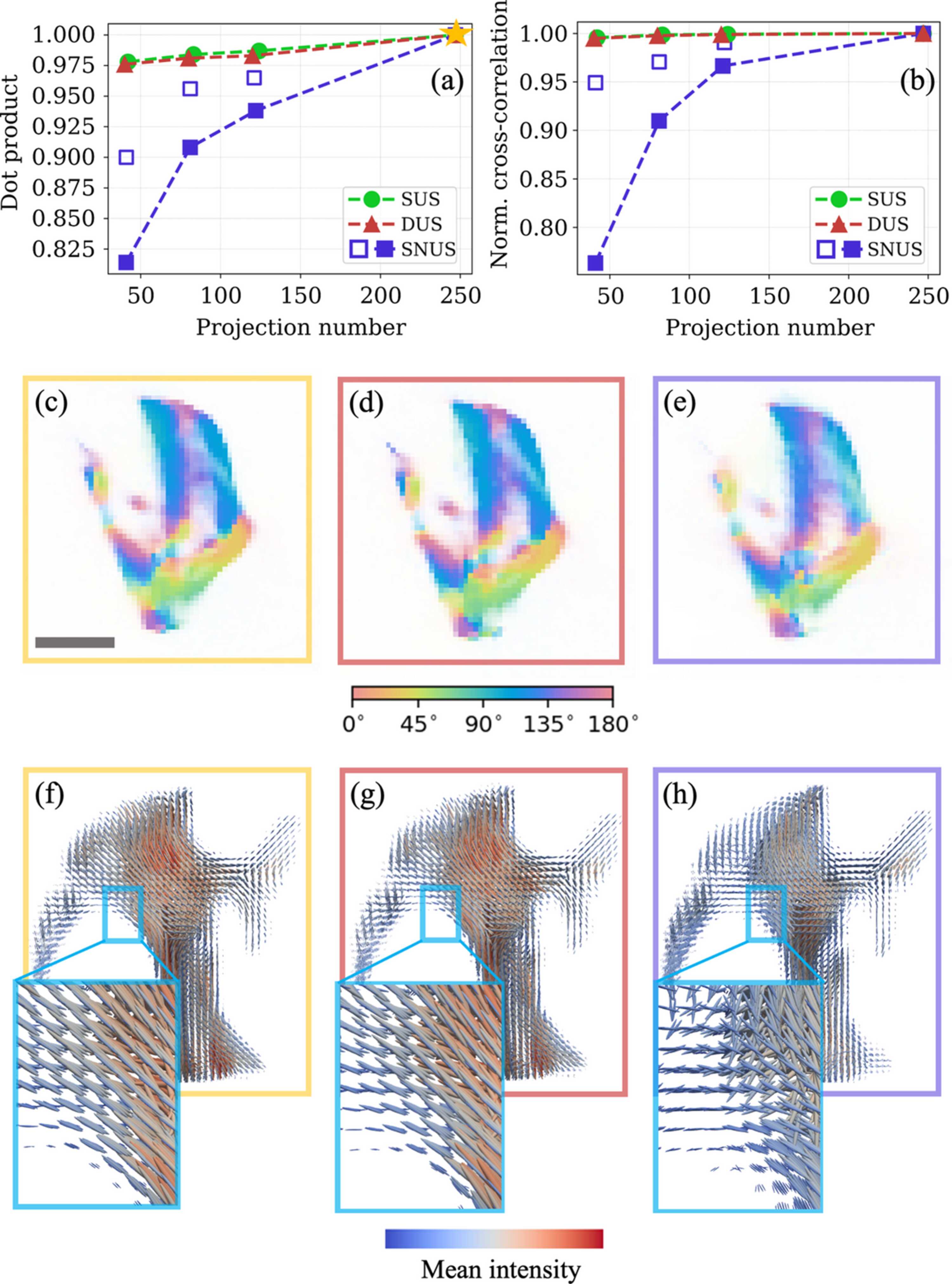

(a) Main orientation alignment scores across different sampling strategies and projection numbers. The yellow star indicates a score of 1 obtained using the full dataset for reconstruction. (b) Normalized cross-correlation coefficients between reconstructed and reference RSM under the same conditions. Orientation slice map reconstructed from (c) the full dataset where color indicating the local direction, (d) 40 DUS projections and (e) 120 SNUS projections corresponding to the filled-square marker in (a) and (b) (scale bar represents 500 µm). Glyph render of orientation and mean value in each voxel using (f) the full dataset, (g) 40 DUS projections and (h) 120 SNUS projections [same marker as (e)].
