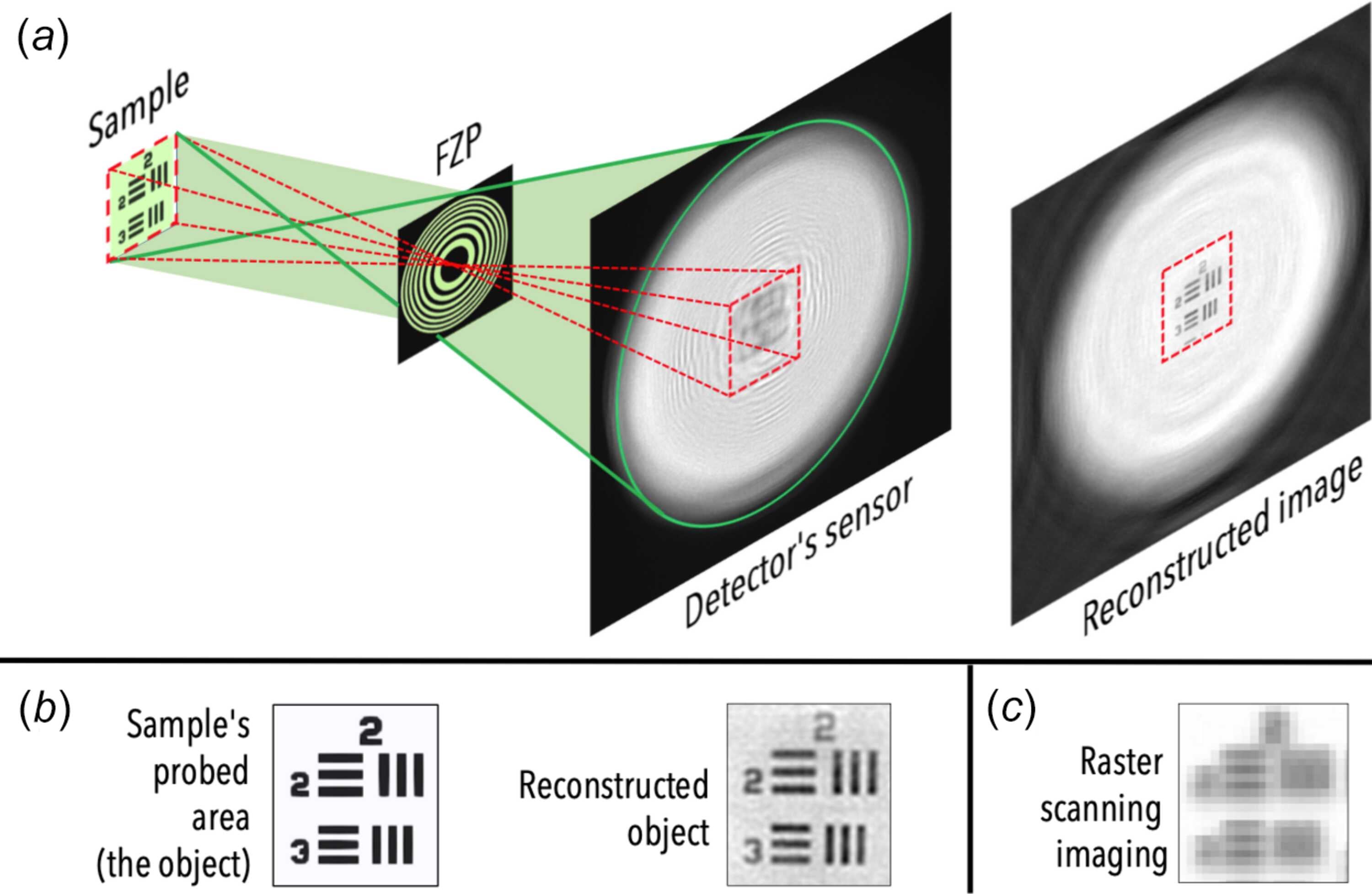

Figure 3
(a) Schematic representation of the setup illustrating the size difference, on the detector sensor, between the recorded raw signal, delimited by a green color circle, versus the reconstructed object (a region of the 1951USAF pattern) obtained after image reconstruction, delimited by a red dashed square. (b) Model image of a region featured in the 1951USAF sample and its corresponding reconstructed image experimentally obtained using the full-field imaging approach; and (c) the same object imaged in raster scanning mode using SAMBA beamline's fully focused macroscopic beam (120 mm × 150 µm, H × V).
