Figure 5

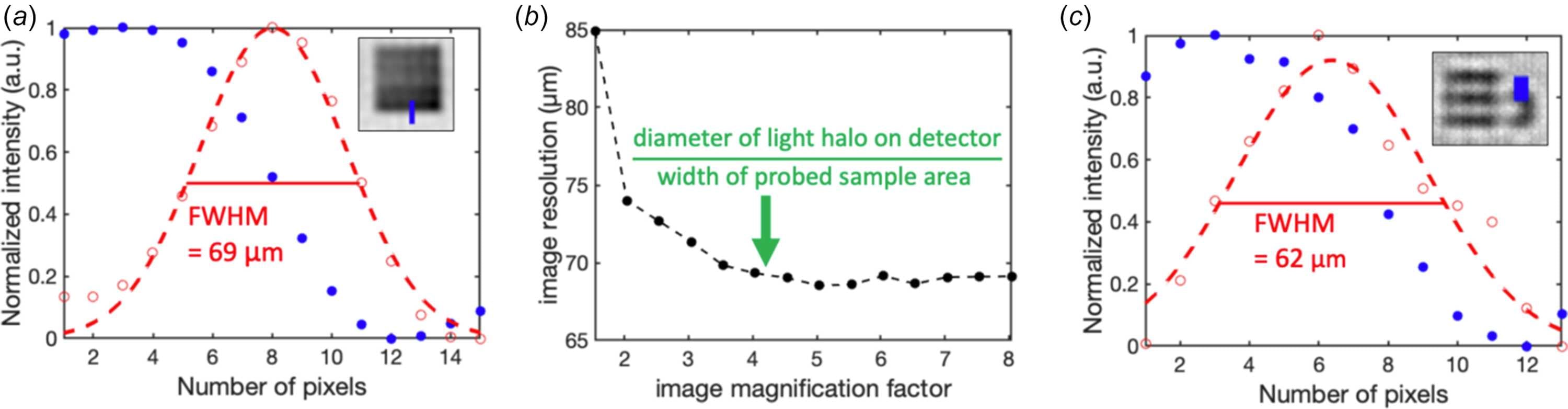

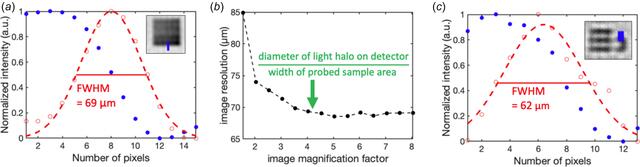

Spatial resolution at the sensor position measured in a reconstructed image obtained: (a) after enlarging its corresponding raw image using the resizing factor; or (c) from subpixel analysis. It was determined from the full width at half-maximum (FWHM) of a Gaussian curve fitted to the column pixels corresponding to the interface between a sample feature and the background, shown in the top right insets as a blue-colored bar. (b) The spatial resolution was also measured in a reconstructed image whose corresponding raw image was resized using multiple enlargement factors of increasing values. Among them, the specific value corresponding to the resizing factor introduced in this study is indicated by a green arrow.
