Figure 2

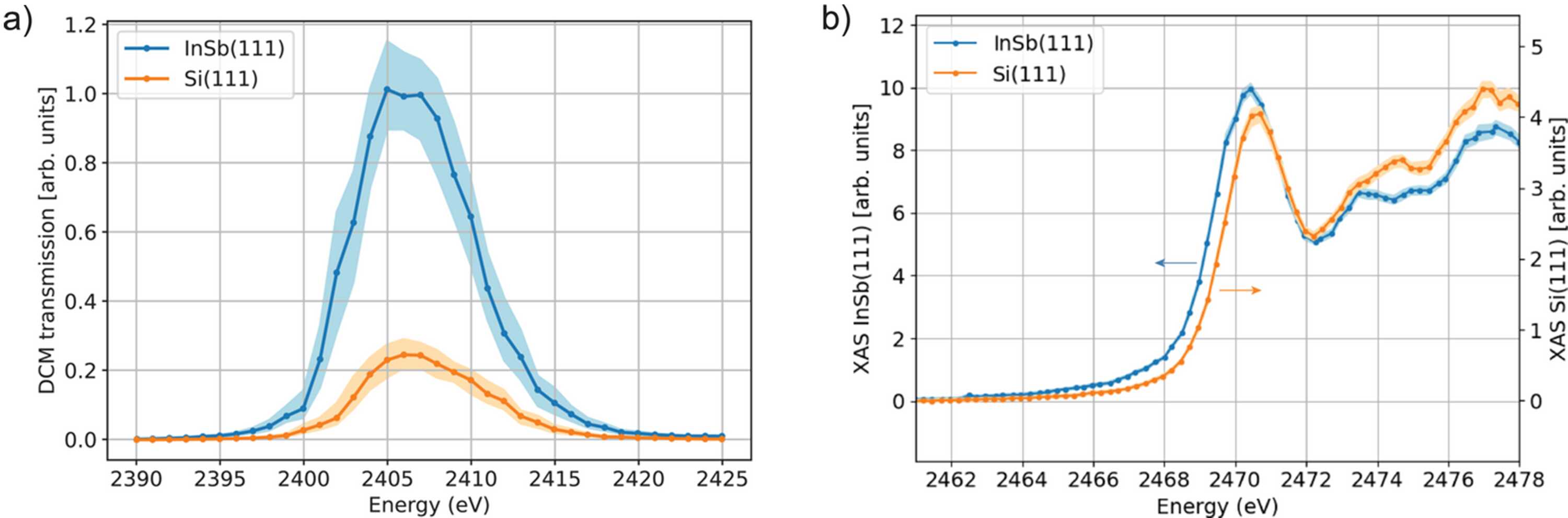

(a) Averaged SASE spectrum measured after the DCM aligned with Si(111) (orange solid line) and InSb(111) (blue solid line) crystal pairs, showing the fourfold increased transmission. (b) XANES ground state spectra of the reference sample sodium thiosulfate (Na2S2O3) measured at the sulfur K-edge: the use of the lower resolution InSb(111) crystal pair broadens by about 20% some of the spectroscopic features.
