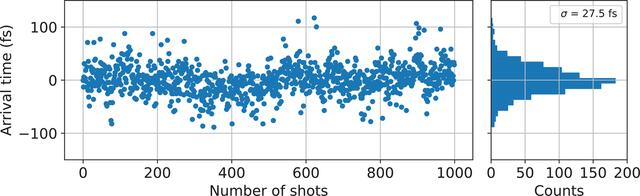

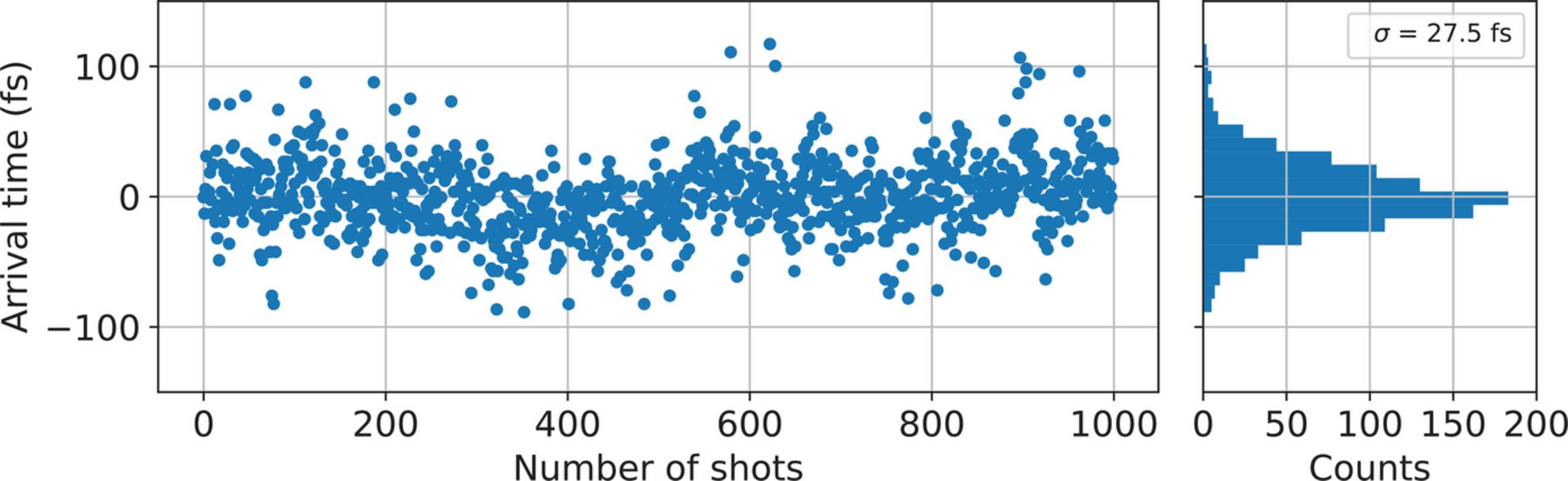

Figure 5
Arrival time jitter between the optical laser and 12 keV XFEL photon pulses as measured on a 20 µm YAG target by the downstream spectral encoder time tool. An ensemble of 1000 shots shows a normal distribution with standard deviation σ ≃ 30 fs.
