Figure 5

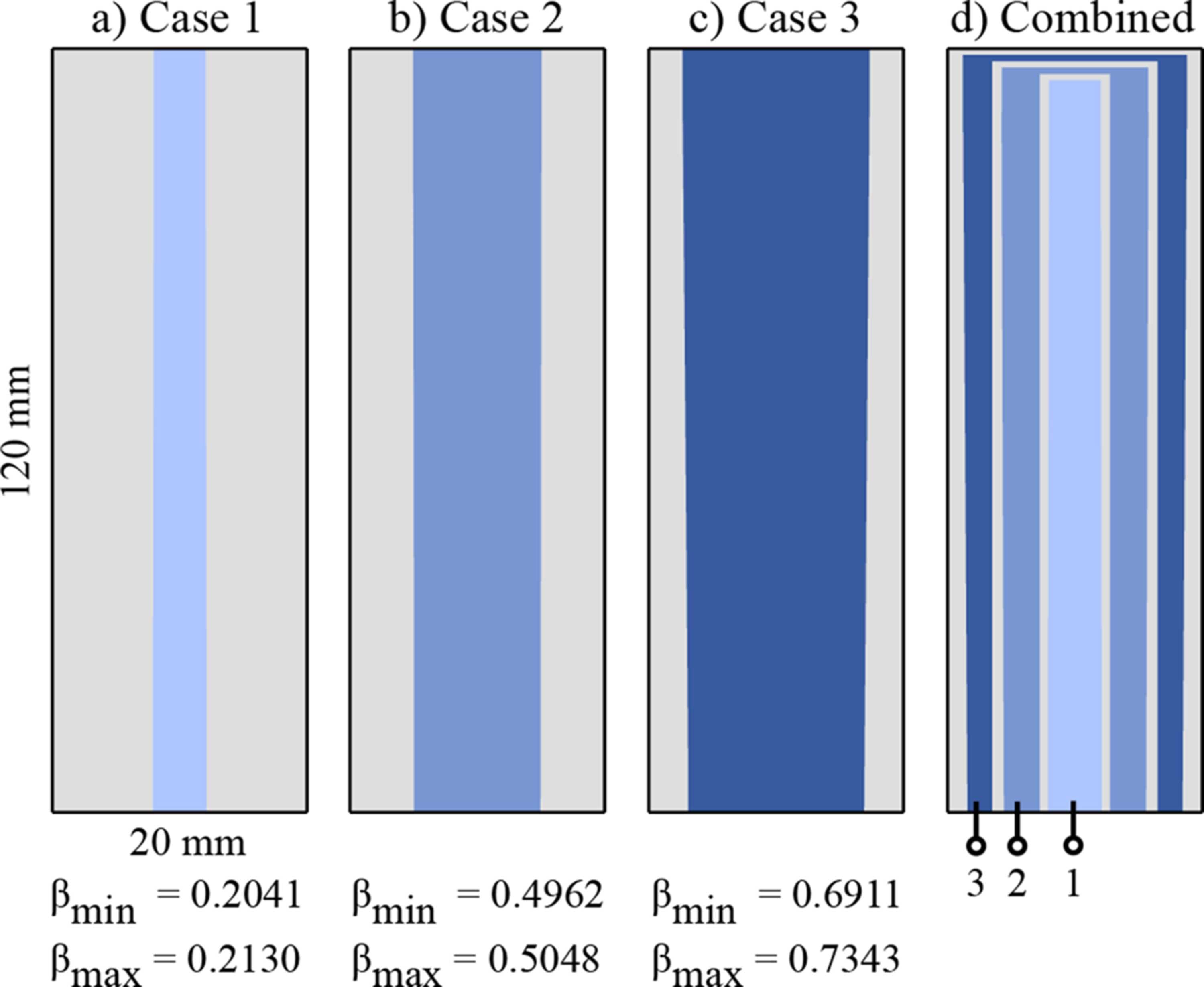

Shaped electrode profiles for the three cases are shown as blue regions in (a), (b), and (c). The length dimension has been compressed for visualization. A compound electrode shown in (d) allows a single mirror to achieve three surface shapes by connecting the voltage to one, two, or all three electrodes.
