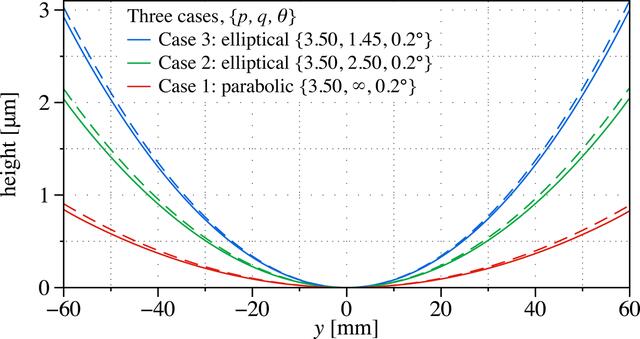

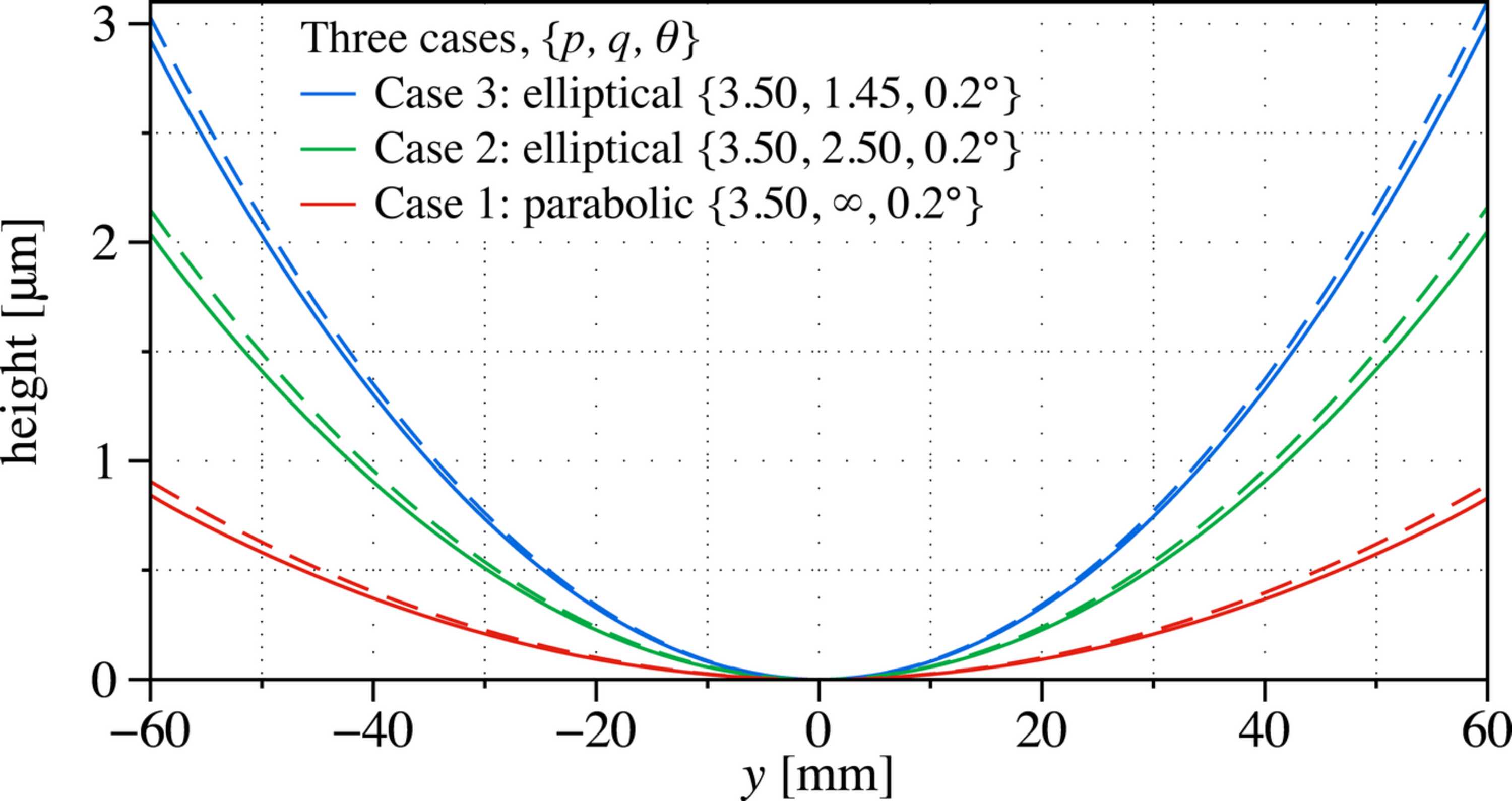

Figure 6
Surface height profiles extracted from the FEA models (solid lines) are compared with the target shapes, calculated analytically (dashed lines). The p and q distances are given in meters.
