Figure 3

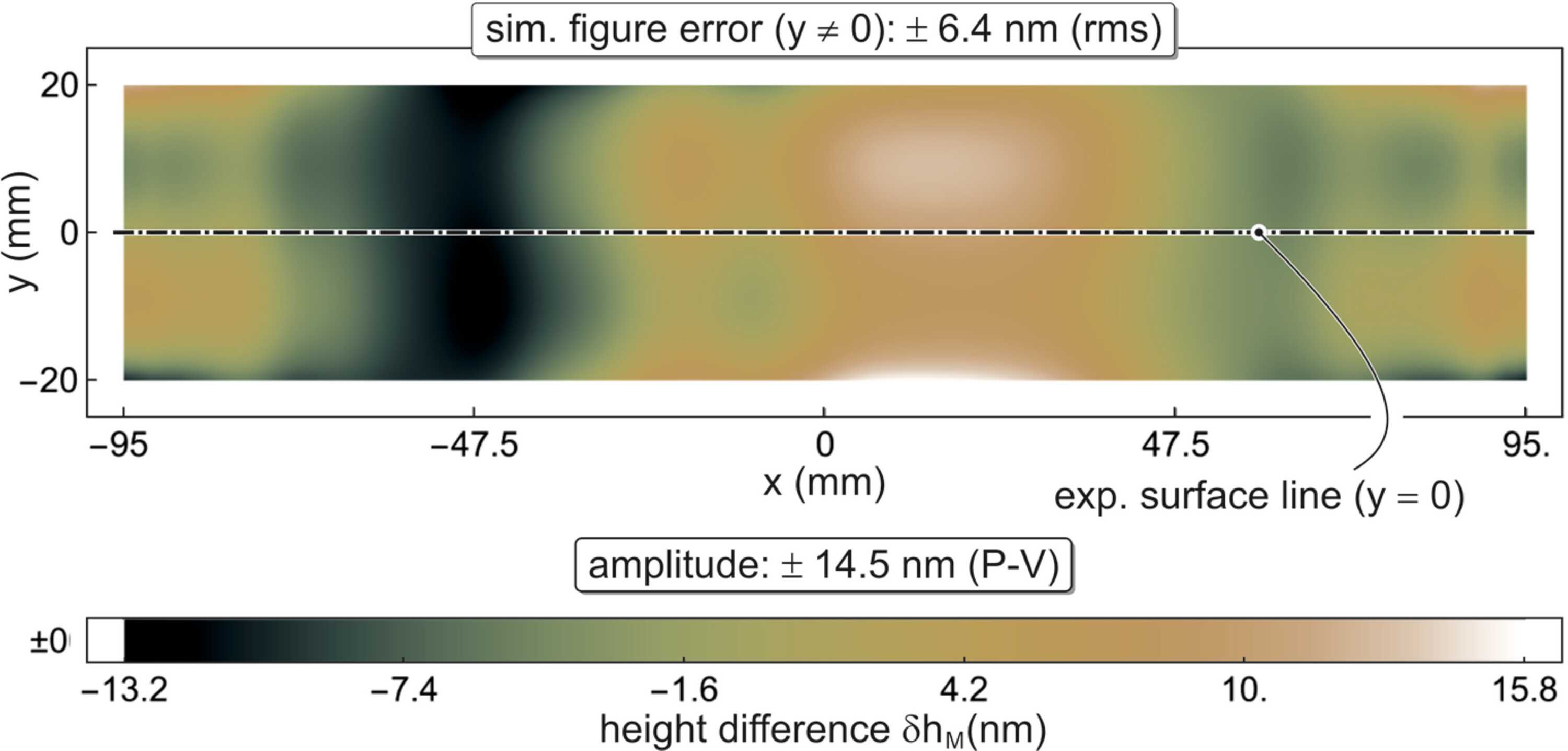

Simulated height deviation δhM(x, y) from the spherical form of the grating substrate at off-axis positions (y ≠ 0), as an extension of the experimental on-axis (y = 0) surface line (Fig. 2[link]). The typical amplitude of ±6.44 nm (r.m.s.) corresponds to a peak-to-valley (P-V) range of ±14.5 nm.
