Figure 4

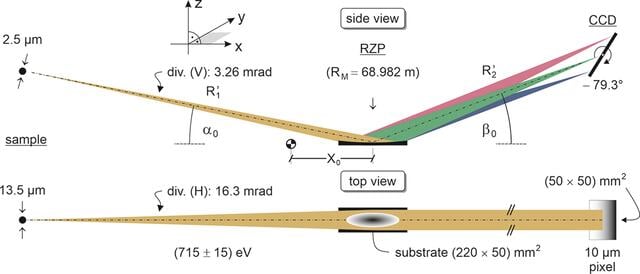

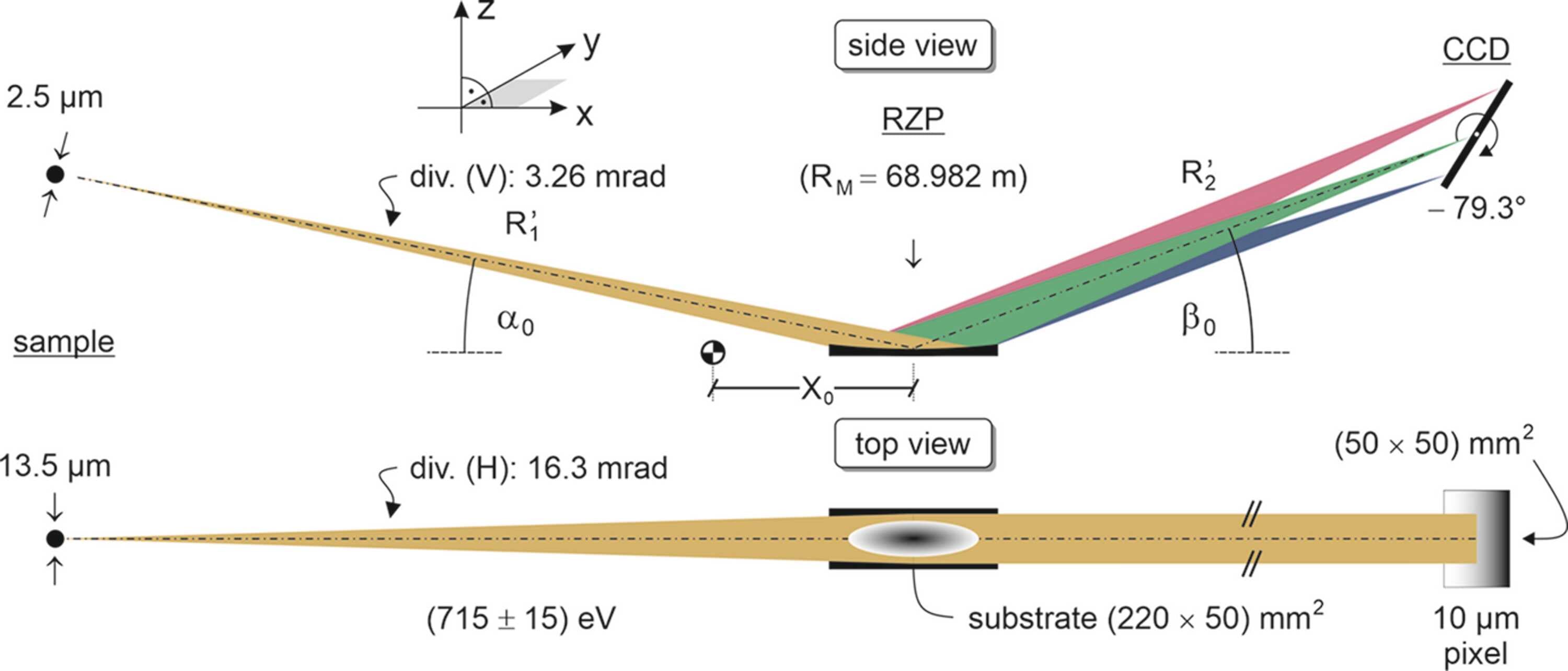

Schematic of the spectrometer. The divergent emission from the point-like source (sample) is captured by the RZP, which combines `point to collimated line' focusing and dispersion on the CCD (or CMOS) camera. The design parameters are partially adopted from Pietzsch et al. (2018View full citation).
