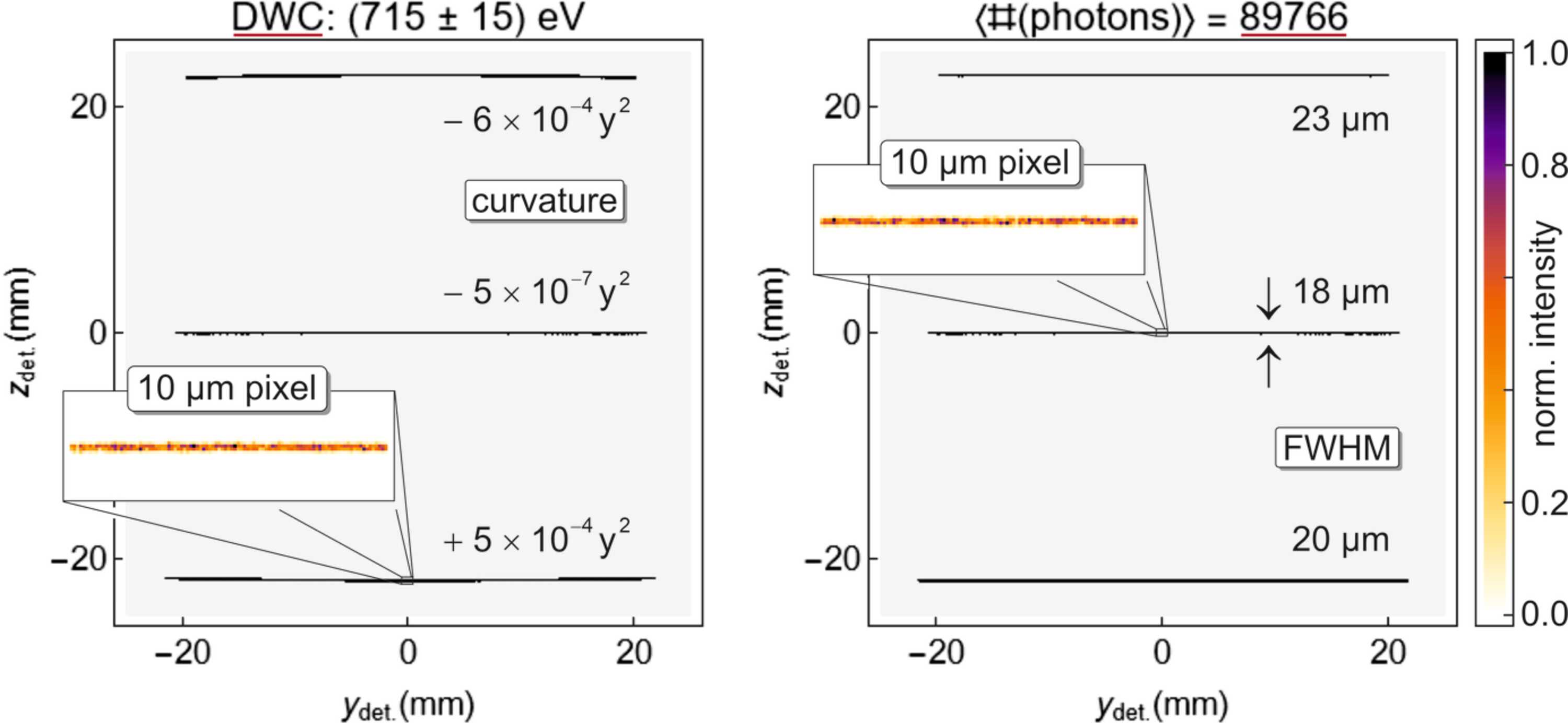

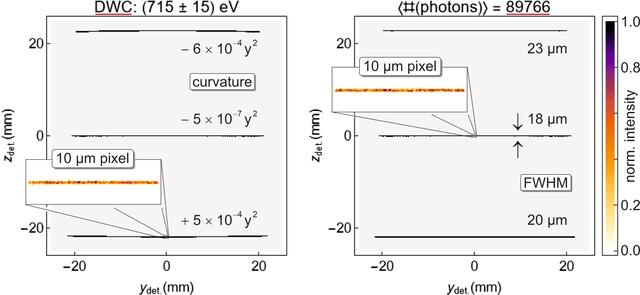

Figure 6
Detector view of a simulated spectrum, using the DWC. The weak focal line curvature at off-design energies (left) is corrected, and all photons in the (+1)st order are captured by the camera (right). The FWHM is given in µm. Cut-outs show zoom views on the 10 µm pixel scale.
