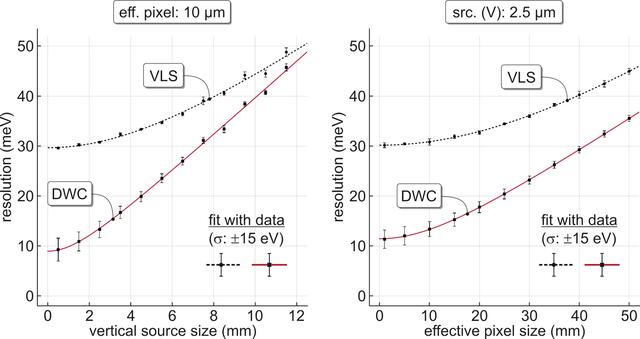

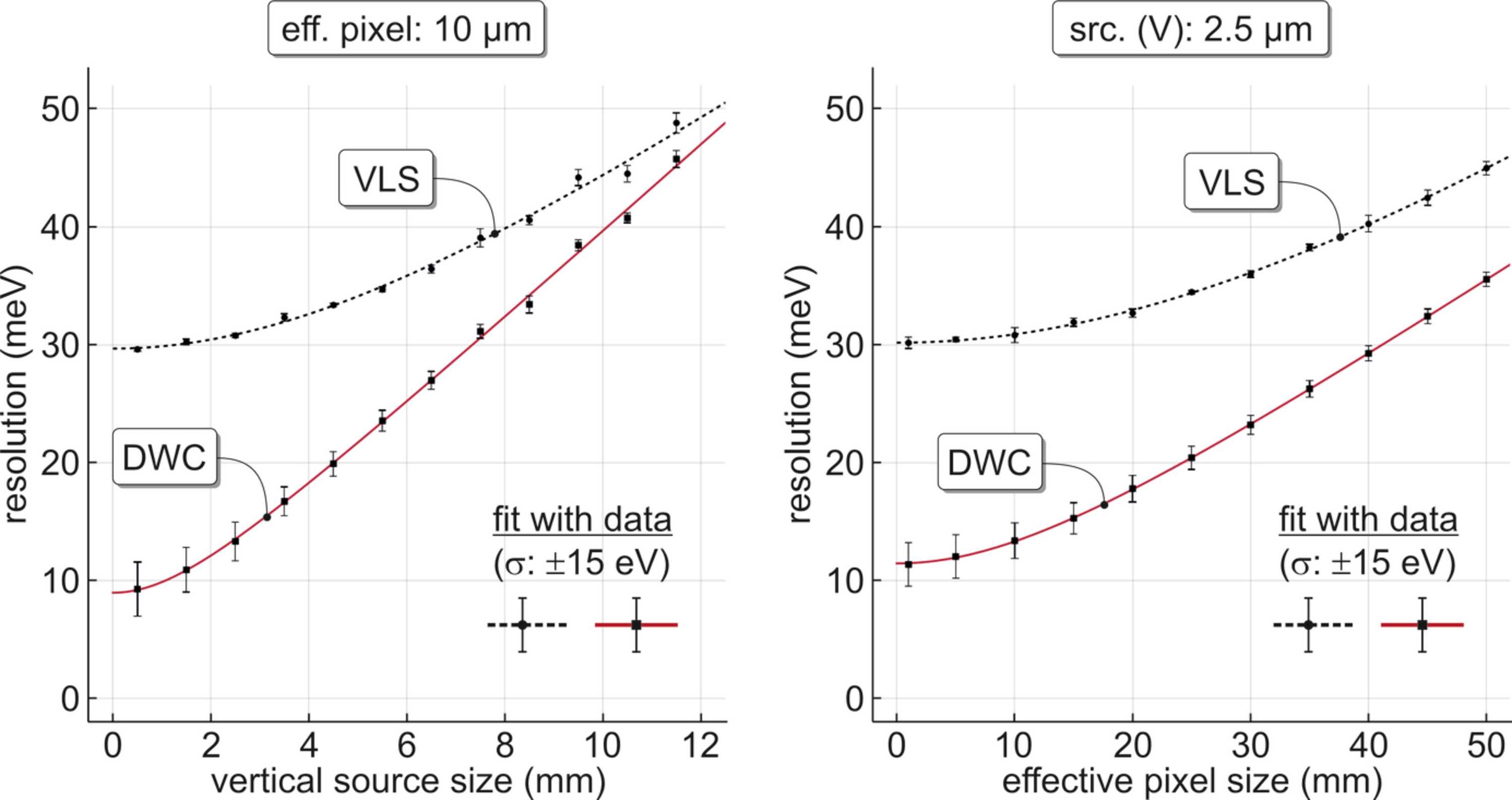

Figure 7
Energy resolution as a function of the source size (V) for fixed effective pixels at 10 µm (left) and in dependence on the effective pixel size for the nominal source diameter (right). Simulated data for the uncorrected VLS grating and the DWC are fitted by the same model (dashed black and red solid lines), as described in the text. Error bars refer to the variation (σ) within (715 ± 15) eV.
