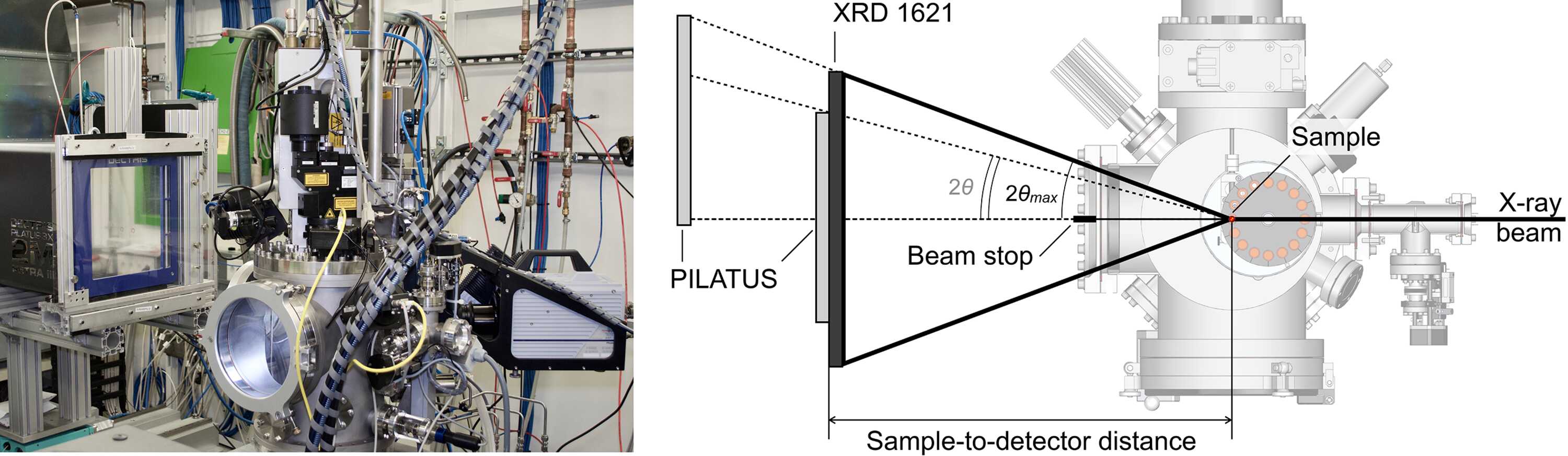

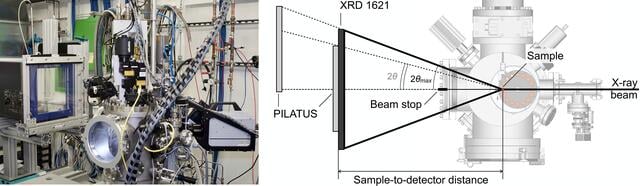

Figure 3
The mobile EML facility and PILATUS3 X CdTe 2M detector mounted at the P07 beamline at DESY (left). Symmetrical and off-center positions of the area detector used in transmission diffraction geometry for XRD measurements on levitated samples (right). Vertical dimensions of the sensitive areas of the PILATUS and XRD 1621 area detectors are depicted to scale.
