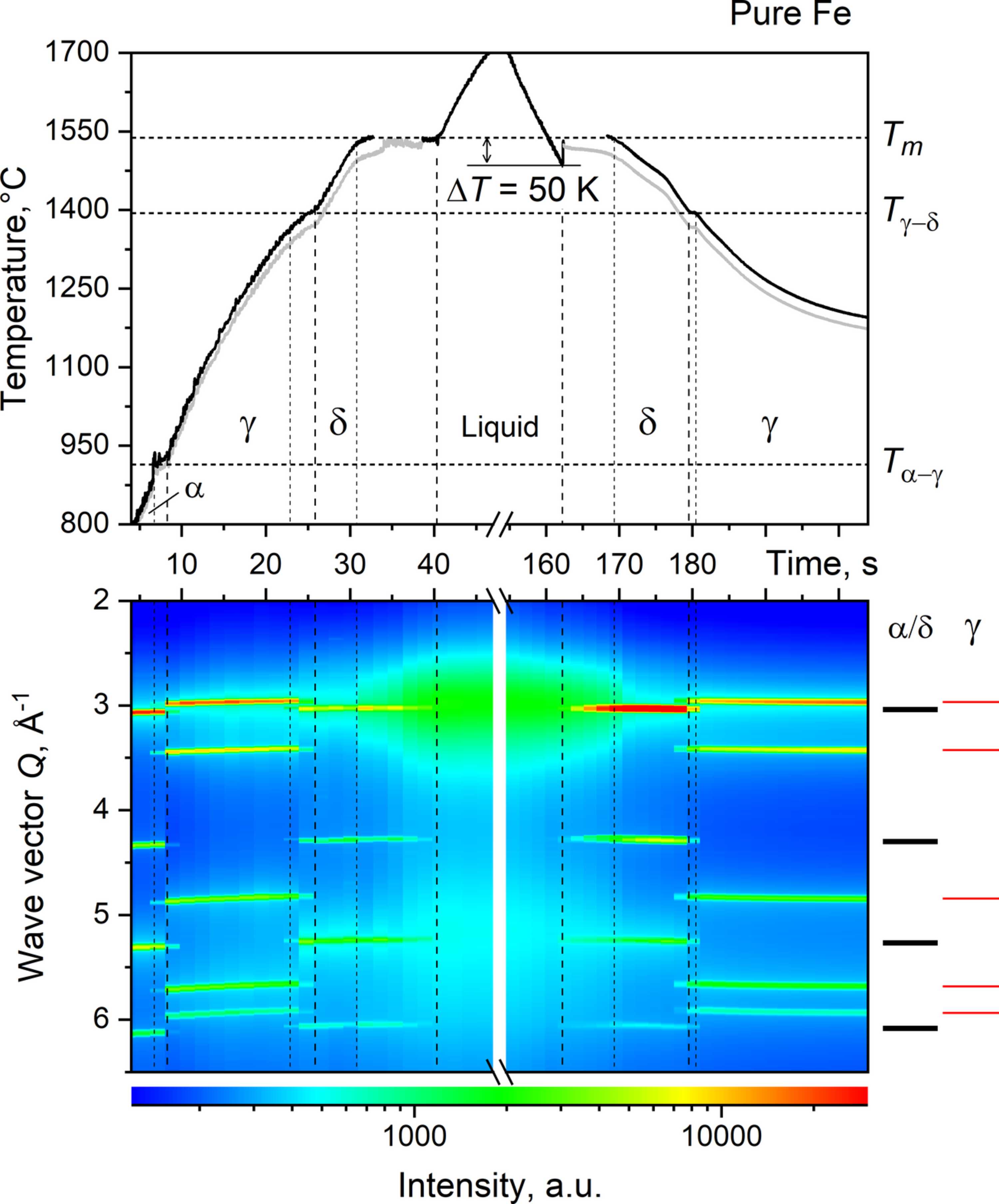

Figure 6
Structure evolution of elemental Fe processed with mobile EML: the intensity contour plot (bottom) of the integrated diffraction patterns measured at 1 Hz by the PILATUS detector, synchronized in time with the temperature profile recorded by the pyrometer (top). The true temperature (black line) is calibrated at Tγ–δ and Tm for the solid and liquid phases, respectively. The extrapolation of Tm calibration into the solid region (gray line) highlights the importance of phase-specific temperature calibrations for the solid sample.
