Figure 2

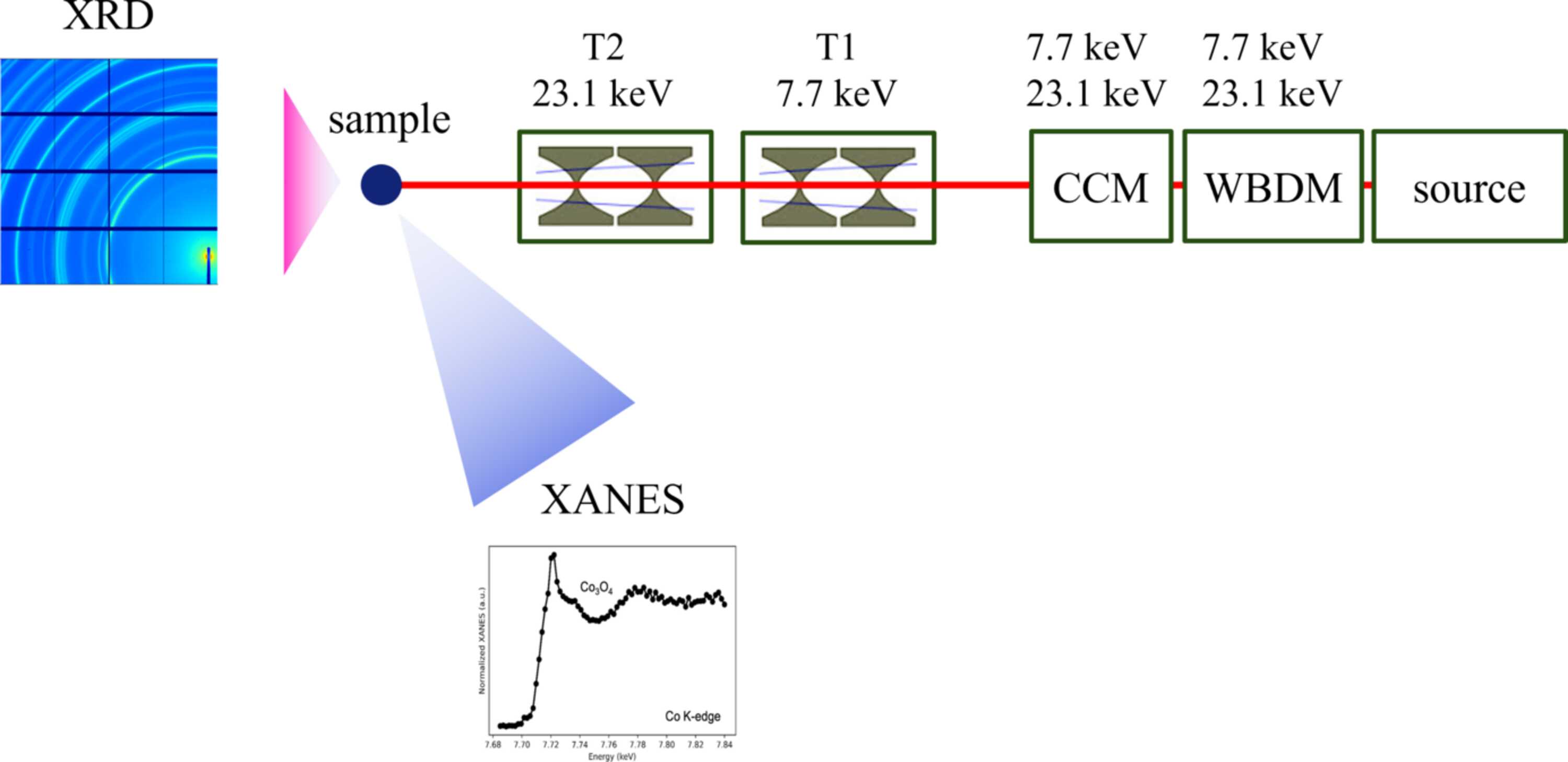

Quasi-simultaneous XRD and XANES measurements layout using two transfocators. It includes a white-beam double mirror (WBDM) for higher harmonic rejection and a channel-cut Si monochromator (CCM) for energy selection. Two transfocators, T1 (OH1 transfocator) and T2 (OH2 transfocator), are used to dynamically focus and shape the beam at different energies. The precise positions of the two transfocators along the beamline are illustrated in Fig. 1[link]. The XRD signal is collected by a detector positioned in front of the sample, while the XANES signal is collected by the fluorescence detector, which is placed behind the sample at a 45° angle relative to the incident X-ray beam.
