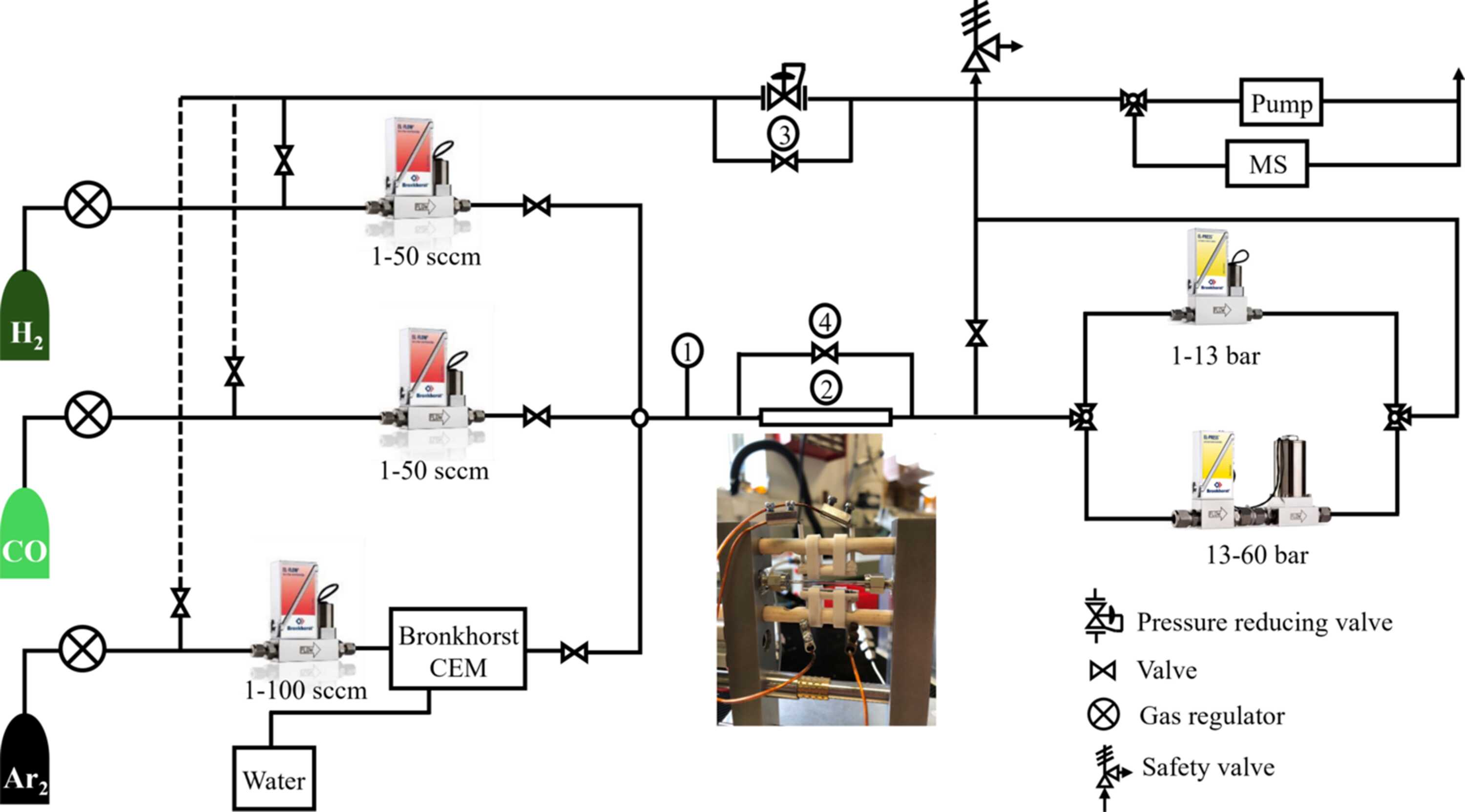

Figure 4
Detailed schematic of the gas panel setup. The system includes: (1) pressure manometer for monitoring the gas pressure; (2) reaction cell; (3) bypass-1; and (4) bypass-2. Gas flow is controlled using mass flow controllers: MFC-1 for H2, MFC-2 for CO, and MFC-3 for Ar. Pressure regulation is achieved using two stages: low-pressure control (1–13 bar) via pressure regulator-1 and high-pressure control (13–60 bar) via pressure regulator-2. This configuration allows precise control of gas composition, flow rates, and operating pressure during experiments.
