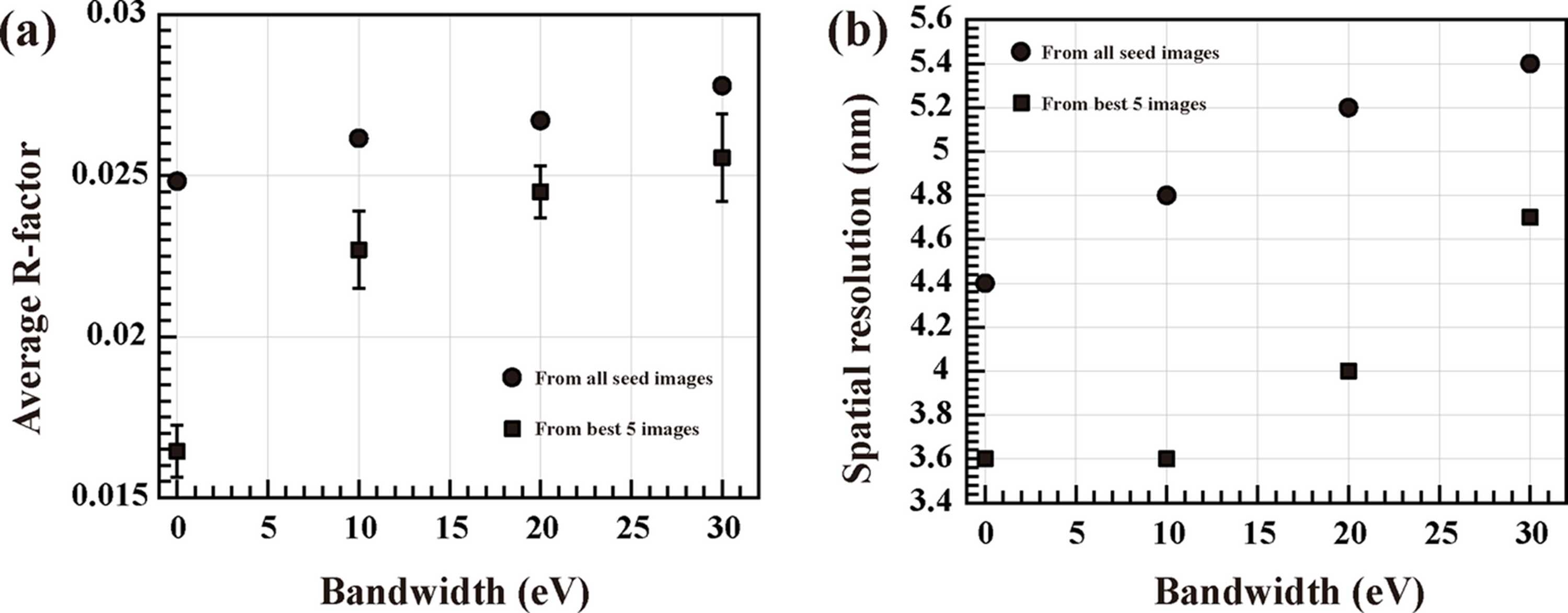

Figure 6
Numerical simulation results investigating the effect of temporal coherence as a function of energy bandwidth. (a) Average R-factor as a function of bandwidth for all seed images (circles) and the best five images (squares). The vertical error bars for the best five images represent the standard deviation of the pairwise R-factor values (ten combinations) computed among these five images. (b) Spatial resolution determined using the PRTF with a score of 0.5. The resolution limit of 3.6 nm is imposed by the detector size in this simulation. Both metrics show degradation in reconstruction quality with increasing bandwidth, highlighting the importance of narrow bandwidth for high-fidelity imaging. Error bars indicate the standard deviation.
