Figure 1

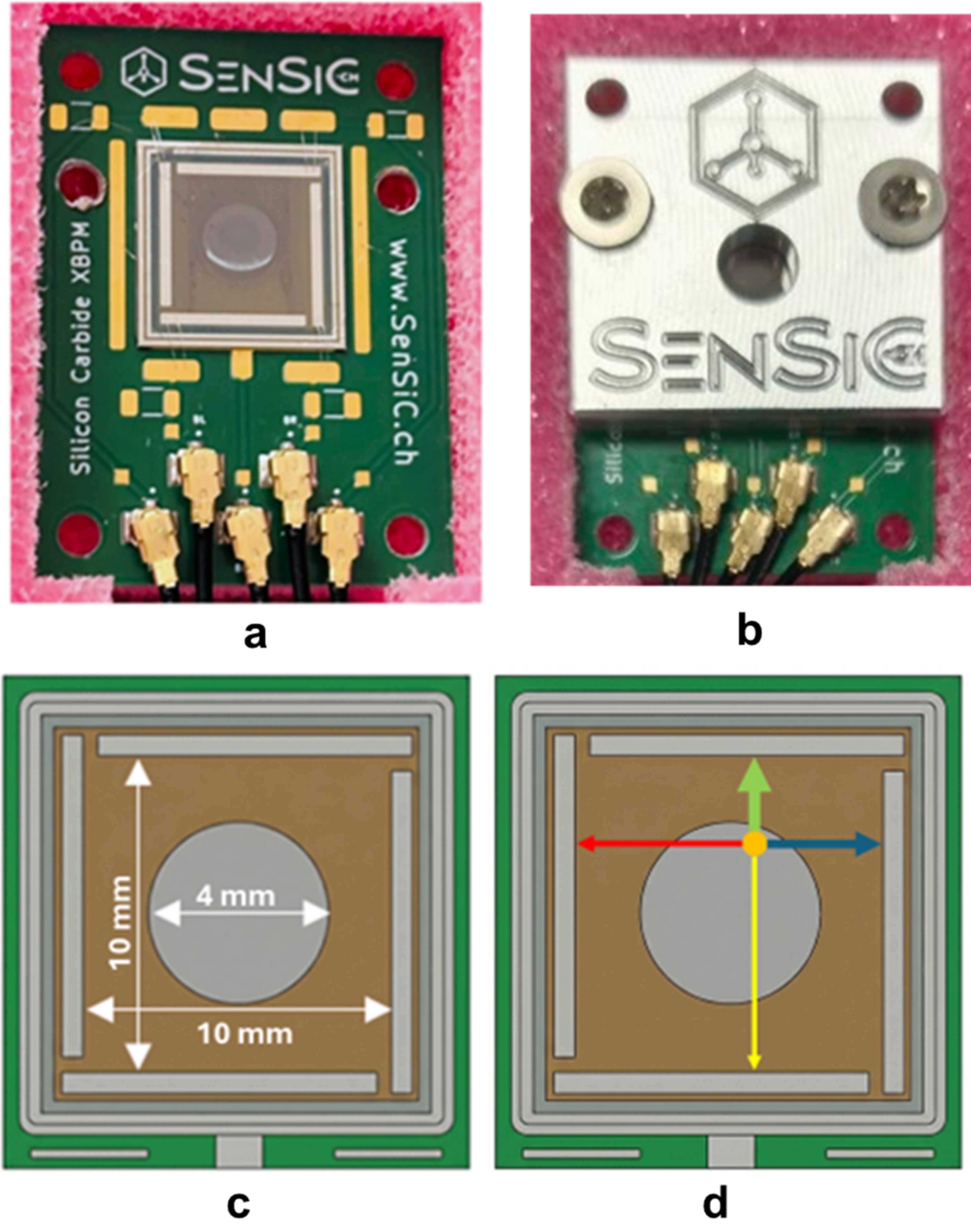

(a) Image of the SiC rXBPM and (b) of the protective cover of the device. (c) Schematic sketch of the rXBPM with its dimensions. (d) Schematic representation of the charge splitting among the four channels. The arrow is thicker the nearer the incidence point of the beam is to the metallic contact.
