Figure 10

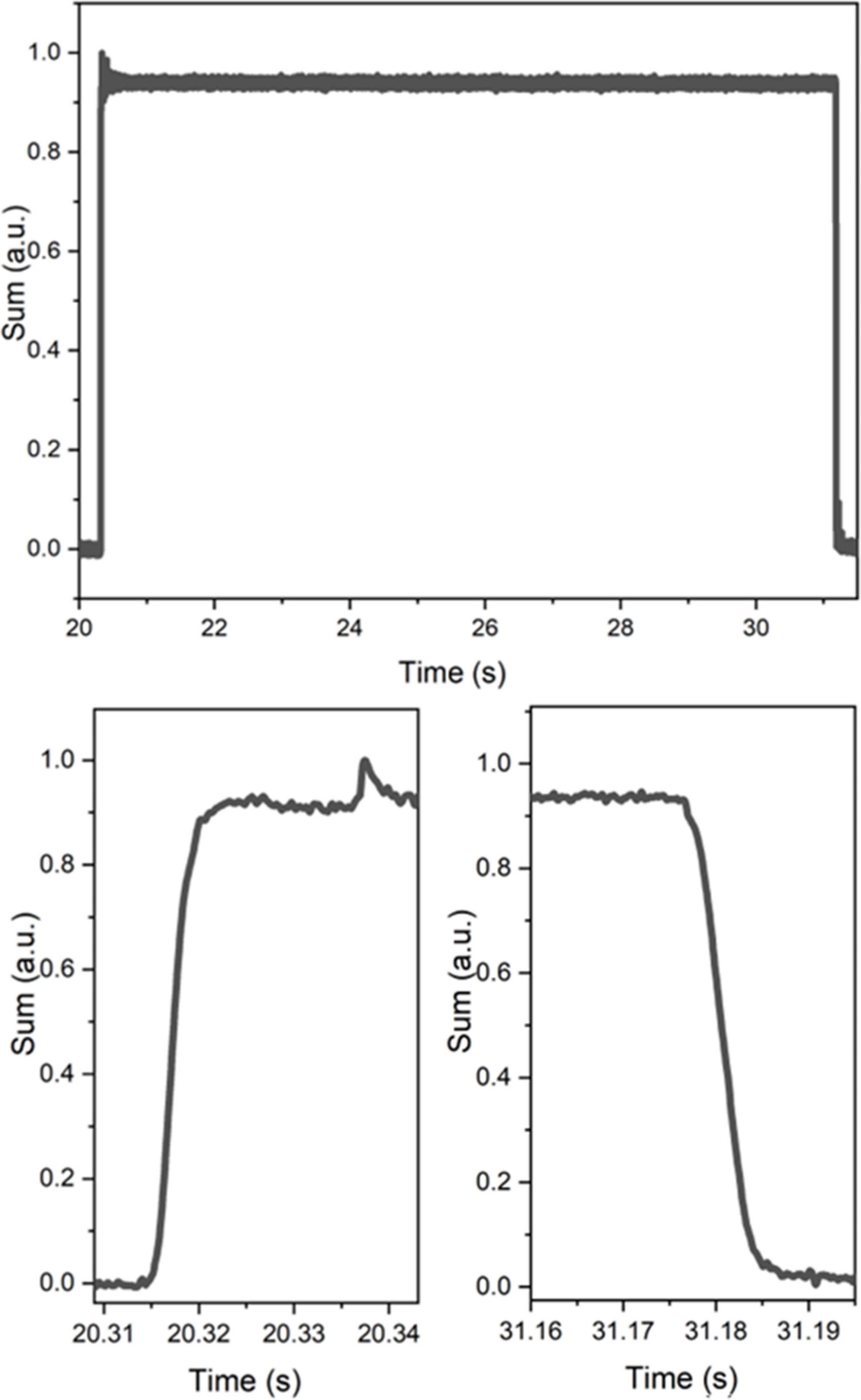

Temporal behavior of the SiC rXBPM recorded as the XOS X-ray tube shutter is opened and closed. The top graph is the normalized current sums from the four electrodes for the entire acquisition process, while the bottom graphs represent enlarged images of the rise and fall of the waveform, respectively. The rXBPM trace is directly tracking the light variation caused by the movement of the shutter on a millisecond timescale.
