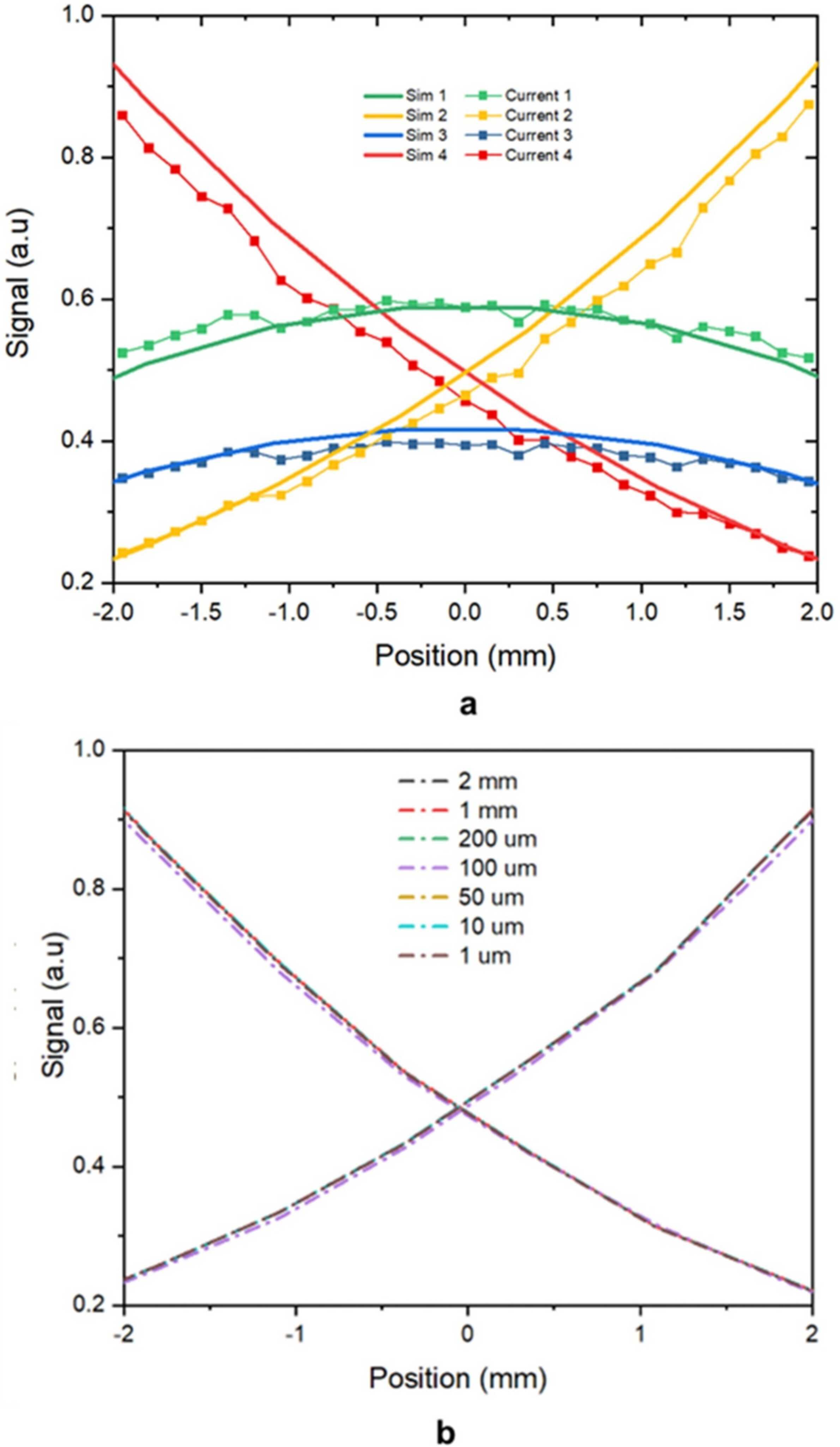

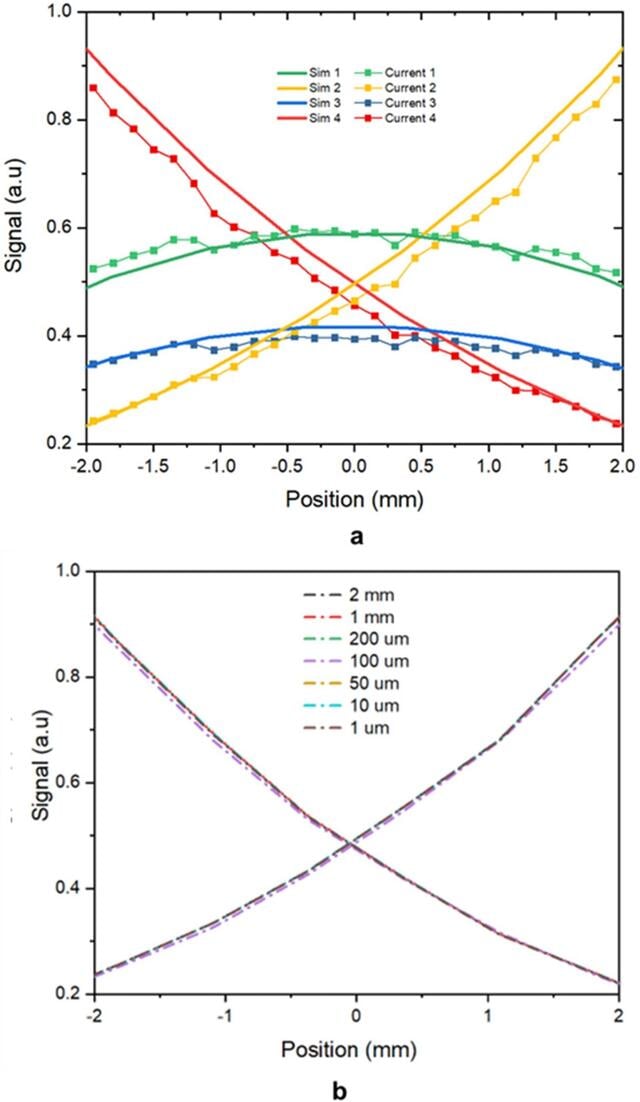

Figure 11
(a) Comparison between the experimental data (squares) and simulated results (solid lines) when irradiating the free-standing membrane. (b) Simulation repeated with different beam FWHMs, from 1 µm up to 2 mm.
