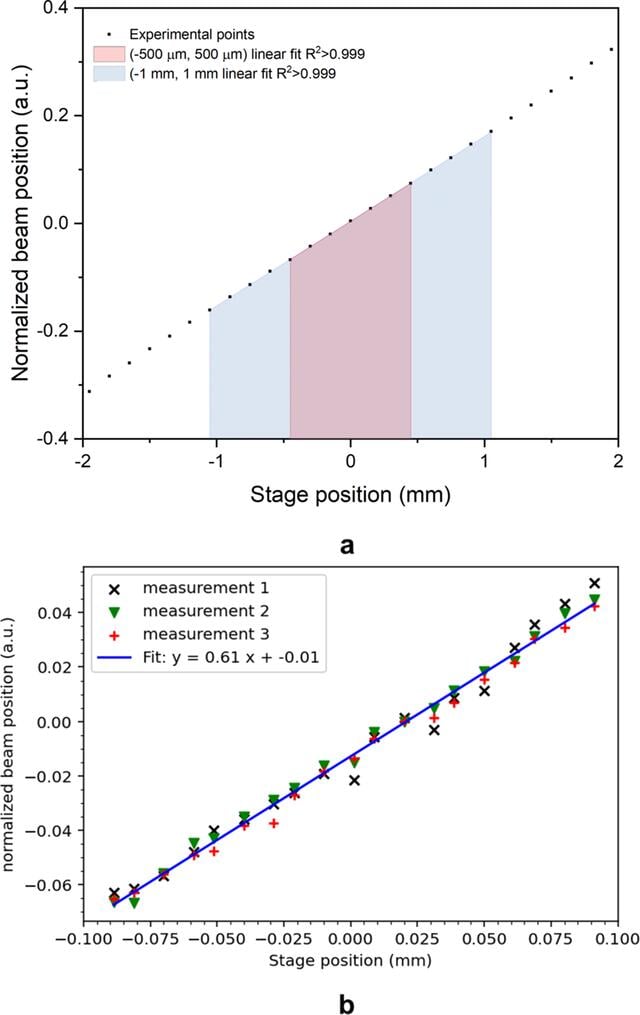

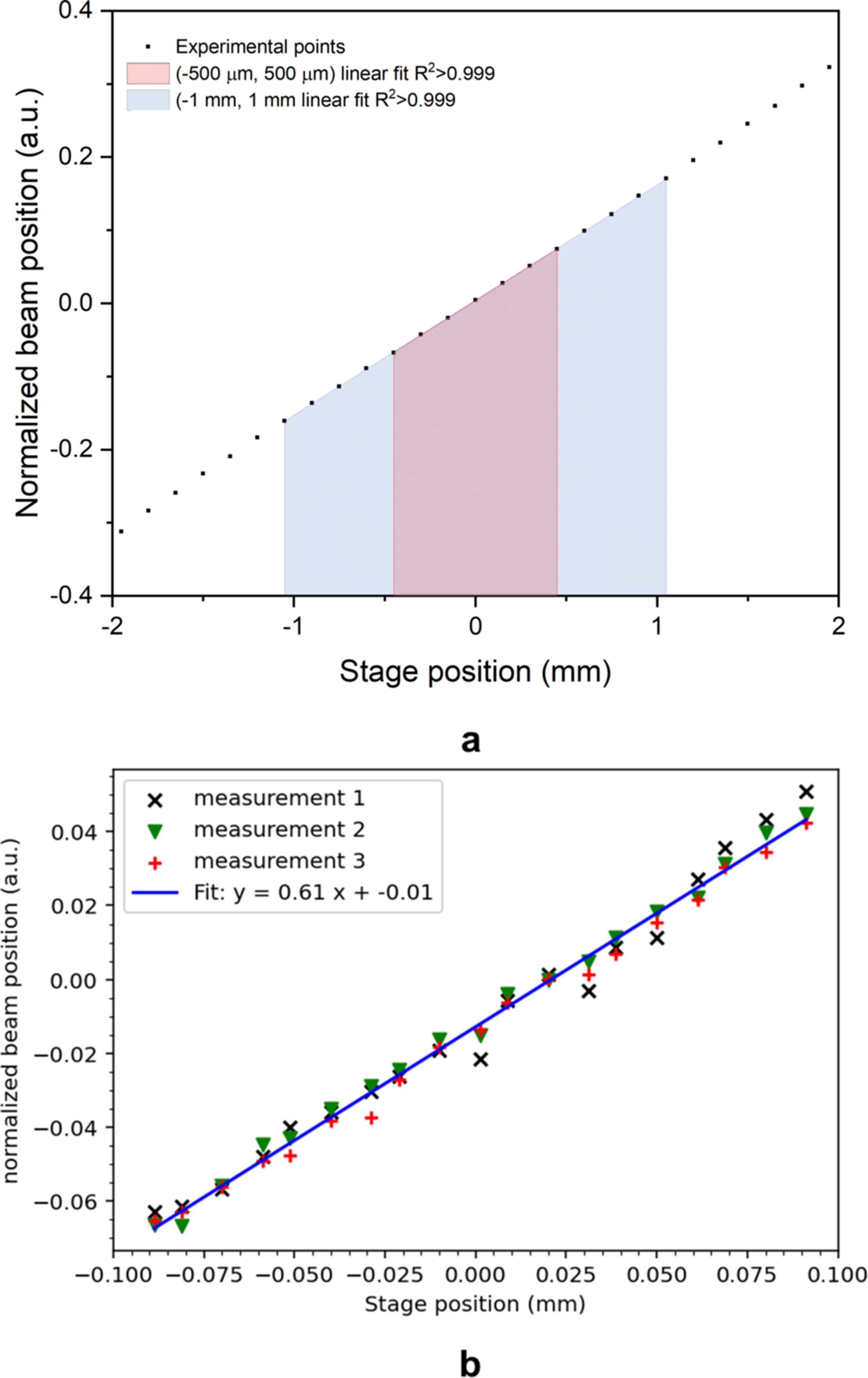

Figure 6
(a) Normalized beam position as a function of the motorized stage displacement measured with the SiC resistive X-ray beam position monitor. Black squares represent experimental data points. The shaded regions indicate the intervals used for linear regression: ±500 µm (red) and ±1 mm (blue). (b) Short-range measurements (±100 µm) of the normalized beam position with respect to the stage position.
