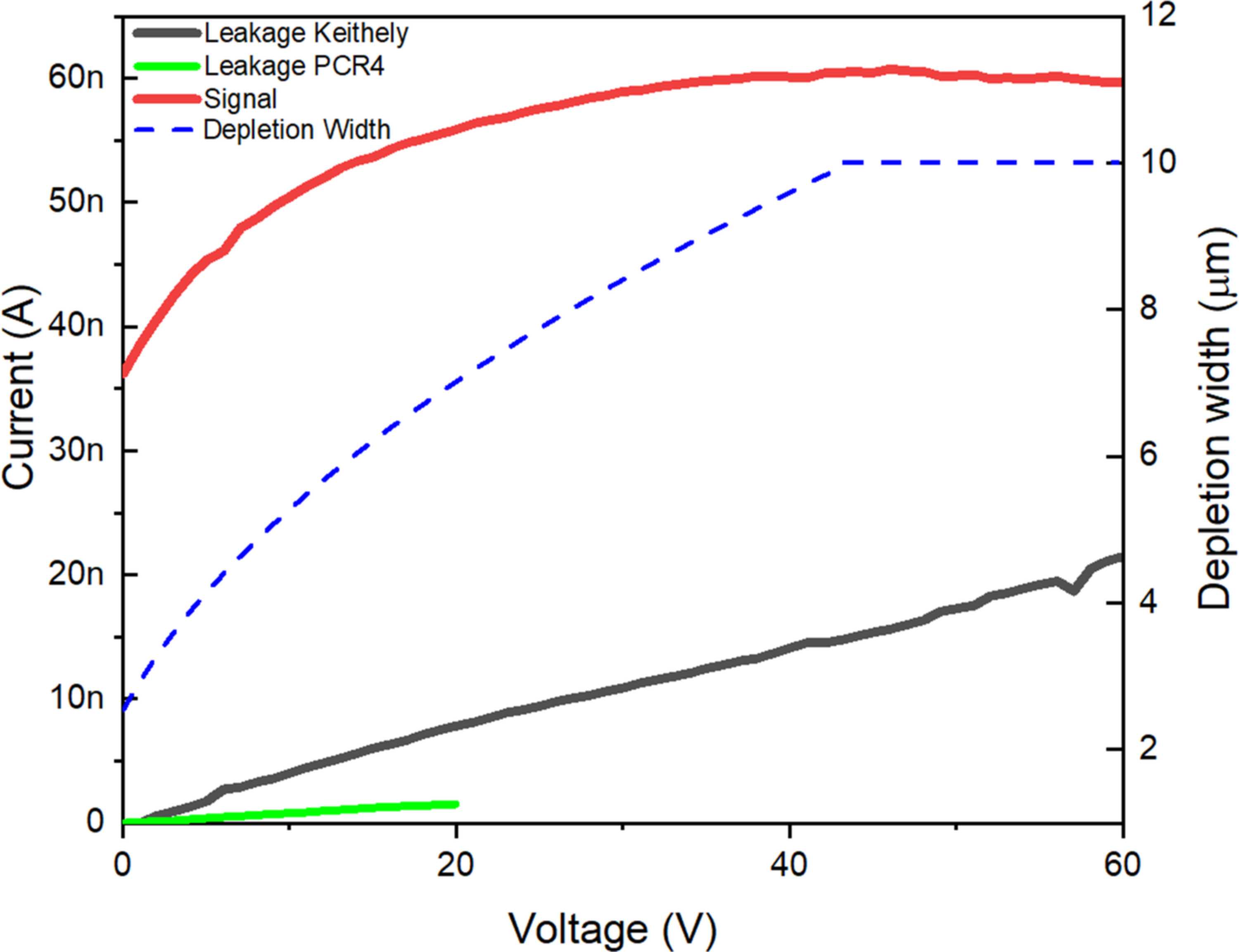

Figure 8
Current characteristics of the SenSiC rXBPM LEP polarized in reverse bias. The dark current of the diode is measured using the PCR4 picoammeter from 0 V to 20 V (green curve), and with the Keithley 2410 electrometer up to 60 V (black curve). The beam-induced current (red curve) is related to the theoretical depletion width (blue dashed curve) of the junction.
