Figure 2

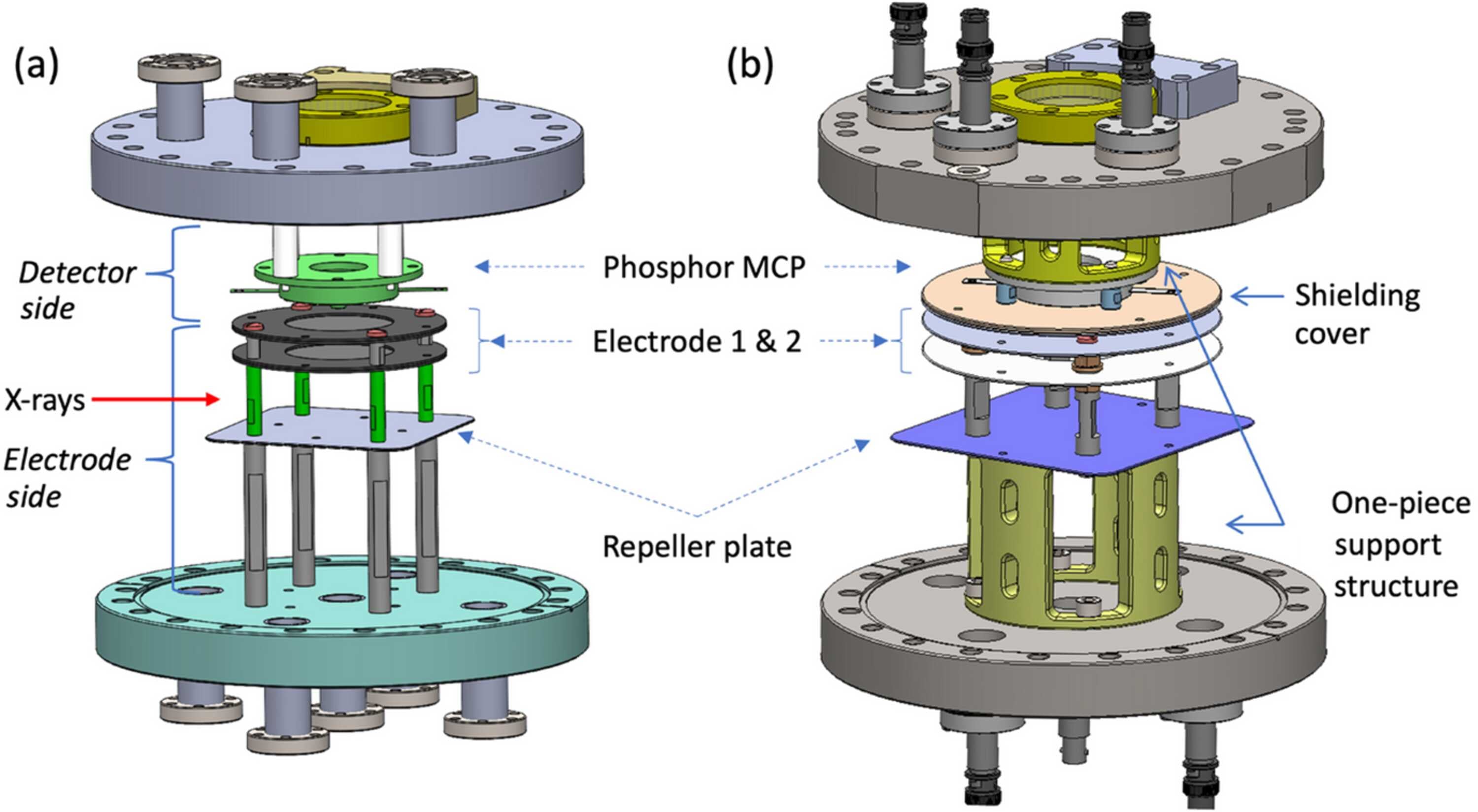

Schematic comparison of the (a) original and (b) redesigned XIBPM structures. The redesign includes the introduction of a shielding cover on the detector side, removal of mesh electrodes, modified electrode geometry on the electrode side, and replacement of the multi-post support structure with a one-piece block.
