Figure 3

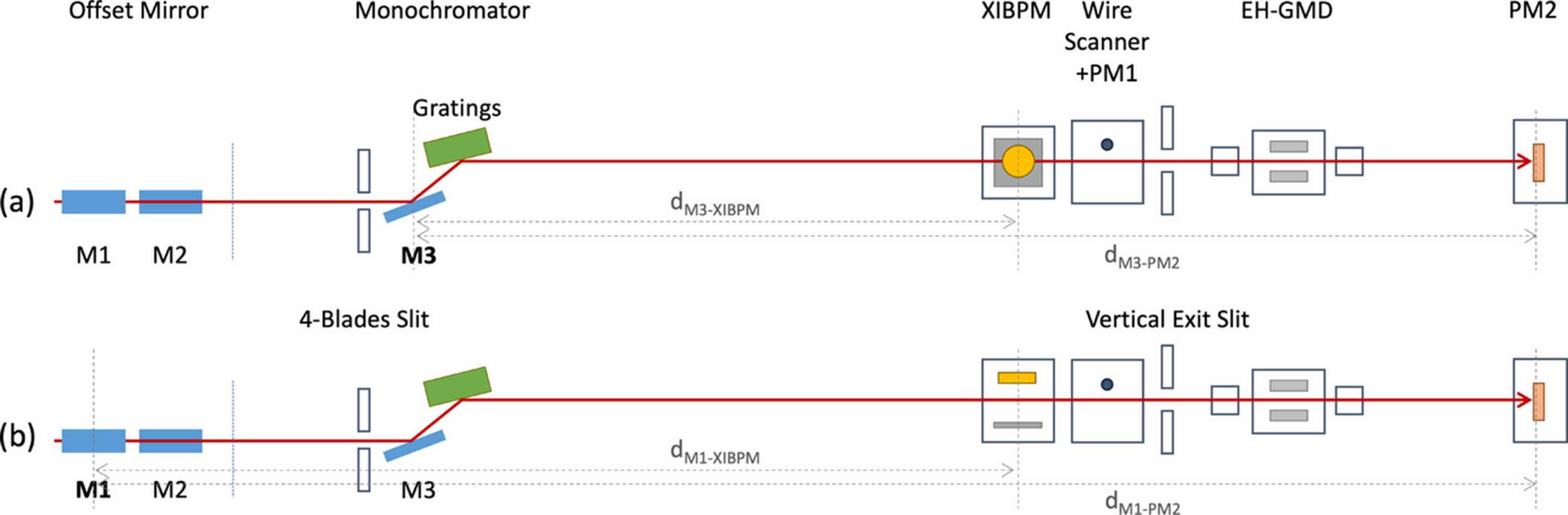

Experimental configurations for beam position measurements in a side view. (a) Vertical configuration using an M3 mirror scan and (b) horizontal configuration using M1 mirror scan. The known geometrical distances between the mirror, XIBPM and PM2 define the reference for quantitative evaluation of relative beam displacement. The XIBPM was positioned downstream of the monochromator and upstream of the wire scanner, with a 90° rotation applied depending on the measurement configuration.
