Figure 4

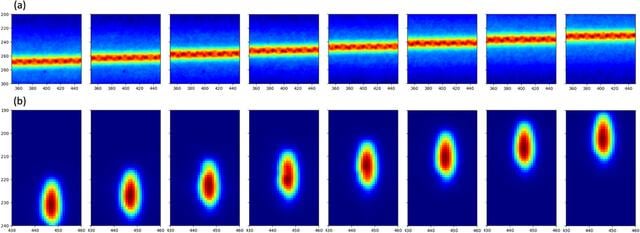

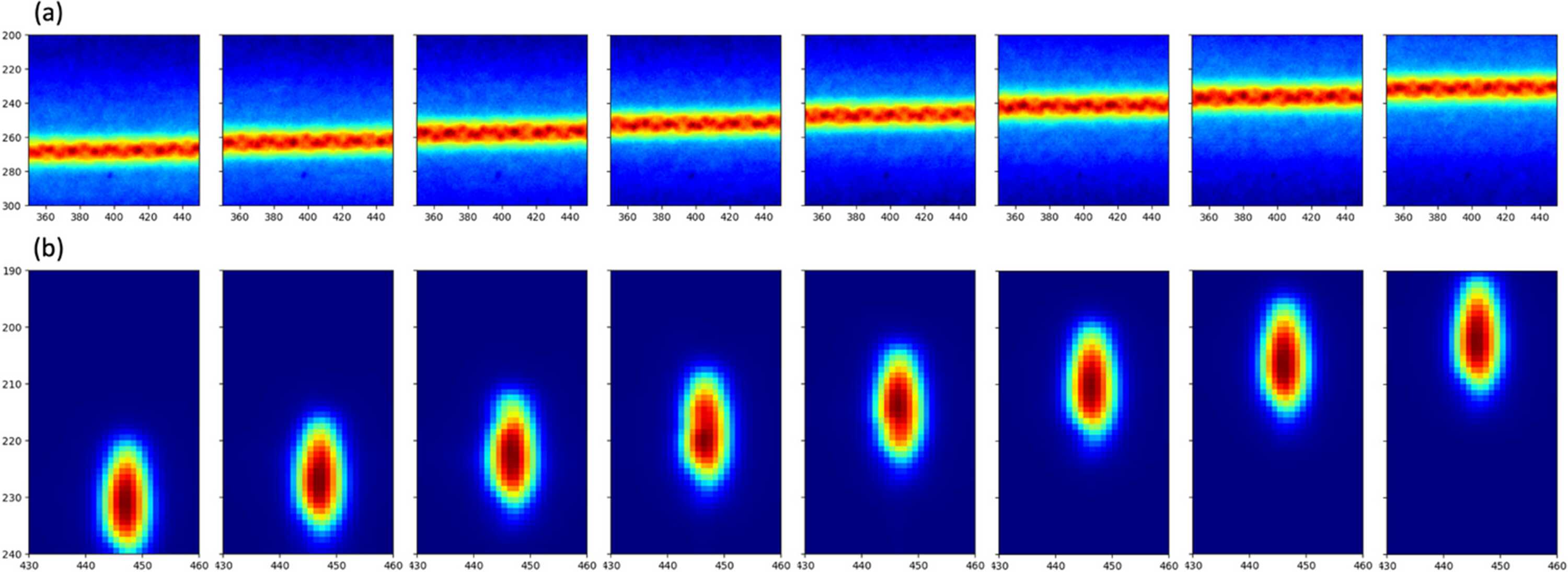

Representative two-dimensional images recorded during a vertical displacement scan at 900 eV in pink-beam mode. (a) Photo-ion images measured by the XIBPM and (b) corresponding beam images obtained from the PM2. The measurements were performed with a repeller voltage of +3000 V and an MCP gain voltage of −1600 V, with the shielding cover applied. The image sequences demonstrate the systematic displacement of the beam position induced by mirror motion.
