Figure 6

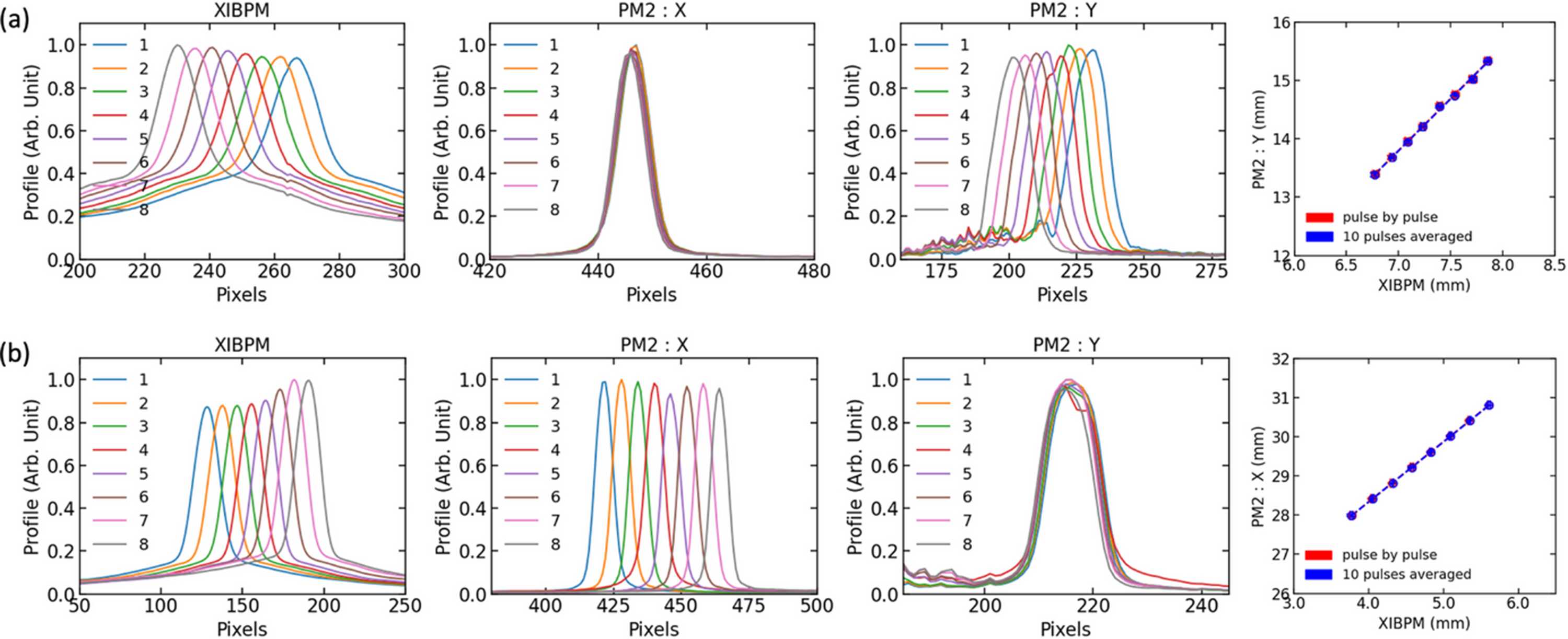

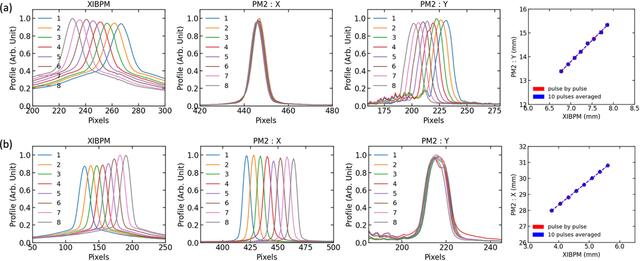

Representative examples illustrating the displacement analysis procedure for the XIBPM. (a) Vertical displacement configuration and (b) horizontal displacement configuration measured at 900 eV in pink-beam mode with a repeller voltage of +3000 V and an MCP gain voltage of −1600 V under the shielding cover applied. The beam positions were extracted from the XIBPM and PM2 profiles and compared through linear fitting. Consistent correlations are observed for pulse-by-pulse data and data averaged over ten pulses. The slopes obtained from the linear fits are compared with the expected geometrical distance ratios to derive the relative displacement error.
