Figure 8

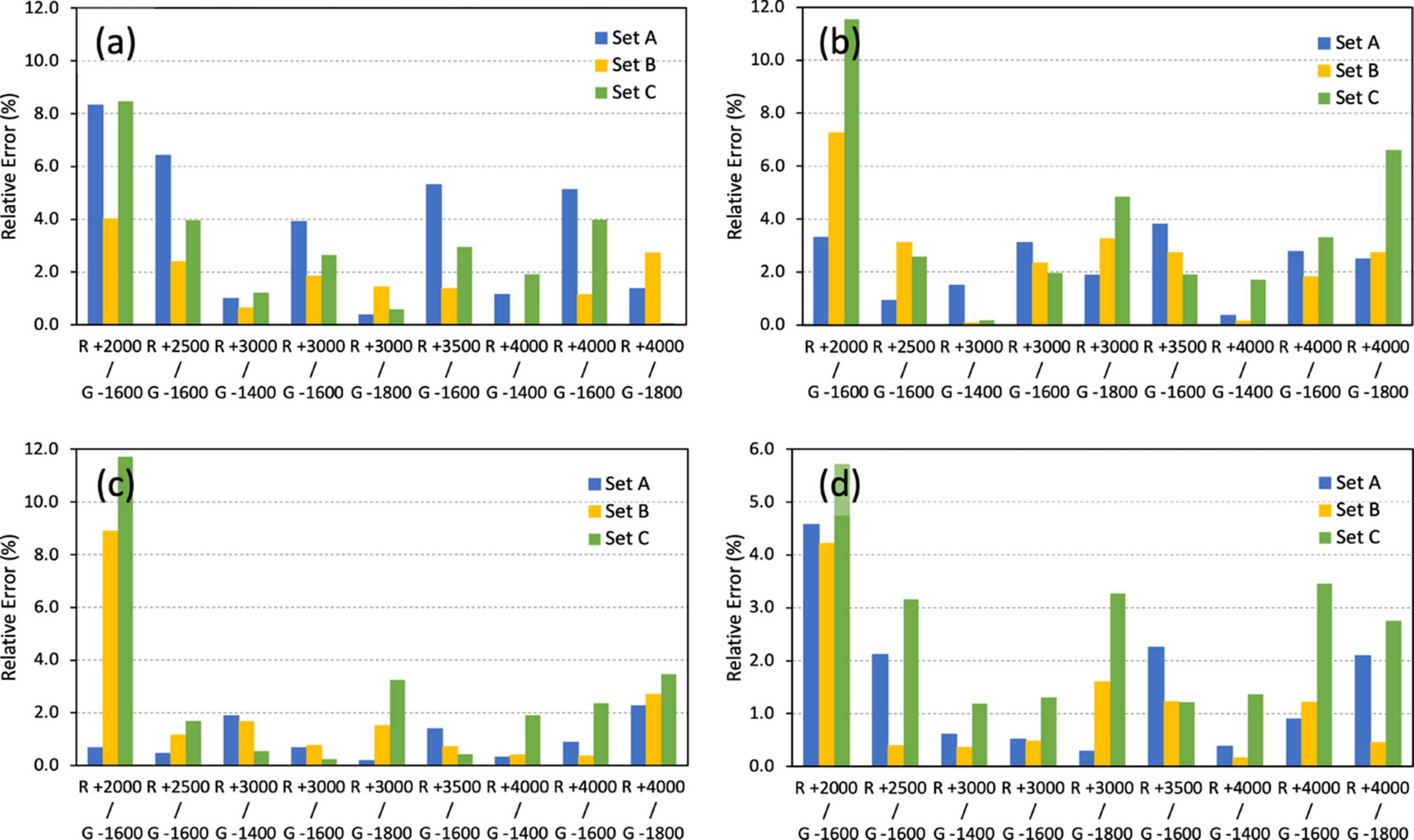

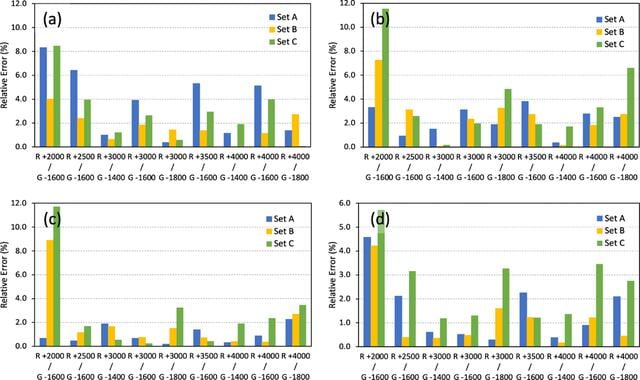

Relative percentage displacement errors measured in mono-beam mode based on data averaged over ten pulses at photon energies of (a) 500 eV, (b) 700 eV, (c) 900 eV and (d) 1100 eV for different voltage configurations: Set A, original configuration; Set B, electrodes 1 and 2 floating; Set C, simulation-derived configuration with near-unity magnification. Compared with pink-beam operation, saturation effects are reduced, allowing a more reliable comparison of voltage-configuration dependence. No single voltage configuration consistently outperforms the others across all photon energies. The results are based on the average of every ten pulses.
