Figure 2

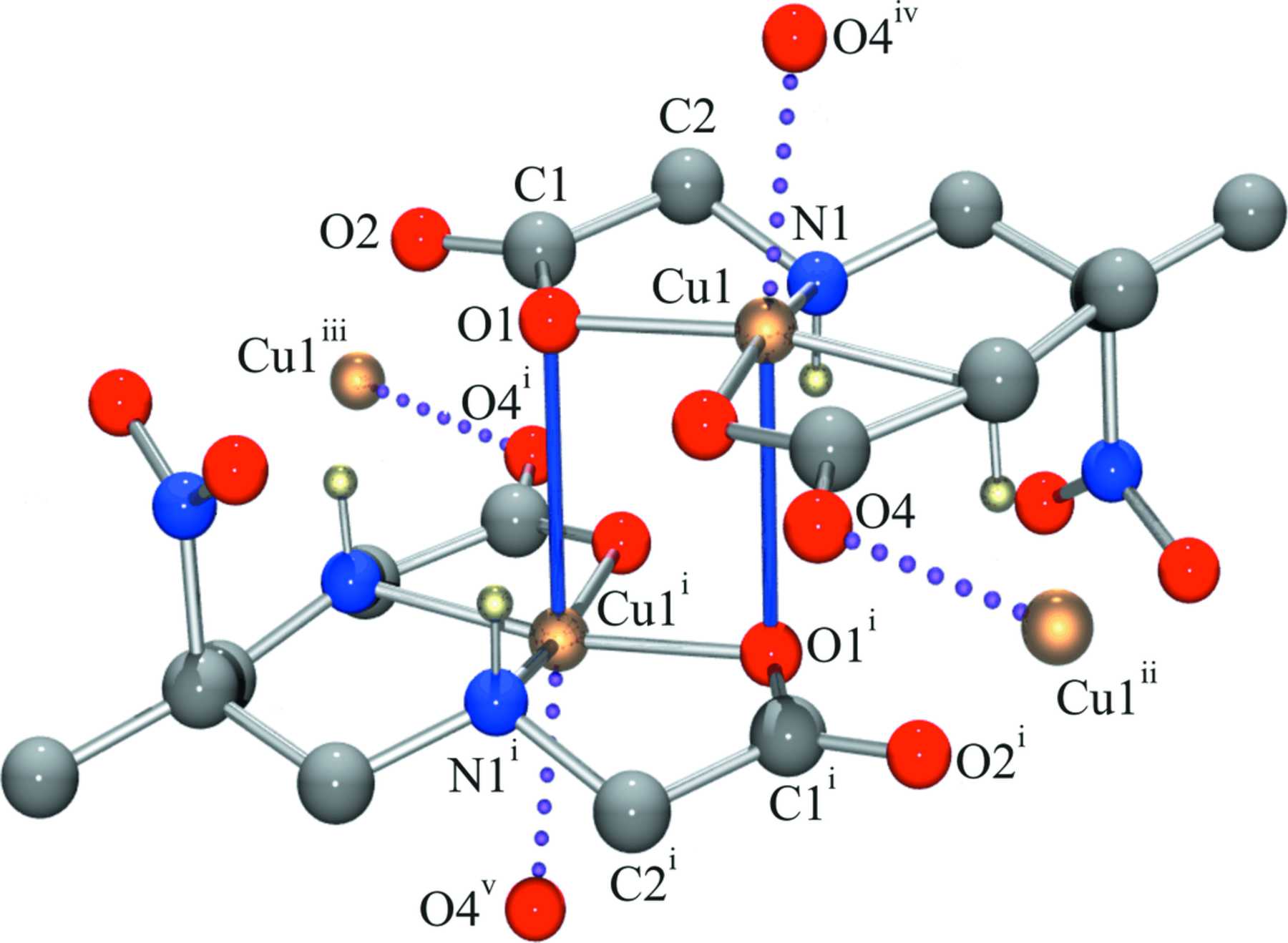

Ball-and-cylinder representation of the Ci-symmetry dimer that forms the repeat unit of the two-dimensional coordination polymer, or MOF structure, in water/methanol solvate (II). Bonds to atoms that lead to extension of the two-dimensional array are shown as dotted lines. H atoms (except those attached to N atoms) and solvent molecules have been omitted for clarity. [Symmetry codes: (i) 1 − x, 1 − y, −z; (ii) − x, + y, − z; (iii) − + x, − y, − + z; (iv) − x, − + y, − z; (v) − + x, − y, − + z.] |
