Figure 3

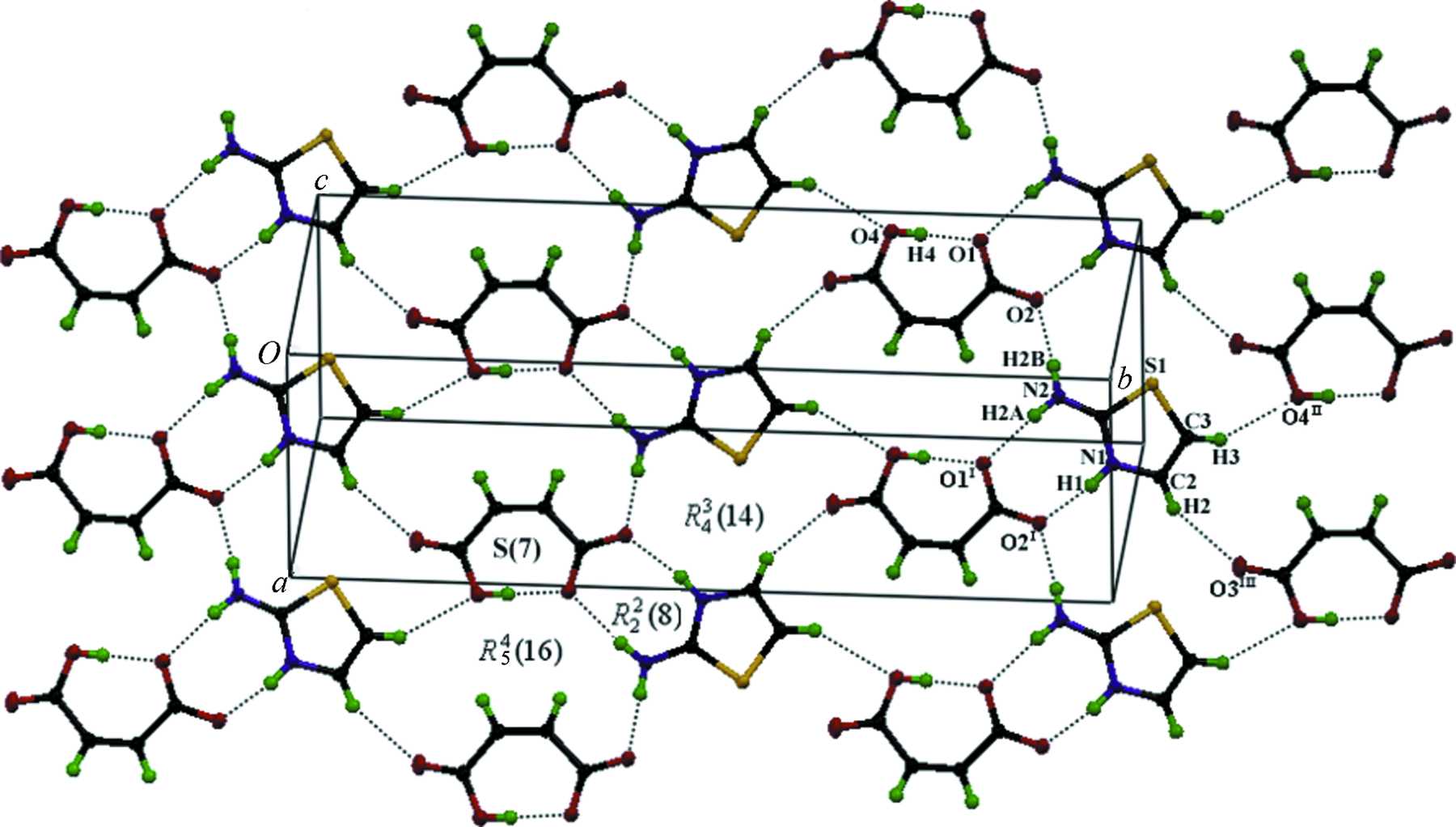

Part of the crystal structure of 2ATHM, showing the formation of the hydrogen-bonded sheet parallel to the ab plane built from R22(8), R54(16) and R43(14) motifs. Dotted lines indicate hydrogen bonds. [Symmetry codes: (I) x + 1, y, z; (II) −x + , y + , −z + ; (III) −x + , y + , −z + .] |
