Figure 5

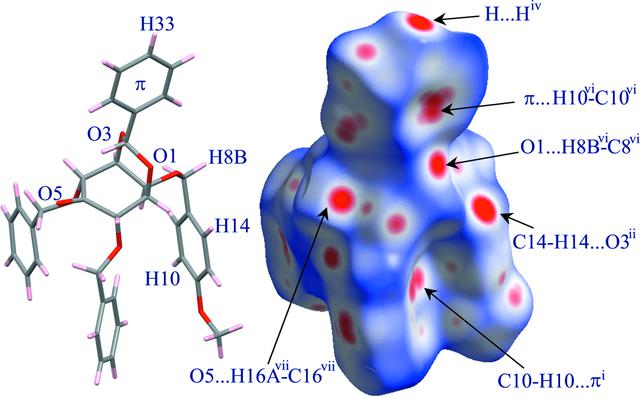

The Hirshfeld surface of (I)[link] mapped with dnorm; a mol­ecule of (I)[link] with a similar orientation has been added on the left-hand side for clarity. Selective atom labels on the left-hand side image indicate involvement of these atoms in inter­molecular inter­actions. The dark spots indicated by arrows in the right-hand side image are attributed to the contribution of the dnorm map to the Hirshfield surface by the specified inter­molecular inter­actions. [Symmetry codes: (i) −x + 2, y + [1 \over 2], −z + 2; (ii) −x + 2, y − [1 \over 2], −z + 2; (iv) x + 1, y, z + 1; (vi) −x + 2, y − [1 \over 2], −z + 2; (vii) −x + 1, y − [1 \over 2], −z + 2.]
