Figure 2

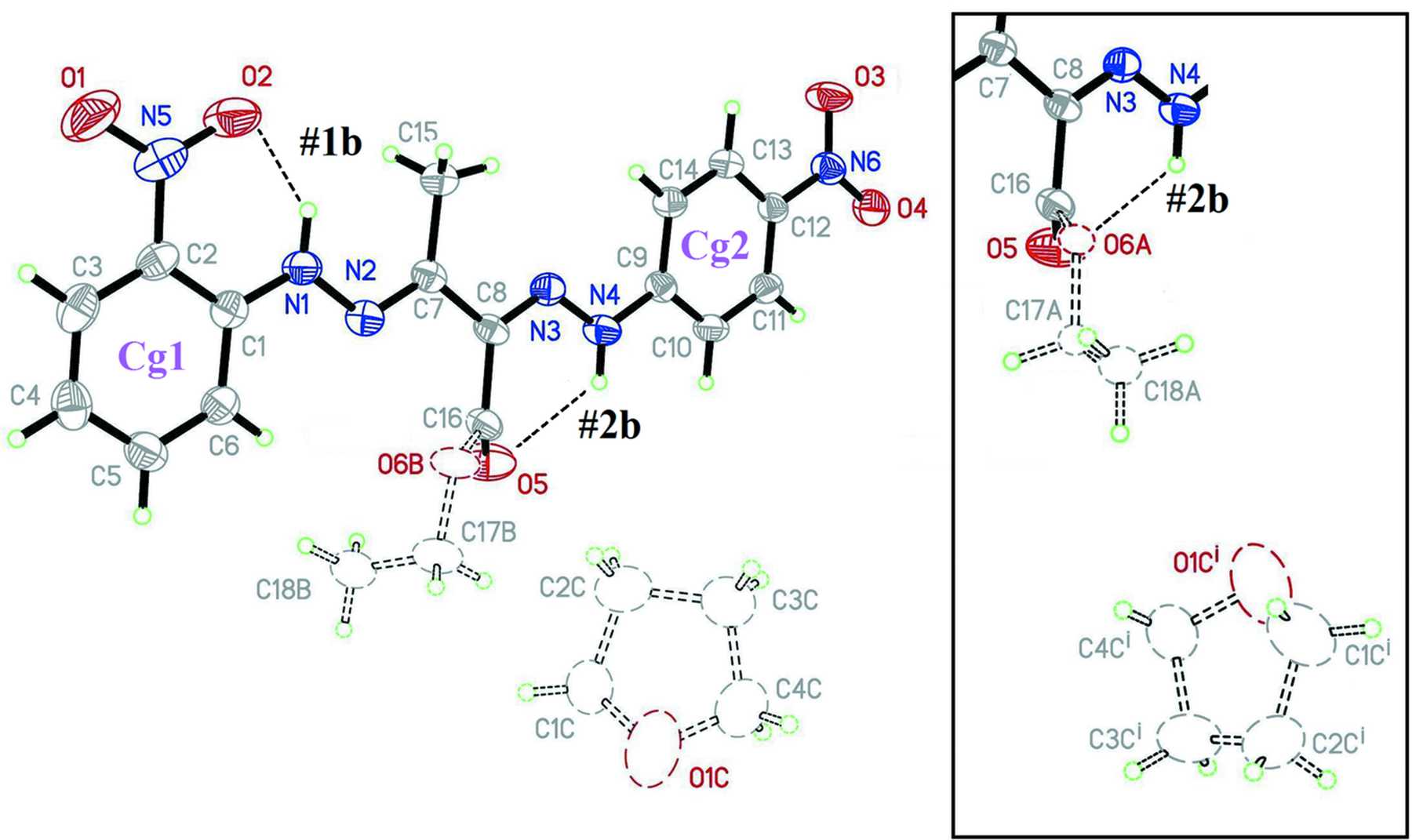

The molecular structure of (II), showing the atom and ring numbering. Single broken lines represent intramolecular hydrogen bonds. Double broken lines represent the disordered moieties, with the main figure and inset presenting two alternative co-existing possibilities. Displacement ellipsoids are drawn at the 40% probability level. For interaction codes, see Table 4. |
