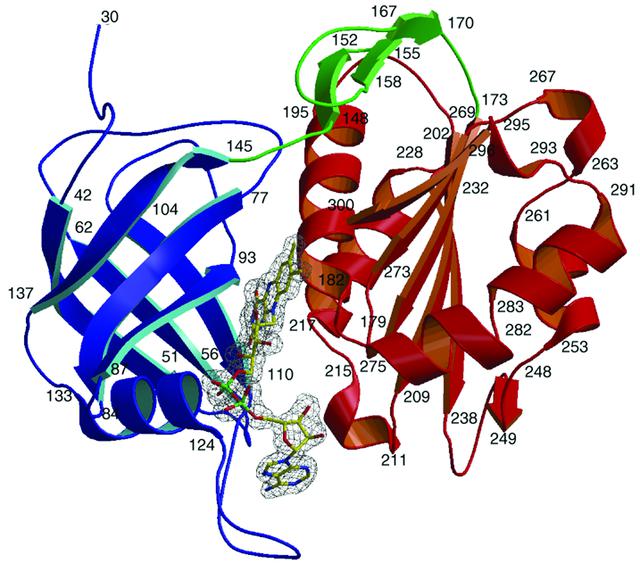

Figure 1
Overview of the human b5R structure with residue numbers at the beginning and the end of the secondary structures. A ball-and-stick model of FAD is superposed on an `omit' electron-density map contoured at 0.8σ. The FAD-binding domain is in blue, the NADH-binding domain in red and the linker domain in green. This figure was drawn using MOLSCRIPT (Kraulis, 1991 ![]() ![]() ![]() |
