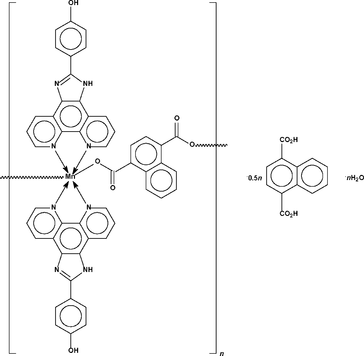

bx2132 scheme

Acta Cryst. (2008). E64, m701-m702    [ doi:10.1107/S160053680801074X ]

catena-Poly[[[bis[4-(1H-1,3,7,8-tetraazacyclopenta[l]phenanthren-2-yl)phenol-[kappa]2N7,N8]manganese(II)]-[mu]-naphthalene-1,4-dicarboxylato-[kappa]2O1:O4] naphthalene-1,4-dicarboxylic acid hemisolvate monohydrate]

H.-D. Li, X.-Y. Li, M.-L. Xu and S. W. Ng

Abstract top

The 1,4-dicarboxylate dianions in the title compound, [Mn(C12H6O4)(C19H12N4O)2]·0.5C12H8O4·H2O, bond to two 4-(1H-1,3,7,8-tetraazacyclopenta[l]phenanthren-2-yl)phenol-chelated Mn atoms to form a chain that features the metal atom in an octahedral coordination geometry. Adjacent chains interact with the uncoordinated water molecules to form a three-dimensional network. The naphthalene-1,4-dicarboxylic acid solvent molecule, which is disordered about a centre of inversion, occupies the space within the network but is not bonded to the network. One NH group is disordered equally over two positions.

Comment top

There are manganese dicarboxylate adducts of complexes of 2-phenyl-1H-1,3,7,8-tetraazacyclopenta[l]phenanthrene (Li et al., 2008). The 4-hydroxy substituted ligand forms an adduct with manganese terephthalate (Che et al., 2006) that features a carboxylate-bridged chain motif. The title naphthalene-1,4-dicarboxylate adduct also adopts a layer motif. However, there is space between the chains that is large enough for a naphthalene-1,4-dicarboxylic acid molecule as well as a water molecule to fit in. Adjacent chains are linked by hydrogen bonds into a three-dimensional network.

Related literature top

There are several studies of (2-phenyl-1H-1,3,7,8,-tetraazacyclopenta[l]phenanthrene-chelated manganese dicarboxylates (see Li et al., 2008). The 4-hydroxy substituted N-heterocycle forms an adduct with manganese terephthalate (see Che et al., 2006).

Experimental top

Manganese dichloride dihydrate (0.02 g, 0.1 mmol), naphthalene-1,4-dicarboxylic acid (0.02 g, 0.1 mmol), 4-(1H-1,3,7,8-tetraazacyclopenta[l]phenanthren-2-yl)phenol4-(1H-imidazo[4,5-f][1,10]phenanthrolin-2-yl)phenol (0.03 g, 0.1 mmol) and water (15 ml) were heated in a 23 ml, Teflon-lined, stainless-steel Parr bomb at 408 K for 2 days. Crystals were obtained in 40% yield.

Refinement top

The naphthalene-1,4-dicarboxylic acid is disordered over a center-of-inversion. The fused-ring portion was refined as a rigid naphthalene group of 1.39 Å sides; the occupancy is 0.5. The C–O distances were restrained to 1.25±0.01 Å and the Ccarboxyl–Caryl distances to 1.50±0.01 Å. Other restrained were applied to the carboxyl parts. The anisotropic displacement factors of the carbon and oxygen atoms were restrained to be nearly isotropic. The acid H atoms were arbitrarily placed on the carboxyl parts.

The carbon- and nitrogen-bound H atoms were placed in calculated positions [C–H 0.93, N–H 0.86, O–H 0.82 Å and Uiso(H) 1.2Ueq(C,N,O)], and were included in the refinement in the riding-model approximation. For one of the N-heterocycles, the amino –NH group is ordered whereas for the other, it is disordered. For the second N-heterocycle, hydrogen atoms of 0.5 occupancy were placed on the two nitrogen atoms. The water H-atoms were placed in chemically sensible positions on the basis of hydrogen bonds.

The final difference Fourier map had a large peak near H14, but this could not be modeled as a water molecule.

Computing details top

Data collection: RAPID-AUTO (Rigaku, 1998); cell refinement: RAPID-AUTO (Rigaku, 1998); data reduction: CrystalStructure (Rigaku/MSC, 2002); program(s) used to solve structure: SHELXS97 (Sheldrick, 2008); program(s) used to refine structure: SHELXL97 (Sheldrick, 2008); molecular graphics: X-SEED (Barbour, 2001) and OLEX (Dolomanov et al., 2003); software used to prepare material for publication: publCIF (Westrip, 2008).

Figures top
[Figure 1] Fig. 1. Thermal ellipsoid plot of Mn(C19H12N4O)2(C12H6O4).(C12H8O4)0.5.H2O; displacement ellipsoids are drawn at the 50% probability level, and H atoms as spheres of arbitrary radius. The naphthalene-1,4-dicarboxylic acid is disordered about a center-of-inversion. [Symmetry code i: x, 1 - y, 1/2 + z].
[Figure 2] Fig. 2. Chain structure of the manganese-naphthalene-1,4-dicarboxylate network as illustrated by OLEX (Dolomanov et al., 2003).
catena-Poly[[[bis[4-(1H-1,3,7,8- tetraazacyclopenta[l]phenanthren-2-yl)phenol- κ2N7,N8]manganese(II)]-µ-naphthalene-1,4-dicarboxylato- κ2O1:O4] naphthalene-1,4-dicarboxylic acid hemisolvate monohydrate] top
Crystal data top
[Mn(C12H6O4)(C19H12N4O)2]·0.5C12H8O4·H2OF000 = 4200
Mr = 1019.87Dx = 1.536 Mg m−3
Monoclinic, C2/cMo Kα radiation
λ = 0.71073 Å
Hall symbol: -C 2ycCell parameters from 24704 reflections
a = 48.398 (15) Åθ = 3.0–27.5º
b = 9.089 (2) ŵ = 0.38 mm−1
c = 20.598 (6) ÅT = 295 (2) K
β = 103.20 (1)ºBlock, brown
V = 8821 (4) Å30.31 × 0.25 × 0.18 mm
Z = 8
Data collection top
Rigaku R-AXIS RAPID
diffractometer		10014 independent reflections
Radiation source: fine-focus sealed tube5868 reflections with I > 2σ(I)
Monochromator: graphiteRint = 0.084
Detector resolution: 10 pixels mm-1θmax = 27.5º
T = 295(2) Kθmin = 3.0º
ω scansh = −62→62
Absorption correction: multi-scan
(ABSCOR; Higashi, 1995)		k = −11→11
Tmin = 0.820, Tmax = 1.000l = −25→26
40785 measured reflections
Refinement top
Refinement on F2Secondary atom site location: difference Fourier map
Least-squares matrix: fullHydrogen site location: inferred from neighbouring sites
R[F2 > 2σ(F2)] = 0.060H-atom parameters constrained
wR(F2) = 0.170  w = 1/[σ2(Fo2) + (0.0782P)2 + 7.7802P]
where P = (Fo2 + 2Fc2)/3
S = 1.03(Δ/σ)max = 0.001
10014 reflectionsΔρmax = 1.35 e Å−3
717 parametersΔρmin = −0.42 e Å−3
116 restraintsExtinction correction: none
Primary atom site location: structure-invariant direct methods
Crystal data top
[Mn(C12H6O4)(C19H12N4O)2]·0.5C12H8O4·H2OV = 8821 (4) Å3
Mr = 1019.87Z = 8
Monoclinic, C2/cMo Kα
a = 48.398 (15) ŵ = 0.38 mm−1
b = 9.089 (2) ÅT = 295 (2) K
c = 20.598 (6) Å0.31 × 0.25 × 0.18 mm
β = 103.20 (1)º
Data collection top
Rigaku R-AXIS RAPID
diffractometer		10014 independent reflections
Absorption correction: multi-scan
(ABSCOR; Higashi, 1995)		5868 reflections with I > 2σ(I)
Tmin = 0.820, Tmax = 1.000Rint = 0.084
40785 measured reflections
Refinement top
R[F2 > 2σ(F2)] = 0.060116 restraints
wR(F2) = 0.170H-atom parameters constrained
S = 1.03Δρmax = 1.35 e Å−3
10014 reflectionsΔρmin = −0.42 e Å−3
717 parameters
Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2) top
xyzUiso*/UeqOcc. (<1)
Mn10.648562 (11)0.41289 (6)0.51035 (2)0.03142 (15)
O10.66266 (5)0.5844 (3)0.45399 (11)0.0379 (6)
O20.70748 (5)0.5903 (3)0.44417 (12)0.0468 (7)
O30.65765 (6)0.4702 (3)0.10116 (11)0.0487 (7)
O40.62358 (12)0.3337 (5)0.12178 (16)0.137 (2)
O50.80478 (5)−0.5497 (3)0.28409 (12)0.0431 (6)
H5O0.7975−0.57130.24530.052*
O60.39480 (6)0.0139 (4)0.56796 (15)0.0580 (8)
H6O0.38280.05380.53880.070*
O1W0.64402 (6)0.8246 (3)0.51341 (13)0.0585 (8)
H1W10.63810.78820.54400.070*
H1W20.65000.75800.49350.070*
N10.64987 (6)0.2597 (3)0.42332 (13)0.0329 (6)
N20.71343 (6)−0.0949 (3)0.35027 (13)0.0326 (6)
N30.74551 (6)−0.0806 (3)0.44653 (13)0.0323 (6)
H3N0.7608−0.09580.47650.039*
N40.68967 (6)0.2888 (3)0.53848 (13)0.0323 (6)
N50.60125 (6)0.4417 (3)0.47014 (14)0.0349 (7)
N60.50889 (6)0.2640 (4)0.49973 (15)0.0427 (8)
H6N0.49630.31270.47180.051*0.50
N70.52850 (6)0.1071 (3)0.58045 (15)0.0393 (7)
H7N0.53050.04220.61150.047*0.50
N80.62546 (6)0.2431 (3)0.56234 (13)0.0328 (6)
C10.68180 (7)0.5800 (4)0.42007 (15)0.0318 (7)
C20.67164 (7)0.5539 (4)0.34578 (15)0.0334 (8)
C30.68747 (8)0.4623 (4)0.31553 (18)0.0442 (9)
H30.70460.42570.34040.053*
C40.67855 (10)0.4222 (5)0.24807 (19)0.0520 (11)
H40.69040.36590.22820.062*
C50.65281 (9)0.4650 (4)0.21179 (17)0.0453 (10)
C60.63544 (8)0.5580 (4)0.24055 (17)0.0418 (9)
C70.60821 (10)0.6066 (6)0.2051 (2)0.0636 (14)
H70.60060.56990.16260.076*
C80.59313 (10)0.7050 (7)0.2321 (2)0.0763 (17)
H80.57500.73120.20870.092*
C90.60437 (9)0.7686 (6)0.2949 (2)0.0610 (13)
H90.59440.84140.31150.073*
C100.63004 (8)0.7224 (4)0.33118 (18)0.0446 (9)
H100.63750.76470.37260.053*
C110.64569 (8)0.6109 (4)0.30714 (16)0.0362 (8)
C120.64374 (11)0.4187 (5)0.13943 (18)0.0573 (12)
C130.63068 (8)0.2504 (4)0.36630 (17)0.0391 (8)
H130.61430.30710.36120.047*
C140.63352 (8)0.1611 (4)0.31385 (18)0.0443 (9)
H140.61950.15940.27450.053*
C150.65707 (7)0.0760 (4)0.32064 (16)0.0383 (8)
H150.65920.01400.28620.046*
C160.67804 (7)0.0824 (4)0.38000 (15)0.0309 (7)
C170.67358 (7)0.1766 (4)0.43056 (15)0.0277 (7)
C180.70380 (7)−0.0002 (4)0.39249 (15)0.0302 (7)
C190.73844 (7)−0.1426 (4)0.38480 (16)0.0319 (7)
C200.75594 (7)−0.2469 (4)0.35910 (15)0.0310 (7)
C210.74440 (8)−0.3234 (4)0.30051 (17)0.0375 (8)
H210.7256−0.30660.27870.045*
C220.76036 (7)−0.4235 (4)0.27433 (16)0.0363 (8)
H220.7523−0.47300.23500.044*
C230.78818 (7)−0.4505 (4)0.30626 (16)0.0326 (8)
C240.80001 (8)−0.3755 (4)0.36495 (17)0.0394 (9)
H240.8187−0.39320.38680.047*
C250.78397 (8)−0.2747 (4)0.39081 (17)0.0388 (8)
H250.7921−0.22490.43000.047*
C260.72353 (7)0.0112 (4)0.45189 (15)0.0305 (7)
C270.72016 (7)0.1082 (4)0.50390 (15)0.0303 (7)
C280.69495 (7)0.1906 (4)0.49268 (15)0.0289 (7)
C290.73988 (8)0.1291 (4)0.56409 (16)0.0368 (8)
H290.75670.07510.57340.044*
C300.73462 (8)0.2288 (4)0.60954 (17)0.0417 (9)
H300.74780.24480.64940.050*
C310.70901 (8)0.3062 (4)0.59476 (16)0.0370 (8)
H310.70540.37310.62600.044*
C320.58966 (8)0.5338 (4)0.42155 (17)0.0421 (9)
H320.60170.59400.40390.051*
C330.56062 (8)0.5453 (5)0.39549 (19)0.0472 (10)
H330.55360.60910.36030.057*
C340.54270 (8)0.4625 (4)0.42190 (18)0.0448 (9)
H340.52320.47030.40590.054*
C350.55415 (7)0.3645 (4)0.47394 (17)0.0352 (8)
C360.58368 (7)0.3551 (4)0.49587 (16)0.0308 (7)
C370.53799 (7)0.2739 (4)0.50782 (17)0.0375 (8)
C380.50402 (8)0.1628 (4)0.54421 (18)0.0390 (8)
C390.47567 (8)0.1240 (4)0.55059 (18)0.0398 (9)
C400.45204 (8)0.1852 (5)0.5075 (2)0.0466 (9)
H400.45460.25070.47460.056*
C410.42516 (8)0.1502 (4)0.51280 (19)0.0441 (9)
H410.40960.19180.48350.053*
C420.42095 (8)0.0535 (4)0.56145 (19)0.0418 (9)
C430.44413 (9)−0.0074 (5)0.6052 (2)0.0502 (10)
H430.4415−0.07190.63830.060*
C440.47111 (9)0.0282 (5)0.59918 (19)0.0482 (10)
H440.4866−0.01330.62850.058*
C450.54997 (7)0.1768 (4)0.55707 (16)0.0360 (8)
C460.58004 (7)0.1575 (4)0.57679 (16)0.0317 (7)
C470.59665 (7)0.2488 (4)0.54633 (15)0.0301 (7)
C480.59376 (8)0.0503 (4)0.62186 (18)0.0423 (9)
H480.5833−0.01480.64170.051*
C490.62277 (8)0.0435 (4)0.63611 (18)0.0422 (9)
H490.6324−0.02750.66530.051*
C500.63774 (8)0.1443 (4)0.60637 (17)0.0391 (9)
H500.65750.14160.61820.047*
O70.57620 (11)0.3027 (6)0.1777 (3)0.0515 (14)0.50
H7O0.58860.31120.15680.062*0.50
O80.54490 (15)0.4380 (7)0.1031 (3)0.0662 (18)0.50
O90.47578 (12)0.3147 (7)0.3757 (3)0.0619 (16)0.50
O100.46652 (12)0.0992 (7)0.3243 (3)0.0651 (17)0.50
H10O0.45750.07380.35170.078*0.50
C510.55115 (11)0.3657 (5)0.1545 (2)0.0409 (17)0.50
C520.53036 (7)0.3410 (4)0.19789 (16)0.0385 (17)0.50
C530.52596 (9)0.1961 (4)0.2146 (2)0.049 (2)0.50
H530.53520.12000.19810.059*0.50
C540.50771 (9)0.1650 (3)0.2560 (2)0.047 (2)0.50
H540.50480.06810.26720.056*0.50
C550.49387 (8)0.2788 (4)0.28073 (17)0.0461 (19)0.50
C560.49827 (9)0.4237 (4)0.2640 (2)0.042 (3)0.50
C570.51652 (9)0.4548 (3)0.22257 (19)0.041 (2)0.50
C580.52092 (14)0.5997 (4)0.2058 (3)0.044 (2)0.50
H580.53310.62050.17810.053*0.50
C590.50708 (19)0.7134 (3)0.2305 (4)0.047 (3)0.50
H590.51000.81040.21930.057*0.50
C600.48883 (19)0.6823 (4)0.2719 (4)0.068 (4)0.50
H600.47960.75840.28840.082*0.50
C610.48443 (14)0.5374 (5)0.2887 (3)0.057 (3)0.50
H610.47220.51660.31640.068*0.50
C620.47719 (9)0.2234 (7)0.3285 (3)0.050 (2)0.50
Atomic displacement parameters (Å2) top
U11U22U33U12U13U23
Mn10.0325 (3)0.0381 (3)0.0258 (2)0.0015 (2)0.0110 (2)−0.0006 (2)
O10.0453 (15)0.0431 (14)0.0294 (12)0.0010 (12)0.0171 (11)0.0011 (11)
O20.0342 (15)0.0710 (19)0.0338 (13)0.0000 (14)0.0048 (11)−0.0056 (13)
O30.0654 (19)0.0591 (17)0.0245 (12)0.0084 (15)0.0161 (12)0.0071 (12)
O40.217 (5)0.161 (4)0.0387 (18)−0.144 (4)0.040 (2)−0.035 (2)
O50.0398 (15)0.0600 (17)0.0289 (12)0.0147 (13)0.0063 (11)−0.0057 (12)
O60.0341 (15)0.080 (2)0.0612 (18)−0.0089 (15)0.0143 (13)0.0063 (17)
O1W0.063 (2)0.0632 (19)0.0460 (16)0.0125 (16)0.0062 (14)−0.0068 (14)
N10.0311 (15)0.0399 (16)0.0290 (14)0.0017 (13)0.0099 (12)−0.0012 (13)
N20.0337 (15)0.0388 (16)0.0262 (13)0.0026 (13)0.0087 (12)−0.0015 (13)
N30.0321 (15)0.0394 (16)0.0254 (13)0.0046 (13)0.0063 (11)−0.0030 (13)
N40.0352 (16)0.0368 (16)0.0260 (13)0.0003 (13)0.0092 (12)−0.0023 (12)
N50.0364 (16)0.0382 (16)0.0323 (14)0.0028 (13)0.0124 (13)0.0040 (13)
N60.0330 (17)0.0523 (19)0.0438 (17)−0.0035 (15)0.0109 (14)0.0065 (16)
N70.0322 (16)0.0495 (18)0.0385 (16)−0.0004 (14)0.0128 (13)0.0016 (14)
N80.0298 (15)0.0368 (15)0.0325 (14)0.0026 (13)0.0084 (12)0.0012 (13)
C10.0367 (19)0.0358 (18)0.0249 (15)0.0006 (16)0.0112 (14)0.0000 (15)
C20.0381 (19)0.0400 (19)0.0236 (15)−0.0060 (16)0.0100 (14)0.0004 (14)
C30.045 (2)0.056 (2)0.0338 (18)0.0049 (19)0.0142 (17)0.0013 (18)
C40.071 (3)0.056 (3)0.0351 (19)0.001 (2)0.025 (2)−0.0081 (19)
C50.066 (3)0.047 (2)0.0250 (17)−0.019 (2)0.0147 (18)−0.0020 (17)
C60.046 (2)0.054 (2)0.0257 (16)−0.0174 (19)0.0090 (16)0.0095 (16)
C70.053 (3)0.105 (4)0.0291 (19)−0.024 (3)0.0025 (19)0.016 (2)
C80.040 (3)0.137 (5)0.052 (3)0.002 (3)0.010 (2)0.044 (3)
C90.052 (3)0.085 (3)0.052 (2)0.020 (2)0.023 (2)0.029 (2)
C100.046 (2)0.053 (2)0.0374 (19)0.0059 (19)0.0164 (17)0.0095 (18)
C110.040 (2)0.045 (2)0.0260 (16)−0.0073 (17)0.0123 (15)0.0060 (15)
C120.091 (4)0.056 (3)0.0261 (18)−0.027 (3)0.016 (2)−0.0040 (18)
C130.0334 (19)0.048 (2)0.0349 (18)0.0104 (17)0.0046 (15)−0.0018 (17)
C140.040 (2)0.057 (2)0.0319 (18)0.0058 (19)0.0005 (16)−0.0063 (18)
C150.037 (2)0.050 (2)0.0259 (16)0.0047 (17)0.0036 (14)−0.0065 (16)
C160.0302 (17)0.0365 (18)0.0267 (15)0.0009 (15)0.0079 (13)0.0009 (15)
C170.0292 (17)0.0319 (17)0.0240 (15)−0.0016 (14)0.0101 (13)0.0026 (14)
C180.0328 (18)0.0345 (18)0.0242 (15)−0.0004 (15)0.0081 (13)−0.0003 (14)
C190.0349 (19)0.0378 (18)0.0245 (15)−0.0003 (16)0.0100 (14)0.0001 (14)
C200.0345 (18)0.0346 (18)0.0254 (15)−0.0001 (15)0.0102 (14)0.0000 (14)
C210.0333 (19)0.046 (2)0.0328 (17)0.0057 (17)0.0059 (15)−0.0018 (16)
C220.038 (2)0.044 (2)0.0261 (16)0.0038 (17)0.0054 (14)−0.0039 (15)
C230.0329 (18)0.0381 (19)0.0286 (16)0.0056 (15)0.0105 (14)0.0018 (15)
C240.0311 (19)0.052 (2)0.0328 (18)0.0045 (17)0.0033 (15)−0.0039 (17)
C250.037 (2)0.048 (2)0.0299 (17)0.0024 (17)0.0034 (15)−0.0071 (16)
C260.0332 (18)0.0330 (17)0.0268 (15)0.0008 (15)0.0100 (14)0.0010 (14)
C270.0302 (17)0.0366 (18)0.0268 (15)−0.0007 (15)0.0120 (13)0.0013 (14)
C280.0318 (18)0.0303 (17)0.0262 (15)−0.0040 (14)0.0101 (13)0.0001 (14)
C290.0351 (19)0.046 (2)0.0290 (16)0.0058 (16)0.0063 (15)−0.0019 (16)
C300.040 (2)0.054 (2)0.0295 (17)−0.0006 (19)0.0056 (16)−0.0060 (17)
C310.039 (2)0.043 (2)0.0289 (17)−0.0010 (17)0.0090 (15)−0.0066 (16)
C320.042 (2)0.049 (2)0.0361 (18)−0.0013 (18)0.0110 (16)0.0100 (18)
C330.044 (2)0.054 (2)0.041 (2)0.0009 (19)0.0049 (18)0.0148 (19)
C340.037 (2)0.055 (2)0.039 (2)0.0008 (19)0.0008 (16)0.0106 (19)
C350.0342 (19)0.042 (2)0.0307 (17)−0.0010 (16)0.0091 (15)0.0025 (16)
C360.0323 (18)0.0346 (18)0.0274 (16)−0.0006 (15)0.0105 (14)−0.0029 (14)
C370.0311 (19)0.050 (2)0.0309 (17)−0.0002 (17)0.0063 (15)0.0032 (17)
C380.036 (2)0.045 (2)0.0395 (19)−0.0020 (17)0.0160 (16)0.0007 (17)
C390.037 (2)0.046 (2)0.0386 (19)−0.0034 (17)0.0139 (16)−0.0045 (17)
C400.043 (2)0.052 (2)0.048 (2)−0.0024 (19)0.0168 (18)0.0041 (19)
C410.039 (2)0.051 (2)0.043 (2)−0.0001 (18)0.0112 (17)−0.0025 (19)
C420.035 (2)0.050 (2)0.043 (2)−0.0077 (17)0.0151 (16)−0.0104 (18)
C430.046 (2)0.062 (3)0.046 (2)−0.007 (2)0.0171 (19)0.006 (2)
C440.041 (2)0.060 (3)0.043 (2)0.001 (2)0.0106 (17)0.010 (2)
C450.035 (2)0.044 (2)0.0308 (17)−0.0026 (17)0.0115 (15)0.0003 (16)
C460.0331 (19)0.0352 (18)0.0270 (16)0.0029 (15)0.0071 (14)−0.0005 (15)
C470.0318 (18)0.0328 (17)0.0262 (15)−0.0006 (15)0.0076 (14)−0.0032 (14)
C480.044 (2)0.045 (2)0.0374 (19)0.0030 (18)0.0094 (17)0.0073 (17)
C490.045 (2)0.043 (2)0.0391 (19)0.0104 (18)0.0096 (17)0.0120 (17)
C500.037 (2)0.046 (2)0.0351 (18)0.0063 (17)0.0103 (16)0.0060 (17)
O70.048 (3)0.060 (3)0.053 (3)−0.014 (3)0.025 (3)0.002 (3)
O80.092 (5)0.072 (4)0.044 (3)0.014 (3)0.033 (3)0.016 (3)
O90.052 (3)0.088 (4)0.050 (3)0.004 (3)0.021 (3)0.023 (3)
O100.057 (4)0.074 (4)0.068 (4)−0.012 (3)0.023 (3)0.030 (3)
C510.044 (4)0.043 (4)0.039 (4)−0.007 (3)0.016 (3)−0.009 (3)
C520.039 (4)0.041 (4)0.036 (3)−0.005 (3)0.010 (3)−0.001 (3)
C530.072 (5)0.042 (4)0.033 (4)−0.005 (4)0.013 (4)0.000 (4)
C540.064 (7)0.039 (3)0.033 (4)−0.013 (3)0.004 (4)0.002 (4)
C550.039 (4)0.054 (4)0.044 (4)0.002 (4)0.006 (3)0.022 (4)
C560.046 (4)0.045 (4)0.029 (6)0.003 (5)−0.008 (4)0.010 (3)
C570.045 (5)0.041 (5)0.031 (4)−0.002 (4)−0.002 (4)0.005 (4)
C580.041 (5)0.047 (5)0.045 (4)−0.004 (4)0.008 (4)−0.015 (4)
C590.065 (6)0.027 (4)0.050 (6)−0.002 (4)0.014 (5)−0.001 (4)
C600.062 (7)0.075 (6)0.072 (8)0.011 (6)0.023 (6)−0.009 (6)
C610.036 (5)0.080 (7)0.057 (6)0.003 (5)0.018 (4)0.012 (5)
C620.036 (4)0.061 (5)0.055 (5)−0.003 (4)0.011 (4)0.014 (4)
Geometric parameters (Å, °) top
Mn1—O12.146 (2)C21—H210.9300
Mn1—O3i2.108 (2)C22—C231.379 (5)
Mn1—N12.282 (3)C22—H220.9300
Mn1—N42.245 (3)C23—C241.392 (5)
Mn1—N52.265 (3)C24—C251.384 (5)
Mn1—N82.307 (3)C24—H240.9300
O1—C11.282 (4)C25—H250.9300
O2—C11.232 (4)C26—C271.425 (4)
O3—C121.239 (5)C27—C291.394 (4)
O3—Mn1ii2.108 (2)C27—C281.405 (5)
O4—C121.232 (5)C29—C301.368 (5)
O5—C231.354 (4)C29—H290.9300
O5—H5O0.8200C30—C311.397 (5)
O6—C421.352 (4)C30—H300.9300
O6—H6O0.8200C31—H310.9300
O1W—H1W10.8201C32—C331.389 (5)
O1W—H1W20.8200C32—H320.9300
N1—C131.323 (4)C33—C341.352 (5)
N1—C171.353 (4)C33—H330.9300
N2—C191.329 (4)C34—C351.407 (5)
N2—C181.379 (4)C34—H340.9300
N3—C191.361 (4)C35—C361.400 (5)
N3—C261.376 (4)C35—C371.423 (5)
N3—H3N0.8600C36—C471.453 (5)
N4—C311.323 (4)C37—C451.369 (5)
N4—C281.364 (4)C38—C391.452 (5)
N5—C321.327 (4)C39—C441.382 (5)
N5—C361.352 (4)C39—C401.394 (5)
N6—C381.356 (5)C40—C411.368 (5)
N6—C371.383 (4)C40—H400.9300
N6—H6N0.8600C41—C421.383 (5)
N7—C381.347 (5)C41—H410.9300
N7—C451.393 (4)C42—C431.384 (5)
N7—H7N0.8600C43—C441.378 (5)
N8—C501.318 (4)C43—H430.9300
N8—C471.359 (4)C44—H440.9300
C1—C21.515 (4)C45—C461.430 (5)
C2—C31.374 (5)C46—C471.400 (5)
C2—C111.422 (5)C46—C481.403 (5)
C3—C41.406 (5)C48—C491.369 (5)
C3—H30.9300C48—H480.9300
C4—C51.355 (6)C49—C501.394 (5)
C4—H40.9300C49—H490.9300
C5—C61.414 (6)C50—H500.9300
C5—C121.514 (5)O7—C511.327 (6)
C6—C71.423 (6)O7—H7O0.8201
C6—C111.431 (5)O8—C511.223 (6)
C7—C81.351 (7)O9—C621.291 (7)
C7—H70.9300O10—C621.236 (7)
C8—C91.409 (7)O10—H10O0.8198
C8—H80.9300C51—C521.507 (5)
C9—C101.362 (5)C52—C531.3900
C9—H90.9300C52—C571.3900
C10—C111.420 (5)C53—C541.3900
C10—H100.9300C53—H530.9300
C13—C141.383 (5)C54—C551.3900
C13—H130.9300C54—H540.9300
C14—C151.358 (5)C55—C561.3900
C14—H140.9300C55—C621.496 (5)
C15—C161.401 (4)C56—C571.3900
C15—H150.9300C56—C611.3900
C16—C171.402 (4)C57—C581.3900
C16—C181.427 (5)C58—C591.3900
C17—C281.455 (4)C58—H580.9300
C18—C261.373 (4)C59—C601.3900
C19—C201.449 (5)C59—H590.9300
C20—C251.388 (5)C60—C611.3900
C20—C211.394 (5)C60—H600.9300
C21—C221.381 (5)C61—H610.9300
O1—Mn1—O3i95.0 (1)C24—C25—H25119.5
O1—Mn1—N187.1 (1)C20—C25—H25119.5
O1—Mn1—N497.6 (1)C18—C26—N3106.0 (3)
O1—Mn1—N597.9 (1)C18—C26—C27122.7 (3)
O1—Mn1—N8169.9 (1)N3—C26—C27131.2 (3)
O3i—Mn1—N1165.2 (1)C29—C27—C28117.8 (3)
O3i—Mn1—N491.8 (1)C29—C27—C26125.4 (3)
O3i—Mn1—N5104.8 (1)C28—C27—C26116.8 (3)
O3i—Mn1—N887.1 (1)N4—C28—C27121.8 (3)
N1—Mn1—N473.4 (1)N4—C28—C17117.2 (3)
N1—Mn1—N589.5 (1)C27—C28—C17120.9 (3)
N1—Mn1—N893.4 (1)C30—C29—C27120.1 (3)
N4—Mn1—N5156.2 (1)C30—C29—H29119.9
N4—Mn1—N892.2 (1)C27—C29—H29119.9
N5—Mn1—N872.0 (1)C29—C30—C31118.6 (3)
C1—O1—Mn1129.1 (2)C29—C30—H30120.7
C12—O3—Mn1ii136.2 (3)C31—C30—H30120.7
C23—O5—H5O109.5N4—C31—C30123.1 (3)
C42—O6—H6O109.5N4—C31—H31118.5
H1W1—O1W—H1W2108.2C30—C31—H31118.5
C13—N1—C17117.9 (3)N5—C32—C33123.7 (4)
C13—N1—Mn1126.6 (2)N5—C32—H32118.1
C17—N1—Mn1115.4 (2)C33—C32—H32118.1
C19—N2—C18105.3 (3)C34—C33—C32119.2 (4)
C19—N3—C26107.0 (3)C34—C33—H33120.4
C19—N3—H3N126.5C32—C33—H33120.4
C26—N3—H3N126.5C33—C34—C35118.8 (4)
C31—N4—C28118.5 (3)C33—C34—H34120.6
C31—N4—Mn1125.0 (2)C35—C34—H34120.6
C28—N4—Mn1116.4 (2)C36—C35—C34118.7 (3)
C32—N5—C36117.9 (3)C36—C35—C37116.2 (3)
C32—N5—Mn1124.5 (2)C34—C35—C37125.1 (3)
C36—N5—Mn1117.6 (2)N5—C36—C35121.7 (3)
C38—N6—C37107.0 (3)N5—C36—C47117.4 (3)
C38—N6—H6N126.5C35—C36—C47120.9 (3)
C37—N6—H6N126.5C45—C37—N6107.1 (3)
C38—N7—C45105.6 (3)C45—C37—C35123.3 (3)
C38—N7—H7N127.2N6—C37—C35129.6 (3)
C45—N7—H7N127.2N7—C38—N6111.3 (3)
C50—N8—C47118.0 (3)N7—C38—C39126.1 (3)
C50—N8—Mn1125.8 (2)N6—C38—C39122.7 (3)
C47—N8—Mn1116.2 (2)C44—C39—C40118.0 (4)
O2—C1—O1124.5 (3)C44—C39—C38122.0 (3)
O2—C1—C2118.9 (3)C40—C39—C38120.0 (3)
O1—C1—C2116.6 (3)C41—C40—C39120.9 (4)
C3—C2—C11118.7 (3)C41—C40—H40119.6
C3—C2—C1117.8 (3)C39—C40—H40119.6
C11—C2—C1123.4 (3)C40—C41—C42120.4 (4)
C2—C3—C4121.9 (4)C40—C41—H41119.8
C2—C3—H3119.1C42—C41—H41119.8
C4—C3—H3119.1O6—C42—C41122.5 (4)
C5—C4—C3120.4 (4)O6—C42—C43117.8 (4)
C5—C4—H4119.8C41—C42—C43119.7 (4)
C3—C4—H4119.8C44—C43—C42119.4 (4)
C4—C5—C6120.0 (3)C44—C43—H43120.3
C4—C5—C12119.1 (4)C42—C43—H43120.3
C6—C5—C12120.8 (4)C43—C44—C39121.6 (4)
C5—C6—C7122.7 (4)C43—C44—H44119.2
C5—C6—C11119.5 (4)C39—C44—H44119.2
C7—C6—C11117.7 (4)C37—C45—N7109.1 (3)
C8—C7—C6121.3 (4)C37—C45—C46121.4 (3)
C8—C7—H7119.4N7—C45—C46129.6 (3)
C6—C7—H7119.4C47—C46—C48118.3 (3)
C7—C8—C9121.2 (4)C47—C46—C45116.8 (3)
C7—C8—H8119.4C48—C46—C45124.8 (3)
C9—C8—H8119.4N8—C47—C46122.1 (3)
C10—C9—C8119.3 (5)N8—C47—C36116.8 (3)
C10—C9—H9120.3C46—C47—C36121.1 (3)
C8—C9—H9120.3C49—C48—C46118.7 (4)
C9—C10—C11121.4 (4)C49—C48—H48120.6
C9—C10—H10119.3C46—C48—H48120.6
C11—C10—H10119.3C48—C49—C50119.1 (3)
C10—C11—C2122.5 (3)C48—C49—H49120.4
C10—C11—C6118.6 (3)C50—C49—H49120.4
C2—C11—C6118.9 (3)N8—C50—C49123.5 (4)
O4—C12—O3123.9 (4)N8—C50—H50118.2
O4—C12—C5119.8 (4)C49—C50—H50118.2
O3—C12—C5116.3 (4)C51—O7—H7O119.4
N1—C13—C14123.8 (3)C62—O10—H10O119.1
N1—C13—H13118.1O8—C51—O7124.6 (6)
C14—C13—H13118.1O8—C51—C52121.8 (5)
C15—C14—C13119.0 (3)O7—C51—C52113.7 (4)
C15—C14—H14120.5C53—C52—C57120.0
C13—C14—H14120.5C53—C52—C51116.7 (3)
C14—C15—C16119.3 (3)C57—C52—C51123.3 (3)
C14—C15—H15120.3C52—C53—C54120.0
C16—C15—H15120.3C52—C53—H53120.0
C17—C16—C15118.0 (3)C54—C53—H53120.0
C17—C16—C18117.6 (3)C55—C54—C53120.0
C15—C16—C18124.4 (3)C55—C54—H54120.0
N1—C17—C16122.0 (3)C53—C54—H54120.0
N1—C17—C28117.6 (3)C54—C55—C56120.0
C16—C17—C28120.5 (3)C54—C55—C62111.6 (3)
C26—C18—N2110.0 (3)C56—C55—C62128.2 (3)
C26—C18—C16121.5 (3)C55—C56—C57120.0
N2—C18—C16128.5 (3)C55—C56—C61120.0
N2—C19—N3111.6 (3)C57—C56—C61120.0
N2—C19—C20123.7 (3)C58—C57—C56120.0
N3—C19—C20124.7 (3)C58—C57—C52120.0
C25—C20—C21118.2 (3)C56—C57—C52120.0
C25—C20—C19122.5 (3)C57—C58—C59120.0
C21—C20—C19119.3 (3)C57—C58—H58120.0
C22—C21—C20121.2 (3)C59—C58—H58120.0
C22—C21—H21119.4C58—C59—C60120.0
C20—C21—H21119.4C58—C59—H59120.0
C23—C22—C21120.2 (3)C60—C59—H59120.0
C23—C22—H22119.9C61—C60—C59120.0
C21—C22—H22119.9C61—C60—H60120.0
O5—C23—C22123.2 (3)C59—C60—H60120.0
O5—C23—C24117.4 (3)C60—C61—C56120.0
C22—C23—C24119.4 (3)C60—C61—H61120.0
C25—C24—C23120.2 (3)C56—C61—H61120.0
C25—C24—H24119.9O10—C62—O9123.2 (6)
C23—C24—H24119.9O10—C62—C55122.7 (6)
C24—C25—C20120.9 (3)O9—C62—C55114.1 (5)
O3i—Mn1—O1—C1122.4 (3)C19—N3—C26—C180.4 (4)
N4—Mn1—O1—C130.0 (3)C19—N3—C26—C27−176.7 (3)
N5—Mn1—O1—C1−131.9 (3)C18—C26—C27—C29−177.3 (3)
N1—Mn1—O1—C1−42.8 (3)N3—C26—C27—C29−0.6 (6)
N8—Mn1—O1—C1−136.0 (5)C18—C26—C27—C281.8 (5)
O3i—Mn1—N1—C13−177.0 (4)N3—C26—C27—C28178.4 (3)
O1—Mn1—N1—C13−78.7 (3)C31—N4—C28—C270.1 (5)
N4—Mn1—N1—C13−177.5 (3)Mn1—N4—C28—C27178.8 (2)
N5—Mn1—N1—C1319.3 (3)C31—N4—C28—C17−178.5 (3)
N8—Mn1—N1—C1391.2 (3)Mn1—N4—C28—C170.2 (4)
O3i—Mn1—N1—C17−0.7 (6)C29—C27—C28—N40.3 (5)
O1—Mn1—N1—C1797.6 (2)C26—C27—C28—N4−178.8 (3)
N4—Mn1—N1—C17−1.2 (2)C29—C27—C28—C17178.9 (3)
N5—Mn1—N1—C17−164.4 (2)C26—C27—C28—C17−0.2 (4)
N8—Mn1—N1—C17−92.5 (2)N1—C17—C28—N4−1.3 (4)
O3i—Mn1—N4—C31−0.8 (3)C16—C17—C28—N4177.4 (3)
O1—Mn1—N4—C3194.4 (3)N1—C17—C28—C27−179.9 (3)
N5—Mn1—N4—C31−135.3 (3)C16—C17—C28—C27−1.3 (5)
N1—Mn1—N4—C31179.1 (3)C28—C27—C29—C30−1.0 (5)
N8—Mn1—N4—C31−88.0 (3)C26—C27—C29—C30178.0 (3)
O3i—Mn1—N4—C28−179.4 (2)C27—C29—C30—C311.2 (6)
O1—Mn1—N4—C28−84.1 (2)C28—N4—C31—C300.1 (5)
N5—Mn1—N4—C2846.1 (4)Mn1—N4—C31—C30−178.5 (3)
N1—Mn1—N4—C280.5 (2)C29—C30—C31—N4−0.7 (6)
N8—Mn1—N4—C2893.4 (2)C36—N5—C32—C33−0.5 (6)
O3i—Mn1—N5—C32102.6 (3)Mn1—N5—C32—C33177.0 (3)
O1—Mn1—N5—C325.3 (3)N5—C32—C33—C342.3 (6)
N4—Mn1—N5—C32−124.9 (3)C32—C33—C34—C35−1.6 (6)
N1—Mn1—N5—C32−81.7 (3)C33—C34—C35—C36−0.8 (6)
N8—Mn1—N5—C32−175.4 (3)C33—C34—C35—C37178.1 (4)
O3i—Mn1—N5—C36−79.9 (3)C32—N5—C36—C35−2.0 (5)
O1—Mn1—N5—C36−177.2 (2)Mn1—N5—C36—C35−179.7 (3)
N4—Mn1—N5—C3652.6 (4)C32—N5—C36—C47176.5 (3)
N1—Mn1—N5—C3695.8 (2)Mn1—N5—C36—C47−1.1 (4)
N8—Mn1—N5—C362.0 (2)C34—C35—C36—N52.7 (5)
O3i—Mn1—N8—C50−75.1 (3)C37—C35—C36—N5−176.3 (3)
O1—Mn1—N8—C50−177.4 (5)C34—C35—C36—C47−175.9 (3)
N4—Mn1—N8—C5016.5 (3)C37—C35—C36—C475.2 (5)
N5—Mn1—N8—C50178.3 (3)C38—N6—C37—C450.4 (4)
N1—Mn1—N8—C5090.0 (3)C38—N6—C37—C35−179.4 (4)
O3i—Mn1—N8—C47103.7 (2)C36—C35—C37—C45−3.0 (5)
O1—Mn1—N8—C471.5 (7)C34—C35—C37—C45178.1 (4)
N4—Mn1—N8—C47−164.6 (2)C36—C35—C37—N6176.8 (4)
N5—Mn1—N8—C47−2.8 (2)C34—C35—C37—N6−2.1 (7)
N1—Mn1—N8—C47−91.1 (2)C45—N7—C38—N6−0.3 (4)
Mn1—O1—C1—O2−80.7 (4)C45—N7—C38—C39−179.8 (4)
Mn1—O1—C1—C296.7 (3)C37—N6—C38—N7−0.1 (4)
O2—C1—C2—C337.7 (5)C37—N6—C38—C39179.4 (3)
O1—C1—C2—C3−139.9 (4)N7—C38—C39—C443.9 (6)
O2—C1—C2—C11−146.9 (4)N6—C38—C39—C44−175.5 (4)
O1—C1—C2—C1135.6 (5)N7—C38—C39—C40−176.9 (4)
C11—C2—C3—C4−0.8 (6)N6—C38—C39—C403.7 (6)
C1—C2—C3—C4174.8 (3)C44—C39—C40—C41−0.6 (6)
C2—C3—C4—C5−4.7 (6)C38—C39—C40—C41−179.8 (4)
C3—C4—C5—C63.8 (6)C39—C40—C41—C420.2 (6)
C3—C4—C5—C12−179.4 (4)C40—C41—C42—O6−178.9 (4)
C4—C5—C6—C7−179.9 (4)C40—C41—C42—C430.4 (6)
C12—C5—C6—C73.4 (6)O6—C42—C43—C44178.7 (4)
C4—C5—C6—C112.4 (6)C41—C42—C43—C44−0.6 (6)
C12—C5—C6—C11−174.3 (3)C42—C43—C44—C390.2 (7)
C5—C6—C7—C8−174.5 (4)C40—C39—C44—C430.3 (6)
C11—C6—C7—C83.3 (6)C38—C39—C44—C43179.6 (4)
C6—C7—C8—C93.1 (7)N6—C37—C45—N7−0.7 (4)
C7—C8—C9—C10−4.7 (7)C35—C37—C45—N7179.2 (3)
C8—C9—C10—C11−0.3 (6)N6—C37—C45—C46178.6 (3)
C9—C10—C11—C2−175.8 (4)C35—C37—C45—C46−1.6 (6)
C9—C10—C11—C66.6 (5)C38—N7—C45—C370.6 (4)
C3—C2—C11—C10−170.6 (3)C38—N7—C45—C46−178.5 (4)
C1—C2—C11—C1014.0 (5)C37—C45—C46—C473.9 (5)
C3—C2—C11—C66.9 (5)N7—C45—C46—C47−177.1 (3)
C1—C2—C11—C6−168.4 (3)C37—C45—C46—C48−173.3 (3)
C5—C6—C11—C10169.9 (3)N7—C45—C46—C485.8 (6)
C7—C6—C11—C10−8.0 (5)C50—N8—C47—C462.4 (5)
C5—C6—C11—C2−7.8 (5)Mn1—N8—C47—C46−176.6 (2)
C7—C6—C11—C2174.4 (3)C50—N8—C47—C36−177.8 (3)
Mn1ii—O3—C12—O453.9 (8)Mn1—N8—C47—C363.3 (4)
Mn1ii—O3—C12—C5−126.4 (4)C48—C46—C47—N8−4.4 (5)
C4—C5—C12—O4113.9 (6)C45—C46—C47—N8178.2 (3)
C6—C5—C12—O4−69.4 (7)C48—C46—C47—C36175.8 (3)
C4—C5—C12—O3−65.9 (6)C45—C46—C47—C36−1.6 (5)
C6—C5—C12—O3110.9 (5)N5—C36—C47—N8−1.5 (4)
C17—N1—C13—C14−0.2 (6)C35—C36—C47—N8177.1 (3)
Mn1—N1—C13—C14176.1 (3)N5—C36—C47—C46178.4 (3)
N1—C13—C14—C150.8 (6)C35—C36—C47—C46−3.0 (5)
C13—C14—C15—C16−1.0 (6)C47—C46—C48—C492.6 (5)
C14—C15—C16—C170.6 (5)C45—C46—C48—C49179.7 (4)
C14—C15—C16—C18−179.1 (3)C46—C48—C49—C501.0 (6)
C13—N1—C17—C16−0.3 (5)C47—N8—C50—C491.5 (5)
Mn1—N1—C17—C16−176.9 (2)Mn1—N8—C50—C49−179.7 (3)
C13—N1—C17—C28178.3 (3)C48—C49—C50—N8−3.2 (6)
Mn1—N1—C17—C281.7 (4)O8—C51—C52—C53127.7 (3)
C15—C16—C17—N10.1 (5)O7—C51—C52—C53−52.4 (3)
C18—C16—C17—N1179.8 (3)O8—C51—C52—C57−54.2 (3)
C15—C16—C17—C28−178.5 (3)O7—C51—C52—C57125.7 (3)
C18—C16—C17—C281.2 (5)C57—C52—C53—C540.0
C19—N2—C18—C261.5 (4)C51—C52—C53—C54178.2 (2)
C19—N2—C18—C16179.4 (3)C52—C53—C54—C550.0
C17—C16—C18—C260.3 (5)C53—C54—C55—C560.0
C15—C16—C18—C26180.0 (3)C53—C54—C55—C62−175.3 (2)
C17—C16—C18—N2−177.4 (3)C54—C55—C56—C570.0
C15—C16—C18—N22.3 (6)C62—C55—C56—C57174.4 (2)
C18—N2—C19—N3−1.2 (4)C54—C55—C56—C61180.0
C18—N2—C19—C20179.2 (3)C62—C55—C56—C61−5.6 (2)
C26—N3—C19—N20.6 (4)C55—C56—C57—C58180.0
C26—N3—C19—C20−179.9 (3)C61—C56—C57—C580.0
N2—C19—C20—C25168.0 (3)C55—C56—C57—C520.0
N3—C19—C20—C25−11.5 (5)C61—C56—C57—C52180.0
N2—C19—C20—C21−12.3 (5)C53—C52—C57—C58180.0
N3—C19—C20—C21168.2 (3)C51—C52—C57—C582.0 (2)
C25—C20—C21—C22−0.4 (5)C53—C52—C57—C560.0
C19—C20—C21—C22179.9 (3)C51—C52—C57—C56−178.0 (2)
C20—C21—C22—C230.4 (6)C56—C57—C58—C590.0
C21—C22—C23—O5178.4 (3)C52—C57—C58—C59180.0
C21—C22—C23—C24−0.2 (5)C57—C58—C59—C600.0
O5—C23—C24—C25−178.8 (3)C58—C59—C60—C610.0
C22—C23—C24—C25−0.2 (6)C59—C60—C61—C560.0
C23—C24—C25—C200.2 (6)C55—C56—C61—C60180.0
C21—C20—C25—C240.0 (5)C57—C56—C61—C600.0
C19—C20—C25—C24179.8 (3)C54—C55—C62—O10−30.3 (3)
N2—C18—C26—N3−1.1 (4)C56—C55—C62—O10154.9 (3)
C16—C18—C26—N3−179.2 (3)C54—C55—C62—O9147.5 (3)
N2—C18—C26—C27176.2 (3)C56—C55—C62—O9−27.3 (3)
C16—C18—C26—C27−1.8 (5)
Symmetry codes: (i) x, −y+1, z+1/2; (ii) x, −y+1, z−1/2.
Hydrogen-bond geometry (Å, °) top
D—H···AD—HH···AD···AD—H···A
O5—H5O···N2iii0.821.932.737 (4)168
O6—H6O···O1Wiv0.821.852.656 (4)168
N3—H3N···O2v0.861.972.813 (4)166
N6—H6N···O90.862.002.728 (6)142
N7—H7N···O10vi0.861.832.685 (6)178
O1W—H1W2···O10.821.942.754 (4)173
O1W—H1W1···O4i0.822.193.007 (6)173
Symmetry codes: (iii) −x+3/2, y−1/2, −z+1/2; (iv) −x+1, −y+1, −z+1; (v) −x+3/2, −y+1/2, −z+1; (vi) −x+1, −y, −z+1; (i) x, −y+1, z+1/2.
Table 1
Selected geometric parameters (Å, °) top
Mn1—O12.146 (2)Mn1—N42.245 (3)
Mn1—O3i2.108 (2)Mn1—N52.265 (3)
Mn1—N12.282 (3)Mn1—N82.307 (3)
O1—Mn1—O3i95.0 (1)O3i—Mn1—N887.1 (1)
O1—Mn1—N187.1 (1)N1—Mn1—N473.4 (1)
O1—Mn1—N497.6 (1)N1—Mn1—N589.5 (1)
O1—Mn1—N597.9 (1)N1—Mn1—N893.4 (1)
O1—Mn1—N8169.9 (1)N4—Mn1—N5156.2 (1)
O3i—Mn1—N1165.2 (1)N4—Mn1—N892.2 (1)
O3i—Mn1—N491.8 (1)N5—Mn1—N872.0 (1)
O3i—Mn1—N5104.8 (1)
Symmetry codes: (i) x, −y+1, z+1/2.
Table 2
Hydrogen-bond geometry (Å, °) top
D—H···AD—HH···AD···AD—H···A
O5—H5O···N2ii0.821.932.737 (4)168
O6—H6O···O1Wiii0.821.852.656 (4)168
N3—H3N···O2iv0.861.972.813 (4)166
N6—H6N···O90.862.002.728 (6)142
N7—H7N···O10v0.861.832.685 (6)178
O1W—H1W2···O10.821.942.754 (4)173
O1W—H1W1···O4i0.822.193.007 (6)173
Symmetry codes: (ii) −x+3/2, y−1/2, −z+1/2; (iii) −x+1, −y+1, −z+1; (iv) −x+3/2, −y+1/2, −z+1; (v) −x+1, −y, −z+1; (i) x, −y+1, z+1/2.
Acknowledgements top

The authors thank the Natural Science Foundation of Jilin Province (grant No. 20060516), the Doctoral Foundation of Jilin Normal University (grant No. 2006006), the Science and Technology Institute Foundation of Siping City (grant No. 2005016), the Subject and Base Construction Foundation of Jilin Normal University (grant No. 2006041) and the University of Malaya for supporting this work.

references
References top

Barbour, L. J. (2001). J. Supramol. Chem. 1, 189–191.

Che, G.-B., Lin, X.-F. & Liu, C.-B. (2006). Acta Cryst. E62, m1456–m1458.

Dolomanov, O. V., Blake, A. J., Champness, N. R. & Schröder, M. (2003). J. Appl. Cryst. 36, 1283–1284.

Higashi, T. (1995). ABSCOR. Rigaku Corporation, Tokyo, Japan.

Li, H.-D., Liu, Y. X.-Y., Xu, M.-L. & Ng, S. W. (2008). Acta Cryst. E64, m704–m705.

Rigaku (1998). RAPID-AUTO. Rigaku Corporation, Tokyo, Japan.

Rigaku/MSC (2002). CrystalStructure. Rigaku/MSC, 9009 New Trails Drive, The Woodlands, TX 77381, USA.

Sheldrick, G. M. (2008). Acta Cryst. A64, 112–122.

Westrip, S. P. (2008). publCIF. In preparation.
