Figure 1

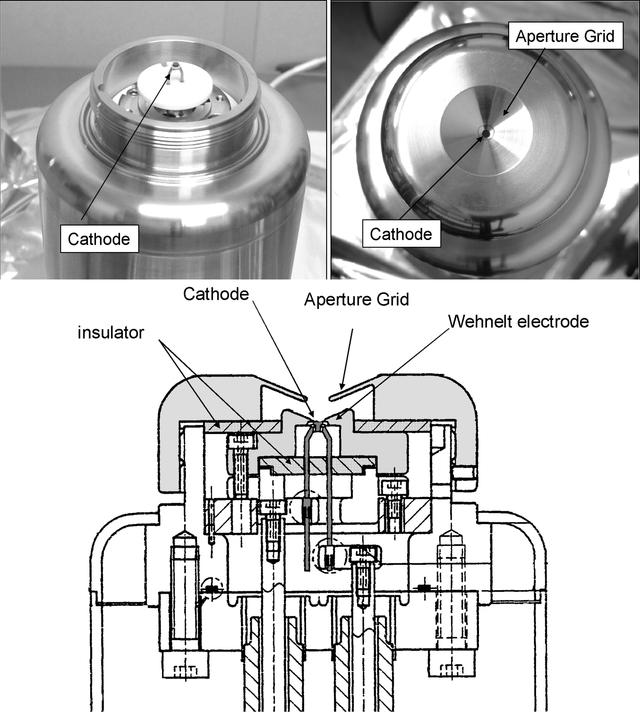

Images of the cathode-grid assembly and a cross-sectional view. The cathode, of diameter 2 mm, is located on the white ceramic insulator (left). The aperture grid is threaded into the top of a stem (right). The sectional drawing of the cathode-grid assembly shows the detailed structure of the electron gun (bottom).
