Synthesis and crystal structure of dibromidobis[1-butyl-4-(pyridin-2-yl)-1,2,4-triazol-5-ylidene]palladium(II)

Anes Kovacevic ^a ^* and Sean Parkin ^b

^aDepartment of Chemistry, Berea College, Berea, KY, 40404, USA, and ^bDepartment of Chemistry, University of Kentucky, Lexington, KY, 40506-0055, USA
^*Correspondence e-mail: [email protected]

Edited by X. Hao, Institute of Chemistry, Chinese Academy of Sciences (Received 14 September 2026; accepted 23 September 2026; online 2 October 2026)

The synthesis and structure of dibromidobis[1-butyl-4-(pyridin-2-yl)-1,2,4-triazol-5-ylidene]palladium(II), [PdBr₂(C₁₁H₁₄N₄)₂] (I), a triazolium-containing N-heterocyclic carbene (NHC), are presented. The compound was prepared by the direct base-free reaction of 1-butyl-4-(pyridin-2-yl)-1,2,4-triazolium bromide with Pd₂(dba)₃. The title compound crystallizes with the symmetry of space group P2₁/c, with the Pd^II atom on a centre of inversion, adopting a square-planar trans geometry. The structure is extensively disordered as a result of a ∼180° flip of the triazolium ligands, which effectively superimposes disordered n-butyl and pyridyl components. In the crystal, supramolecular interactions include pairs of intermolecular C—H⋯N weak hydrogen bonds between inversion-related pyridine rings [R²₂(6) motifs] to form mono-periodic chains parallel to [101]. There is also π-stacking of inversion-related triazole rings, which propagate to form chains in the [100] direction.

Keywords: crystal structure; synthesis; disorder.

CCDC reference: 2590397

1. Chemical context

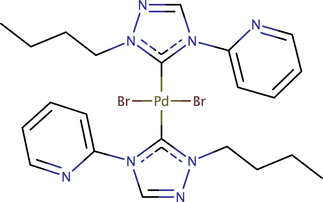

N-Heterocyclic carbenes (NHCs) have become important ligands in organometallic chemistry since the isolation of the first stable crystalline carbene by Arduengo and co-workers (Arduengo et al., 1991 ). Their strong σ-donor properties, readily tunable steric and electronic characteristics, and diverse coordination modes have led to extensive applications in transition-metal chemistry and catalysis (Crabtree, 2005 ; Fortman & Nolan, 2011 ; Díez-González et al., 2009 ). Both normal and abnormal coordination modes of NHCs have been investigated, with abnormal C5-bound NHCs shown to be particularly strong electron-donor ligands (Chianese et al., 2004 ). Palladium-NHC complexes have been particularly well studied because of their importance in homogeneous catalysis and coordination chemistry (Crabtree, 2005; Fortman & Nolan, 2011). Although imidazolium-derived NHC systems are well established, the coordination chemistry of triazolium-derived NHCs has received comparatively less attention (Kovacevic, Faller et al., 2025 ; Kovacevic, Parkin et al., 2025 ).

Recent studies have demonstrated that triazolium salts can exhibit both normal and abnormal coordination modes toward transition-metal centers. In particular, pyridyl-substituted triazolium ligands have been shown to display counter-ion-dependent coordination behavior at iridium (Kovacevic, Faller et al., 2025). More recently, 1,2,4-triazolium salts were shown to undergo direct C—H oxidative addition with Pd₂(dba)₃ under base-free conditions to give palladium(II) bis(NHC) complexes, which were isolated predominantly as trans-anti and trans-syn rotamers together with minor cis products (Kovacevic, Parkin et al., 2025).

As part of ongoing studies of the structural and electronic factors governing this class of palladium complexes, a pyridine-substituted triazolium salt was examined because the pyridyl group provides an additional potential coordination site. The title compound, bearing butyl and pyridyl substituents, was prepared by direct reaction of the triazolium salt with Pd₂(dba)₃ and crystallizes as the trans bis(NHC)palladium(II) isomer, I.

2. Structural commentary

The structure of I is centrosymmetric, space group P2₁/c, with Z′ = 0.5. In the chosen asymmetric unit, the Pd atom sits at (0.5, 0.5, 0.5) and is connected to Br1, Br1ⁱ, and C1, C1ⁱ [symmetry code: (i) 1 − x, 1 − y, 1 − z] atoms in a square-planar trans arrangement (Fig. 1). Although the PdBr₂ moiety is not disordered, the overall structure is extensively disordered, requiring modelling of four disorder component occupancies. The whole of the 1-butyl-4-pyridyl-1,2,4-triazolium ligand is disordered by an approximate 180° flip, effectively superimposing the n-butyl and pyridyl groups, and there is further disorder of one of the n-butyl components (Fig. 2). This complex disorder is handled with the PART, FVAR, and SUMP commands in SHELXL (Sheldrick, 2015b ) giving occupancy factors of 0.9251 (14) and 0.0749 (14) for the main ‘flip', with the major n-butyl component being further disordered over two sites with occupancies of 0.786 (2) and 0.138 (2). Given the low occupancies of the minor parts, the following description is restricted to the major components. The dihedral angle between the central PdBr₂C₂ core and the triazole is 72.99 (8)°, while that between the triazole and pyridyl rings is 33.25 (18)°.

Figure 1
An ellipsoid plot of I (50% probability) showing the molecular conformation of the major disorder component. Hydrogen atoms are drawn as small arbitrary spheres.

Figure 2
The nature of disorder in I. The major conformer is shown as a solid opaque ball-and-stick view, while the minor components are drawn with semi-transparent colours. Additional sub-disorder of the n-butyl group is shown with open semi-transparent atoms/bonds.

3. Supramolecular features

There are no conventional hydrogen bonds in the structure of I. The geometric criteria in PrimeXP (https://xray.uky.edu/Resources/primeXP.html; Parkin, 2026 ) suggest several C—H⋯Br contacts, which all stem from the Br1 atom residing in a pocket surrounded by disordered hydrogen atoms. Because these contacts involve low-occupancy hydrogens, they presumably lack the structural weight to exert major influence on the crystal packing. The interactions with the major component, C2—H2⋯Br1ⁱⁱⁱ [symmetry code: (iii) x + 1, y, z] and C5—H5⋯Br1^iv [symmetry code: (iv) −x + 1, $[{1\over 2}]$ + y, $[{1\over 2}]$ − z], are listed in Table 1, though structurally would be rather weak. There are also mutual pairs of C7—H7⋯N4ⁱⁱ [symmetry code: (ii) 2 − x, 1 − y, −z] interactions between inversion-related pyridine rings in an R₂²(6) motif (Etter et al., 1990 ), which combine to link molecules parallel to the [ $[\overline{1}]$ 01] direction, as shown in Fig. 3.

Table 1
Weak hydrogen bonds (Å, °) in I

D—H⋯A	D—H	H⋯A	D⋯A	D—H⋯A
C7—H7—N4ⁱⁱ	0.95	2.73	3.574 (4)	149.0
C2—H2⋯Br1ⁱⁱⁱ	0.95	2.82	3.653 (3)	147.6
C5—H5⋯Br1^iv	0.95	2.84	3.747 (3)	158.9
Symmetry codes: (ii) 2 − x, 1 − y, −z; (iii) x + 1, y, z; (i)= −x + 1, $[{1\over 2}]$ + y, $[{1\over 2}]$ − z.

Figure 3
Weak C—H⋯N4 hydrogen-bonded pairs form R₂²(6) ring motifs that join the molecules into chains parallel to [ $[\overline{1}]$ 01]. Hydrogen atoms not involved in the interaction are suppressed.

In addition to the weak hydrogen-bond constructs, the triazole rings are π-stacked with inversion-related (2 − x, 1 − y, 1 − z) copies to form chains that propagate along the a-axis direction (Fig. 4). In these pairs, the interplanar ring separation is 3.371 (5) Å and the ring centroid-centroid distance is 3.621 (5) Å.

Figure 4
The triazole rings of inversion-related adjacent molecules of I are π-stacked, forming chains that propagate parallel to the crystallographic a axis

4. Database survey

A search of the Cambridge Structural Database (CSD v2026.1.1 with updates through May 2026; Groom et al., 2016) using a search fragment consisting of a Pd atom with two ‘any' ligands and two 1,2,4-triazole rings attached by carbon returned 48 hits. Changing the two ‘any' ligands to ‘any halogen', gave 35 hits, while specifying these as bromine gave 25 matches. Of these 25, three had little in common with I. Of the remaining 22 structures, eight had an aromatic ring substituent attached directly to a nitrogen adjacent to the carbon bonded to Pd. These were CIKBOQ and CIKCAD, both with phenyl groups (Nguyen et al., 2018 ); JAXCUJ, JAXDEU (mesityl) and JAXDAQ, JAXDIY (2,6-diisopropylphenyl) (Nguyen et al., 2017 ); REYKEP (mesityl) and REYKIT (2,6-diisopropylphenyl) (Nguyen et al., 2022 ). The two remaining entries, UMAPIL and UMATEL (Kovacevic, Parkin et al., 2025), from our own laboratories, are cis and trans isomers, each having benzyl and n-butyl groups attached to their triazole rings. The trans isomer, UMATEL, has the most in common with I.

5. Synthesis and crystallization

The palladium complex was prepared by a procedure analogous to that reported previously for related palladium(II) bis(NHC) complexes derived from 1,2,4-triazolium salts (Kovacevic, Parkin et al., 2025). A mixture of 1-butyl-4-(pyridin-2-yl)-1,2,4-triazolium bromide (74 mg, 0.26 mmol) and Pd₂(dba)₃ (62 mg, 0.068 mmol) was refluxed in anhydrous THF (5 mL) for 3 h. After cooling, THF was removed under reduced pressure. The residue was dissolved in a minimal amount of dichloromethane and filtered through celite. Upon addition of diethyl ether, the palladium complex precipitated and was isolated (37 mg, 43%). Crystals suitable for X-ray diffraction were obtained from a dichloromethane/diethyl ether solution.

¹H NMR (acetone-d₆, 298 K): δ 9.69 (d, 2H, H_pyr), 9.62 (s, 2H, H_trz), 8.46 (t, 2H, H_pyr), 8.32 (d, 2H, H_pyr), 7.73 (m, 2H, H_pyr), 5.00 (t, 4H, H_CH2-Bu), 1.91 (m, 4H, H_CH2-Bu), 1.44 (m, 4H, H_CH2-Bu), 0.96 (t, 6H, H_CH3-Bu).

6. Refinement

Crystal data, data collection and structure refinement details are summarized in Table 2. H atoms were found in difference-Fourier maps, but subsequently included in the refinement using riding models, with constrained distances set to 0.95 Å (Csp²—H), 0.98 Å (RCH₃) and 0.99 Å (R₂CH₂). U_iso(H) parameters were set to values of either 1.2U_eq or 1.5U_eq (RCH₃ only) of the attached atom.

Table 2
Experimental details

Crystal data
Chemical formula	[PdBr₂(C₁₁H₁₄N₄)₂]
M_r	670.74
Crystal system, space group	Monoclinic, P2₁/c
Temperature (K)	100
a, b, c (Å)	8.1911 (2), 14.9855 (3), 10.2521 (3)
β (°)	90.730 (1)
V (Å³)	1258.32 (5)
Z	2
Radiation type	Mo Kα
μ (mm⁻¹)	3.94
Crystal size (mm)	0.12 × 0.12 × 0.02

Data collection
Diffractometer	Bruker D8 Venture dual source
Absorption correction	Multi-scan (SADABS; Krause et al., 2015 )
T_min, T_max	0.734, 0.862
No. of measured, independent and observed [I > 2σ(I)] reflections	22432, 3131, 2541
R_int	0.036
(sin θ/λ)_max (Å⁻¹)	0.667

Refinement
R[F² > 2σ(F²)], wR(F²), S	0.026, 0.047, 1.04
No. of reflections	3131
No. of parameters	312
No. of restraints	892
H-atom treatment	H-atom parameters constrained
Δρ_max, Δρ_min (e Å⁻³)	0.56, −0.50
Computer programs: APEX5 (Bruker, 2023 ), SHELXT (Sheldrick, 2015a ), SHELXL2025/1 (Sheldrick, 2015b), PrimeXP (Parkin, 2026), SHELX (Sheldrick, 2008 ), PLATON (Spek, 2020 ) and publCIF (Westrip, 2010 ).

To ensure satisfactory refinement for disordered groups in the structure, a combination of constraints and restraints were employed. The constraints (SHELXL commands EXYZ and EADP) were used to fix overlapping fragments. Restraints were used to ensure the integrity of ill-defined or disordered groups (SHELXL commands SAME, SADI, FLAT, SIMU, RIGU, and SUMP).

Supporting information

CCDC reference: 2590397

Crystal structure: contains datablocks I, global. DOI: https://doi.org/10.1107/S2056989026009928/nx2039sup1.cif

Structure factors: contains datablock I. DOI: https://doi.org/10.1107/S2056989026009928/nx2039Isup2.hkl

checkCIF report

Computing details top

Dibromidobis[1-butyl-4-(pyridin-2-yl)-1,2,4-triazol-5-ylidene]palladium(II) top

Crystal data top

[PdBr₂(C₁₁H₁₄N₄)₂]	F(000) = 664
M_r = 670.74	D_x = 1.770 Mg m⁻³
Monoclinic, P2₁/c	Mo Kα radiation, λ = 0.71073 Å
a = 8.1911 (2) Å	Cell parameters from 9922 reflections
b = 14.9855 (3) Å	θ = 2.5–28.3°
c = 10.2521 (3) Å	µ = 3.94 mm⁻¹
β = 90.730 (1)°	T = 100 K
V = 1258.32 (5) Å³	Plate, yellow
Z = 2	0.12 × 0.12 × 0.02 mm

Data collection top

Bruker D8 Venture dual source diffractometer	3131 independent reflections
Radiation source: microsource	2541 reflections with I > 2σ(I)
Detector resolution: 7.41 pixels mm^-1	R_int = 0.036
φ and ω scans	θ_max = 28.3°, θ_min = 2.5°
Absorption correction: multi-scan (SADABS; Krause et al., 2015)	h = −10→10
T_min = 0.734, T_max = 0.862	k = −18→20
22432 measured reflections	l = −13→13

Refinement top

Refinement on F²	Secondary atom site location: difference Fourier map
Least-squares matrix: full	Hydrogen site location: difference Fourier map
R[F² > 2σ(F²)] = 0.026	H-atom parameters constrained
wR(F²) = 0.047	w = 1/[σ²(F_o²) + (0.0153P)² + 0.1867P] where P = (F_o² + 2F_c²)/3
S = 1.04	(Δ/σ)_max < 0.001
3131 reflections	Δρ_max = 0.56 e Å⁻³
312 parameters	Δρ_min = −0.50 e Å⁻³
892 restraints	Extinction correction: SHELXL2025/1 (Sheldrick 2015b), Fc^*=kFc[1+0.001xFc²λ³/sin(2θ)]^-1/4
Primary atom site location: structure-invariant direct methods	Extinction coefficient: 0.0011 (3)

Special details top

Experimental. The crystal was mounted using polyisobutene oil on the tip of a fine glass fibre, which was fastened in a copper mounting pin with electrical solder. It was placed directly into the cold gas stream of a liquid-nitrogen based cryostat (Hope, 1994; Parkin & Hope, 1998).

Diffraction data were collected with the crystal at 100K.

Geometry. All esds (except the esd in the dihedral angle between two l.s. planes) are estimated using the full covariance matrix. The cell esds are taken into account individually in the estimation of esds in distances, angles and torsion angles; correlations between esds in cell parameters are only used when they are defined by crystal symmetry. An approximate (isotropic) treatment of cell esds is used for estimating esds involving l.s. planes.

Refinement. Refinement progress was checked using Platon (Spek, 2020) and by an R-tensor (Parkin, 2000). The final model was further checked with the IUCr utility checkCIF.

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å²) top

	x	y	z	U_iso*/U_eq	Occ. (<1)
Pd1	0.500000	0.500000	0.500000	0.02105 (8)
Br1	0.40050 (3)	0.42570 (2)	0.30425 (3)	0.02899 (9)
C1	0.7252 (3)	0.45029 (16)	0.4652 (3)	0.0203 (6)	0.9251 (14)
N1	0.8016 (2)	0.38293 (13)	0.5270 (2)	0.0239 (5)	0.786 (2)
N2	0.9510 (2)	0.36100 (14)	0.4750 (2)	0.0284 (5)	0.9251 (14)
C2	0.9663 (4)	0.4174 (2)	0.3803 (5)	0.0233 (10)	0.9251 (14)
H2	1.058284	0.420338	0.324947	0.028*	0.9251 (14)
N3	0.8323 (2)	0.47247 (13)	0.3701 (2)	0.0209 (5)	0.9251 (14)
C3	0.8187 (3)	0.54327 (16)	0.2772 (3)	0.0231 (6)	0.9251 (14)
C4	0.7433 (3)	0.62269 (17)	0.3100 (3)	0.0281 (7)	0.9251 (14)
H4	0.694942	0.631301	0.392760	0.034*	0.9251 (14)
C5	0.7418 (4)	0.6885 (2)	0.2165 (3)	0.0373 (7)	0.9251 (14)
H5	0.690636	0.744185	0.232663	0.045*	0.9251 (14)
C6	0.8168 (9)	0.6720 (5)	0.0977 (4)	0.0474 (10)	0.9251 (14)
H6	0.817328	0.716481	0.031685	0.057*	0.9251 (14)
C7	0.8877 (4)	0.59314 (19)	0.0773 (3)	0.0374 (7)	0.9251 (14)
H7	0.938351	0.583436	−0.004319	0.045*	0.9251 (14)
N4	0.8919 (3)	0.52663 (14)	0.1652 (2)	0.0297 (6)	0.9251 (14)
C8	0.7448 (4)	0.33224 (19)	0.6399 (3)	0.0289 (7)	0.786 (2)
H8A	0.634528	0.353285	0.663740	0.035*	0.786 (2)
H8B	0.819062	0.343306	0.715075	0.035*	0.786 (2)
C9	0.7384 (4)	0.2323 (2)	0.6120 (3)	0.0287 (7)	0.786 (2)
H9A	0.848445	0.211937	0.586546	0.034*	0.786 (2)
H9B	0.708953	0.200518	0.692950	0.034*	0.786 (2)
C10	0.6175 (4)	0.2074 (2)	0.5053 (3)	0.0342 (8)	0.786 (2)
H10A	0.642979	0.242014	0.425849	0.041*	0.786 (2)
H10B	0.506567	0.224609	0.533056	0.041*	0.786 (2)
C11	0.6178 (5)	0.1089 (2)	0.4718 (5)	0.0336 (10)	0.786 (2)
H11A	0.727677	0.090946	0.445635	0.050*	0.786 (2)
H11B	0.540608	0.097791	0.399785	0.050*	0.786 (2)
H11C	0.585286	0.074257	0.548257	0.050*	0.786 (2)
C1'	0.726 (3)	0.4823 (14)	0.431 (4)	0.021 (2)	0.0749 (14)
N1'	0.824 (2)	0.5404 (12)	0.369 (3)	0.022 (2)	0.0749 (14)
N2'	0.974 (2)	0.5043 (13)	0.341 (3)	0.022 (2)	0.0749 (14)
C2'	0.950 (6)	0.4196 (18)	0.362 (7)	0.023 (2)	0.0749 (14)
H2'	1.016079	0.373051	0.328939	0.028*	0.0749 (14)
N3'	0.814 (3)	0.4066 (11)	0.438 (3)	0.0218 (19)	0.0749 (14)
C3'	0.764 (3)	0.3245 (12)	0.493 (2)	0.0252 (18)	0.0749 (14)
C4'	0.699 (3)	0.3216 (18)	0.617 (2)	0.027 (2)	0.0749 (14)
H4'	0.678681	0.375064	0.664320	0.033*	0.0749 (14)
C5'	0.664 (4)	0.2403 (16)	0.671 (3)	0.030 (2)	0.0749 (14)
H5'	0.620697	0.235038	0.756168	0.036*	0.0749 (14)
C6'	0.696 (4)	0.1660 (16)	0.595 (3)	0.031 (2)	0.0749 (14)
H6'	0.673999	0.108030	0.627854	0.038*	0.0749 (14)
C7'	0.758 (4)	0.1750 (15)	0.476 (3)	0.031 (2)	0.0749 (14)
H7'	0.771352	0.122569	0.424910	0.037*	0.0749 (14)
N4'	0.802 (3)	0.2536 (12)	0.423 (2)	0.029 (3)	0.0749 (14)
C8'	0.787 (5)	0.6339 (15)	0.342 (3)	0.027 (2)	0.0749 (14)
H8'1	0.888076	0.669626	0.349784	0.033*	0.0749 (14)
H8'2	0.709034	0.656259	0.407889	0.033*	0.0749 (14)
C9'	0.713 (4)	0.645 (2)	0.205 (3)	0.032 (2)	0.0749 (14)
H9'1	0.674704	0.586046	0.173898	0.039*	0.0749 (14)
H9'2	0.615838	0.684394	0.211027	0.039*	0.0749 (14)
C10'	0.828 (10)	0.684 (6)	0.107 (3)	0.037 (3)	0.0749 (14)
H10C	0.941426	0.672849	0.138950	0.045*	0.0749 (14)
H10D	0.811869	0.749012	0.104364	0.045*	0.0749 (14)
C11'	0.813 (4)	0.648 (2)	−0.031 (3)	0.040 (5)	0.0749 (14)
H11D	0.893973	0.677265	−0.085904	0.060*	0.0749 (14)
H11E	0.833350	0.583340	−0.030197	0.060*	0.0749 (14)
H11F	0.703383	0.659743	−0.064893	0.060*	0.0749 (14)
N1"	0.8016 (2)	0.38293 (13)	0.5270 (2)	0.0239 (5)	0.139 (2)
C8"	0.7448 (4)	0.33224 (19)	0.6399 (3)	0.0289 (7)	0.139 (2)
H8"1	0.677966	0.371021	0.696345	0.035*	0.139 (2)
H8"2	0.839396	0.310427	0.691764	0.035*	0.139 (2)
C9"	0.642 (2)	0.2524 (9)	0.5907 (19)	0.0294 (18)	0.139 (2)
H9"1	0.582020	0.225721	0.664508	0.035*	0.139 (2)
H9"2	0.560161	0.273391	0.525372	0.035*	0.139 (2)
C10"	0.751 (2)	0.1828 (10)	0.530 (2)	0.032 (2)	0.139 (2)
H10E	0.801142	0.209047	0.451412	0.038*	0.139 (2)
H10F	0.839796	0.168514	0.592450	0.038*	0.139 (2)
C11"	0.667 (3)	0.0969 (14)	0.491 (3)	0.0336 (10)	0.139 (2)
H11G	0.747422	0.056273	0.452410	0.050*	0.139 (2)
H11H	0.619637	0.068946	0.567734	0.050*	0.139 (2)
H11I	0.580886	0.109580	0.426342	0.050*	0.139 (2)

Atomic displacement parameters (Å²) top

	U¹¹	U²²	U³³	U¹²	U¹³	U²³
Pd1	0.01699 (13)	0.01911 (13)	0.02729 (17)	−0.00128 (10)	0.01001 (11)	−0.00499 (11)
Br1	0.02313 (14)	0.02974 (14)	0.03430 (18)	−0.00239 (10)	0.00832 (11)	−0.01150 (11)
C1	0.0206 (13)	0.0177 (13)	0.0229 (16)	−0.0023 (10)	0.0066 (11)	−0.0029 (10)
N1	0.0221 (11)	0.0236 (11)	0.0262 (13)	0.0033 (8)	0.0081 (10)	0.0004 (9)
N2	0.0222 (11)	0.0284 (11)	0.0348 (15)	0.0050 (9)	0.0086 (10)	0.0007 (10)
C2	0.0170 (14)	0.0272 (13)	0.026 (2)	0.0038 (11)	0.0062 (15)	−0.0013 (12)
N3	0.0191 (10)	0.019 (1)	0.0248 (13)	−0.0002 (8)	0.0072 (9)	−0.0025 (9)
C3	0.0176 (12)	0.0200 (12)	0.0317 (17)	−0.0053 (9)	0.0047 (12)	0.0022 (11)
C4	0.0264 (17)	0.0229 (13)	0.0353 (19)	0.0000 (11)	0.0087 (13)	0.0005 (12)
C5	0.0339 (16)	0.0275 (14)	0.051 (2)	0.0002 (13)	0.0063 (15)	0.0074 (14)
C6	0.046 (2)	0.045 (3)	0.052 (2)	−0.0111 (16)	0.0079 (18)	0.0163 (17)
C7	0.0389 (17)	0.0432 (17)	0.0303 (18)	0.0001 (13)	0.0119 (14)	0.0117 (13)
N4	0.0287 (12)	0.0284 (12)	0.0321 (15)	−0.0011 (9)	0.0115 (11)	0.0039 (10)
C8	0.0336 (16)	0.0274 (13)	0.0260 (16)	0.0032 (11)	0.0091 (12)	0.0033 (11)
C9	0.0330 (17)	0.0254 (15)	0.0279 (18)	0.0030 (13)	0.0073 (15)	0.0051 (13)
C10	0.0397 (18)	0.0292 (16)	0.034 (2)	0.0007 (14)	0.0038 (15)	0.0031 (14)
C11	0.041 (3)	0.0288 (17)	0.031 (2)	−0.0010 (16)	0.0031 (19)	0.0026 (15)
C1'	0.020 (4)	0.019 (4)	0.024 (4)	−0.002 (3)	0.007 (4)	−0.001 (4)
N1'	0.018 (4)	0.019 (3)	0.028 (4)	−0.003 (3)	0.008 (4)	−0.001 (4)
N2'	0.020 (4)	0.022 (4)	0.025 (4)	0.001 (3)	0.009 (4)	−0.003 (4)
C2'	0.020 (4)	0.024 (4)	0.026 (5)	0.001 (4)	0.008 (4)	−0.001 (4)
N3'	0.020 (3)	0.021 (3)	0.024 (4)	0.000 (3)	0.007 (3)	−0.002 (3)
C3'	0.026 (3)	0.024 (3)	0.026 (3)	0.002 (3)	0.008 (3)	0.003 (3)
C4'	0.029 (4)	0.027 (4)	0.026 (4)	0.002 (4)	0.009 (4)	0.004 (4)
C5'	0.035 (4)	0.027 (3)	0.029 (4)	0.002 (4)	0.008 (4)	0.004 (3)
C6'	0.037 (4)	0.027 (4)	0.031 (4)	0.000 (4)	0.008 (4)	0.003 (4)
C7'	0.037 (4)	0.026 (4)	0.029 (4)	0.000 (4)	0.007 (4)	0.002 (4)
N4'	0.033 (5)	0.025 (4)	0.030 (5)	0.001 (5)	0.010 (5)	0.002 (4)
C8'	0.024 (5)	0.020 (4)	0.038 (4)	−0.001 (4)	0.009 (4)	0.001 (4)
C9'	0.030 (4)	0.025 (4)	0.042 (4)	−0.003 (4)	0.006 (4)	0.005 (4)
C10'	0.036 (5)	0.034 (5)	0.043 (5)	−0.005 (5)	0.006 (5)	0.010 (5)
C11'	0.036 (10)	0.045 (10)	0.039 (7)	−0.013 (10)	0.006 (8)	0.012 (8)
N1"	0.0221 (11)	0.0236 (11)	0.0262 (13)	0.0033 (8)	0.0081 (10)	0.0004 (9)
C8"	0.0336 (16)	0.0274 (13)	0.0260 (16)	0.0032 (11)	0.0091 (12)	0.0033 (11)
C9"	0.033 (3)	0.027 (3)	0.028 (4)	0.002 (3)	0.009 (3)	0.004 (3)
C10"	0.038 (4)	0.027 (3)	0.030 (4)	0.001 (3)	0.009 (4)	0.004 (4)
C11"	0.041 (3)	0.0288 (17)	0.031 (2)	−0.0010 (16)	0.0031 (19)	0.0026 (15)

Geometric parameters (Å, º) top

Pd1—C1'ⁱ	2.006 (15)	N2'—C2'	1.30 (2)
Pd1—C1'	2.006 (15)	C2'—N3'	1.381 (18)
Pd1—C1ⁱ	2.025 (2)	C2'—H2'	0.9500
Pd1—C1	2.025 (2)	N3'—C3'	1.416 (16)
Pd1—Br1	2.4269 (3)	C3'—N4'	1.324 (17)
Pd1—Br1ⁱ	2.4269 (3)	C3'—C4'	1.387 (18)
C1—N1	1.342 (3)	C4'—C5'	1.368 (19)
C1—N3	1.361 (3)	C4'—H4'	0.9500
N1—N2	1.381 (3)	C5'—C6'	1.388 (19)
N1—C8	1.465 (4)	C5'—H5'	0.9500
N2—C2	1.294 (4)	C6'—C7'	1.33 (2)
C2—N3	1.377 (4)	C6'—H6'	0.9500
C2—H2	0.9500	C7'—N4'	1.350 (18)
N3—C3	1.429 (3)	C7'—H7'	0.9500
C3—N4	1.327 (3)	C8'—C9'	1.531 (18)
C3—C4	1.384 (4)	C8'—H8'1	0.9900
C4—C5	1.374 (4)	C8'—H8'2	0.9900
C4—H4	0.9500	C9'—C10'	1.51 (2)
C5—C6	1.393 (5)	C9'—H9'1	0.9900
C5—H5	0.9500	C9'—H9'2	0.9900
C6—C7	1.334 (9)	C10'—C11'	1.52 (2)
C6—H6	0.9500	C10'—H10C	0.9900
C7—N4	1.343 (3)	C10'—H10D	0.9900
C7—H7	0.9500	C11'—H11D	0.9800
C8—C9	1.525 (4)	C11'—H11E	0.9800
C8—H8A	0.9900	C11'—H11F	0.9800
C8—H8B	0.9900	N1"—C8"	1.465 (4)
C9—C10	1.512 (5)	C8"—C9"	1.546 (13)
C9—H9A	0.9900	C8"—H8"1	0.9900
C9—H9B	0.9900	C8"—H8"2	0.9900
C10—C11	1.516 (4)	C9"—C10"	1.514 (16)
C10—H10A	0.9900	C9"—H9"1	0.9900
C10—H10B	0.9900	C9"—H9"2	0.9900
C11—H11A	0.9800	C10"—C11"	1.509 (17)
C11—H11B	0.9800	C10"—H10E	0.9900
C11—H11C	0.9800	C10"—H10F	0.9900
C1'—N3'	1.347 (17)	C11"—H11G	0.9800
C1'—N1'	1.350 (17)	C11"—H11H	0.9800
N1'—N2'	1.380 (17)	C11"—H11I	0.9800
N1'—C8'	1.457 (16)

C1'ⁱ—Pd1—C1'	180.0 (12)	N2'—C2'—H2'	124.5
C1ⁱ—Pd1—C1	180.0	N3'—C2'—H2'	124.5
C1'ⁱ—Pd1—Br1	93.0 (11)	C1'—N3'—C2'	106.5 (17)
C1'—Pd1—Br1	87.0 (11)	C1'—N3'—C3'	126.5 (18)
C1ⁱ—Pd1—Br1	90.99 (8)	C2'—N3'—C3'	126.0 (18)
C1—Pd1—Br1	89.01 (8)	N4'—C3'—C4'	124.8 (17)
C1ⁱ—Pd1—Br1ⁱ	89.01 (8)	N4'—C3'—N3'	114.1 (17)
C1—Pd1—Br1ⁱ	90.99 (8)	C4'—C3'—N3'	120.5 (19)
Br1—Pd1—Br1ⁱ	180.0	C5'—C4'—C3'	119 (2)
N1—C1—N3	102.8 (2)	C5'—C4'—H4'	120.6
N1—C1—Pd1	127.85 (19)	C3'—C4'—H4'	120.6
N3—C1—Pd1	129.27 (18)	C4'—C5'—C6'	117 (2)
C1—N1—N2	114.0 (2)	C4'—C5'—H5'	121.7
C1—N1—C8	127.7 (2)	C6'—C5'—H5'	121.7
N2—N1—C8	118.3 (2)	C7'—C6'—C5'	121 (2)
C2—N2—N1	103.2 (2)	C7'—C6'—H6'	119.7
N2—C2—N3	111.3 (3)	C5'—C6'—H6'	119.7
N2—C2—H2	124.3	C6'—C7'—N4'	124 (2)
N3—C2—H2	124.3	C6'—C7'—H7'	117.8
C1—N3—C2	108.6 (2)	N4'—C7'—H7'	117.8
C1—N3—C3	127.8 (2)	C3'—N4'—C7'	114.5 (18)
C2—N3—C3	123.5 (2)	N1'—C8'—C9'	111 (2)
N4—C3—C4	125.4 (3)	N1'—C8'—H8'1	109.5
N4—C3—N3	113.9 (2)	C9'—C8'—H8'1	109.5
C4—C3—N3	120.6 (3)	N1'—C8'—H8'2	109.5
C5—C4—C3	116.6 (3)	C9'—C8'—H8'2	109.5
C5—C4—H4	121.7	H8'1—C8'—H8'2	108.1
C3—C4—H4	121.7	C10'—C9'—C8'	114 (3)
C4—C5—C6	118.8 (4)	C10'—C9'—H9'1	108.7
C4—C5—H5	120.6	C8'—C9'—H9'1	108.7
C6—C5—H5	120.6	C10'—C9'—H9'2	108.7
C7—C6—C5	119.4 (5)	C8'—C9'—H9'2	108.7
C7—C6—H6	120.3	H9'1—C9'—H9'2	107.6
C5—C6—H6	120.3	C9'—C10'—C11'	116 (3)
C6—C7—N4	124.0 (3)	C9'—C10'—H10C	108.2
C6—C7—H7	118.0	C11'—C10'—H10C	108.2
N4—C7—H7	118.0	C9'—C10'—H10D	108.2
C3—N4—C7	115.7 (2)	C11'—C10'—H10D	108.2
N1—C8—C9	111.8 (2)	H10C—C10'—H10D	107.4
N1—C8—H8A	109.3	C10'—C11'—H11D	109.5
C9—C8—H8A	109.3	C10'—C11'—H11E	109.5
N1—C8—H8B	109.3	H11D—C11'—H11E	109.5
C9—C8—H8B	109.3	C10'—C11'—H11F	109.5
H8A—C8—H8B	107.9	H11D—C11'—H11F	109.5
C10—C9—C8	113.5 (3)	H11E—C11'—H11F	109.5
C10—C9—H9A	108.9	N1"—C8"—C9"	108.7 (8)
C8—C9—H9A	108.9	N1"—C8"—H8"1	109.9
C10—C9—H9B	108.9	C9"—C8"—H8"1	109.9
C8—C9—H9B	108.9	N1"—C8"—H8"2	109.9
H9A—C9—H9B	107.7	C9"—C8"—H8"2	109.9
C9—C10—C11	113.7 (3)	H8"1—C8"—H8"2	108.3
C9—C10—H10A	108.8	C10"—C9"—C8"	110.2 (12)
C11—C10—H10A	108.8	C10"—C9"—H9"1	109.6
C9—C10—H10B	108.8	C8"—C9"—H9"1	109.6
C11—C10—H10B	108.8	C10"—C9"—H9"2	109.6
H10A—C10—H10B	107.7	C8"—C9"—H9"2	109.6
C10—C11—H11A	109.5	H9"1—C9"—H9"2	108.1
C10—C11—H11B	109.5	C11"—C10"—C9"	115.5 (17)
H11A—C11—H11B	109.5	C11"—C10"—H10E	108.4
C10—C11—H11C	109.5	C9"—C10"—H10E	108.4
H11A—C11—H11C	109.5	C11"—C10"—H10F	108.4
H11B—C11—H11C	109.5	C9"—C10"—H10F	108.4
N3'—C1'—N1'	104.3 (13)	H10E—C10"—H10F	107.5
N3'—C1'—Pd1	126.1 (14)	C10"—C11"—H11G	109.5
N1'—C1'—Pd1	129.6 (13)	C10"—C11"—H11H	109.5
C1'—N1'—N2'	112.4 (14)	H11G—C11"—H11H	109.5
C1'—N1'—C8'	126 (2)	C10"—C11"—H11I	109.5
N2'—N1'—C8'	122 (2)	H11G—C11"—H11I	109.5
C2'—N2'—N1'	102.0 (17)	H11H—C11"—H11I	109.5
N2'—C2'—N3'	110.9 (19)

N3—C1—N1—N2	−0.5 (3)	Pd1—C1'—N1'—N2'	177 (3)
Pd1—C1—N1—N2	176.12 (18)	N3'—C1'—N1'—C8'	−177 (3)
N3—C1—N1—C8	179.5 (2)	Pd1—C1'—N1'—C8'	3 (5)
Pd1—C1—N1—C8	−4.0 (4)	C1'—N1'—N2'—C2'	13 (5)
C1—N1—N2—C2	0.8 (3)	C8'—N1'—N2'—C2'	−172 (4)
C8—N1—N2—C2	−179.1 (3)	N1'—N2'—C2'—N3'	−19 (7)
N1—N2—C2—N3	−0.8 (4)	N1'—C1'—N3'—C2'	−9 (5)
N1—C1—N3—C2	−0.1 (3)	Pd1—C1'—N3'—C2'	171 (4)
Pd1—C1—N3—C2	−176.6 (3)	N1'—C1'—N3'—C3'	−179 (3)
N1—C1—N3—C3	−176.9 (2)	Pd1—C1'—N3'—C3'	2 (5)
Pd1—C1—N3—C3	6.6 (4)	N2'—C2'—N3'—C1'	19 (7)
N2—C2—N3—C1	0.6 (4)	N2'—C2'—N3'—C3'	−172 (4)
N2—C2—N3—C3	177.6 (3)	C1'—N3'—C3'—N4'	136 (3)
C1—N3—C3—N4	−150.6 (2)	C2'—N3'—C3'—N4'	−31 (6)
C2—N3—C3—N4	33.1 (4)	C1'—N3'—C3'—C4'	−51 (4)
C1—N3—C3—C4	33.2 (4)	C2'—N3'—C3'—C4'	142 (5)
C2—N3—C3—C4	−143.2 (3)	N4'—C3'—C4'—C5'	−3 (2)
N4—C3—C4—C5	1.6 (4)	N3'—C3'—C4'—C5'	−175 (3)
N3—C3—C4—C5	177.3 (3)	C3'—C4'—C5'—C6'	−1 (2)
C3—C4—C5—C6	−0.8 (5)	C4'—C5'—C6'—C7'	0 (4)
C4—C5—C6—C7	0.1 (7)	C5'—C6'—C7'—N4'	4 (5)
C5—C6—C7—N4	0.2 (7)	C4'—C3'—N4'—C7'	7 (4)
C4—C3—N4—C7	−1.3 (4)	N3'—C3'—N4'—C7'	179 (3)
N3—C3—N4—C7	−177.3 (2)	C6'—C7'—N4'—C3'	−7 (5)
C6—C7—N4—C3	0.4 (5)	C1'—N1'—C8'—C9'	−95 (4)
C1—N1—C8—C9	123.8 (3)	N2'—N1'—C8'—C9'	91 (3)
N2—N1—C8—C9	−56.3 (3)	N1'—C8'—C9'—C10'	−105 (5)
N1—C8—C9—C10	−63.5 (4)	C8'—C9'—C10'—C11'	144 (6)
C8—C9—C10—C11	176.6 (3)	N1"—C8"—C9"—C10"	72.0 (15)
N3'—C1'—N1'—N2'	−2 (4)	C8"—C9"—C10"—C11"	173.7 (19)

Symmetry code: (i) −x+1, −y+1, −z+1.

Weak hydrogen bonds (Å, °) in I top

D—H···A	D—H	H···A	D···A	D—H···A
C7—H7—N4ⁱⁱ	0.95	2.73	3.574 (4)	149.0
C2—H2···Br1ⁱⁱⁱ	0.95	2.82	3.653 (3)	147.6
C5—H5···Br1^iv	0.95	2.84	3.747 (3)	158.9

Symmetry codes: (ii) 2 - x, 1 - y, -z; (iii) x + 1, y, z; (i)= -x + 1, 1/2 + y, 1/2 - z.

Funding information

The D8 Venture diffractometer was funded by the NSF (MRI CHE1625732), and by the University of Kentucky. We are also grateful to Berea College and the Berea College Chemistry Department for financial support through the James C. Barton Fund and the Kresge Fund.

References

Arduengo, A. J., Harlow, R. L. & Kline, M. (1991). J. Am. Chem. Soc. 113, 361–363. CSD CrossRef CAS Web of Science Google Scholar
Bruker (2023). APEX5. Bruker-AXS Inc., Madison, Wisconsin, USA. Google Scholar
Chianese, A. R., Kovacevic, A., Zeglis, B. M., Faller, J. W. & Crabtree, R. H. (2004). Organometallics 23, 2461–2468. Web of Science CSD CrossRef Google Scholar
Crabtree, R. H. (2005). J. Organomet. Chem. 690, 5451–5457. Web of Science CrossRef CAS Google Scholar
Díez-González, S., Marion, N. & Nolan, S. P. (2009). Chem. Rev. 109, 3612–3676. Web of Science PubMed Google Scholar
Etter, M. C., MacDonald, J. C. & Bernstein, J. (1990). Acta Cryst. B46, 256–262. CrossRef ICSD CAS Web of Science IUCr Journals Google Scholar
Fortman, G. C. & Nolan, S. P. (2011). Chem. Soc. Rev. 40, 5151–5169. Web of Science CrossRef CAS PubMed Google Scholar
Kovacevic, A., Faller, J. W. & Parkin, S. (2025). J. Organomet. Chem. 1035, 123681. CrossRef Google Scholar
Kovacevic, A., Parkin, S. & Baltisberger, J. H. (2025). Dalton Trans. 54, 13863–13868. CrossRef PubMed Google Scholar
Krause, L., Herbst-Irmer, R., Sheldrick, G. M. & Stalke, D. (2015). J. Appl. Cryst. 48, 3–10. Web of Science CSD CrossRef ICSD CAS IUCr Journals Google Scholar
Nguyen, V. H., El Ali, B. M. & Huynh, H. V. (2018). Organometallics 37, 2358–2367. CrossRef Google Scholar
Nguyen, V. H., Ibrahim, M. B., Mansour, W. W., El Ali, B. M. & Huynh, H. V. (2017). Organometallics 36, 2345–2353. CrossRef Google Scholar
Nguyen, V. H., Phung, T. T. H., Doan, T. D. & Do, T. T. (2022). Mendeleev Commun. 32, 594–596. Google Scholar
Parkin, S. (2026). J. Appl Cryst. 59. In the press (HE5700). Google Scholar
Sheldrick, G. M. (2008). Acta Cryst. A64, 112–122. Web of Science CrossRef CAS IUCr Journals Google Scholar
Sheldrick, G. M. (2015a). Acta Cryst. A71, 3–8. Web of Science CrossRef IUCr Journals Google Scholar
Sheldrick, G. M. (2015b). Acta Cryst. C71, 3–8. Web of Science CrossRef IUCr Journals Google Scholar
Spek, A. L. (2020). Acta Cryst. E76, 1–11. Web of Science CrossRef IUCr Journals Google Scholar
Westrip, S. P. (2010). J. Appl. Cryst. 43, 920–925. Web of Science CrossRef CAS IUCr Journals Google Scholar

This is an open-access article distributed under the terms of the Creative Commons Attribution (CC-BY) Licence, which permits unrestricted use, distribution, and reproduction in any medium, provided the original authors and source are cited.
