![[Figure 6]](us5163fig6mag.jpg)
|
|
Figure 6

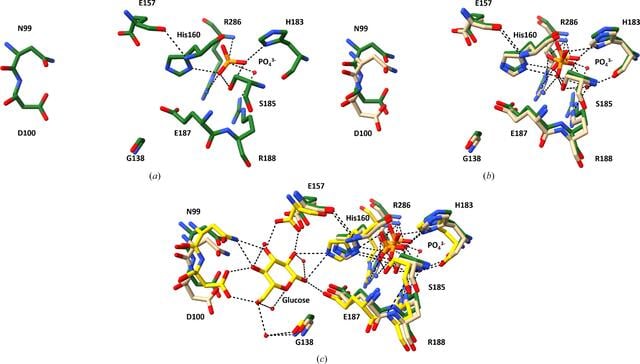

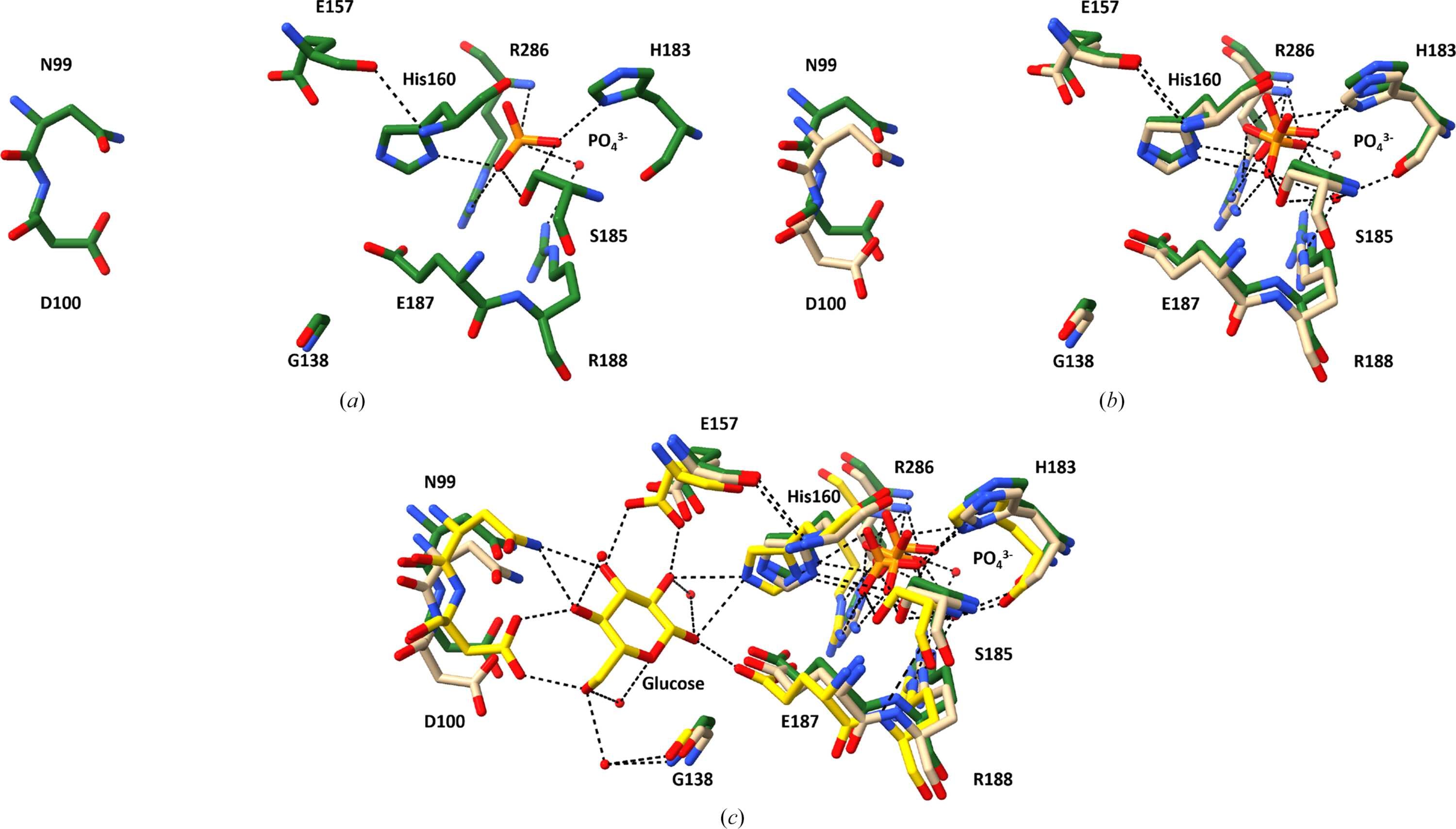

The structure of the glucose- and phosphate-binding sites of ecGLK K216Q. (a) Amino-acid residues in the glucose- and phosphate-binding sites of ecGLK K216Q (PDB entry 9pyu, green). (b) Superimposition of the residues in the glucose- and phosphate-binding sites of phosphate-bound WT ecGLK (PDB entry 9duc, tan) and phosphate-bound ecGLK K216Q (PDB entry 9pyu, green). (c) Superimposition of the residues in the glucose- and phosphate-binding sites of phosphate-bound WT ecGLK (PDB entry 9duc, tan), phosphate-bound ecGLK K216Q (PDB entry 9pyu, green) and phosphate-bound glucose–WT ecGLK complex (PDB entry 9dvz, yellow). |
