Figure 1

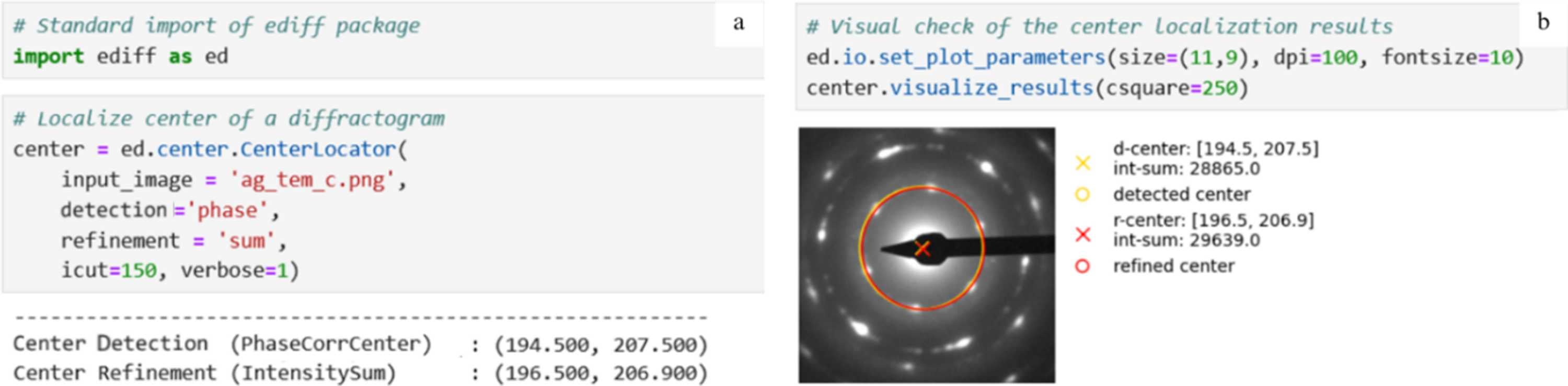

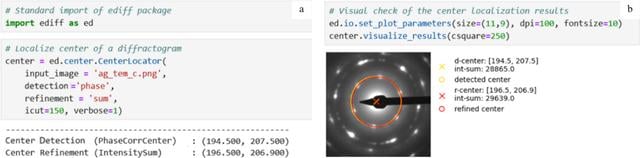

Jupyter Notebook interface for the ediff.center module. (a) Example code snippet for automated center detection of an ED pattern. The workflow demonstrates how to initialize the CenterLocator, specify the detection method (here phase cross-correlation) and refinement strategy (here intensity sum), and obtain the numerical output for both the initially detected and refined center positions. (b) Visualization of the results, showing the diffraction pattern with overlaid markers: the yellow circle and cross mark the detected center, while the red circle and cross indicate the refined center after intensity-based adjustment. Reported coordinates and integrated intensities allow users to evaluate the accuracy of the location.
