Figure 6

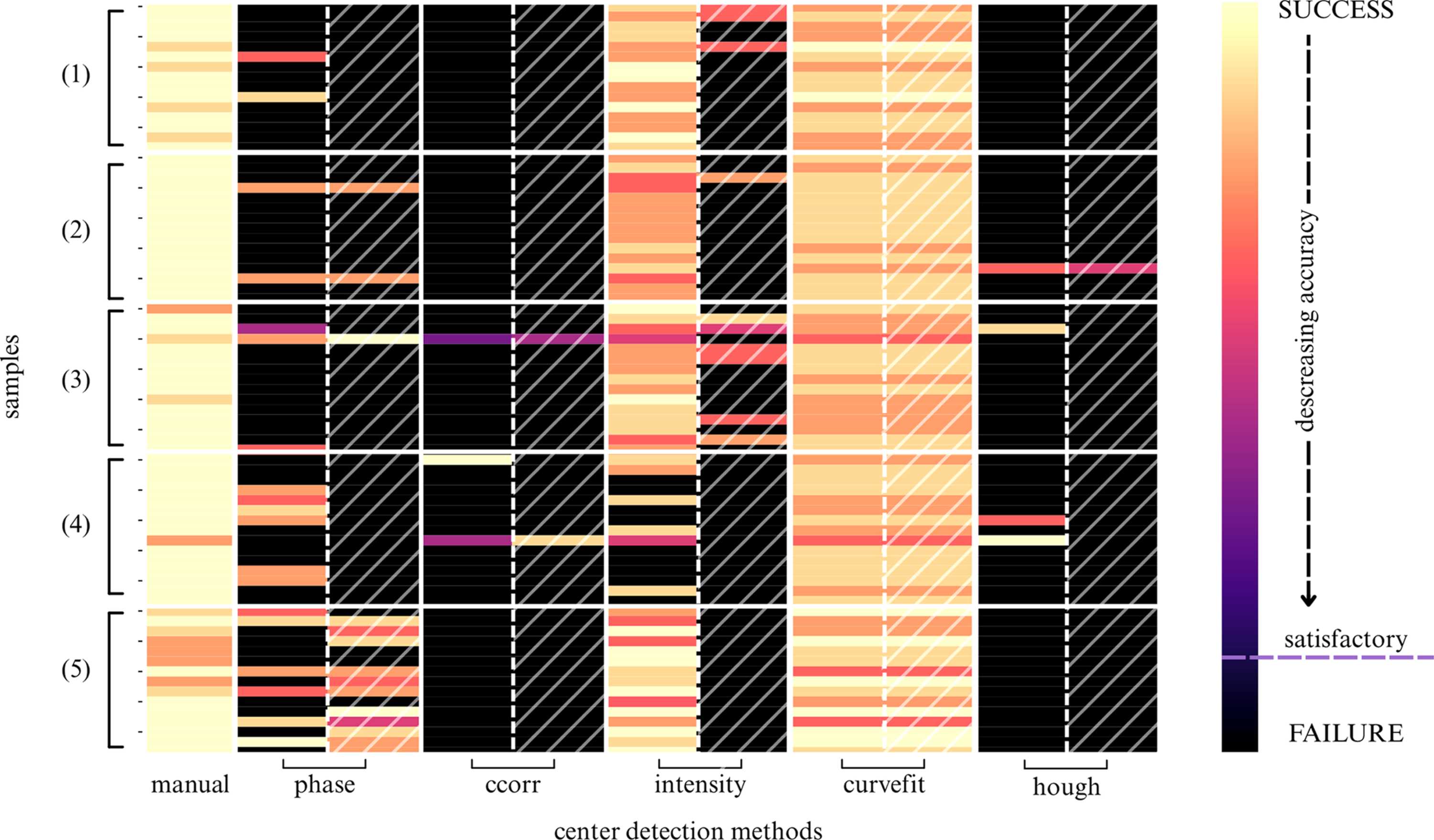

Heatmap illustrating the performance of center detection methods on the single-crystal dataset D2. Each row corresponds to an individual diffractogram [15 patterns per material: (1) Au, (2) TbF3, (3) Fe3O4, (4) LaF3 and (5) GdF3]. Each column represents a center detection method (manual = three-point detection, phase = phase cross-correlation, ccorr = autocorrelation, intensity = maximum intensity detection, curvefit = pseudo-Voigt profile fitting, hough = Hough transform). Hatched columns indicate a method's performance on pre-processed diffractograms (edge detection using a Sobel operator). The color bar on the right indicates the performance scale: the lightest color (yellow) indicates the most accurate detection, while the darkest color (black) signifies failure or substantial inaccuracy in center location. The groups (1)–(5) correspond to various diffractogram qualities, as explained in Section 2.3[link], Table 4 and Table S3. The quality is as follows: (1) perfect, (2) good, (3) bad, (4) poor and (5) intermediate.
