Figure 7

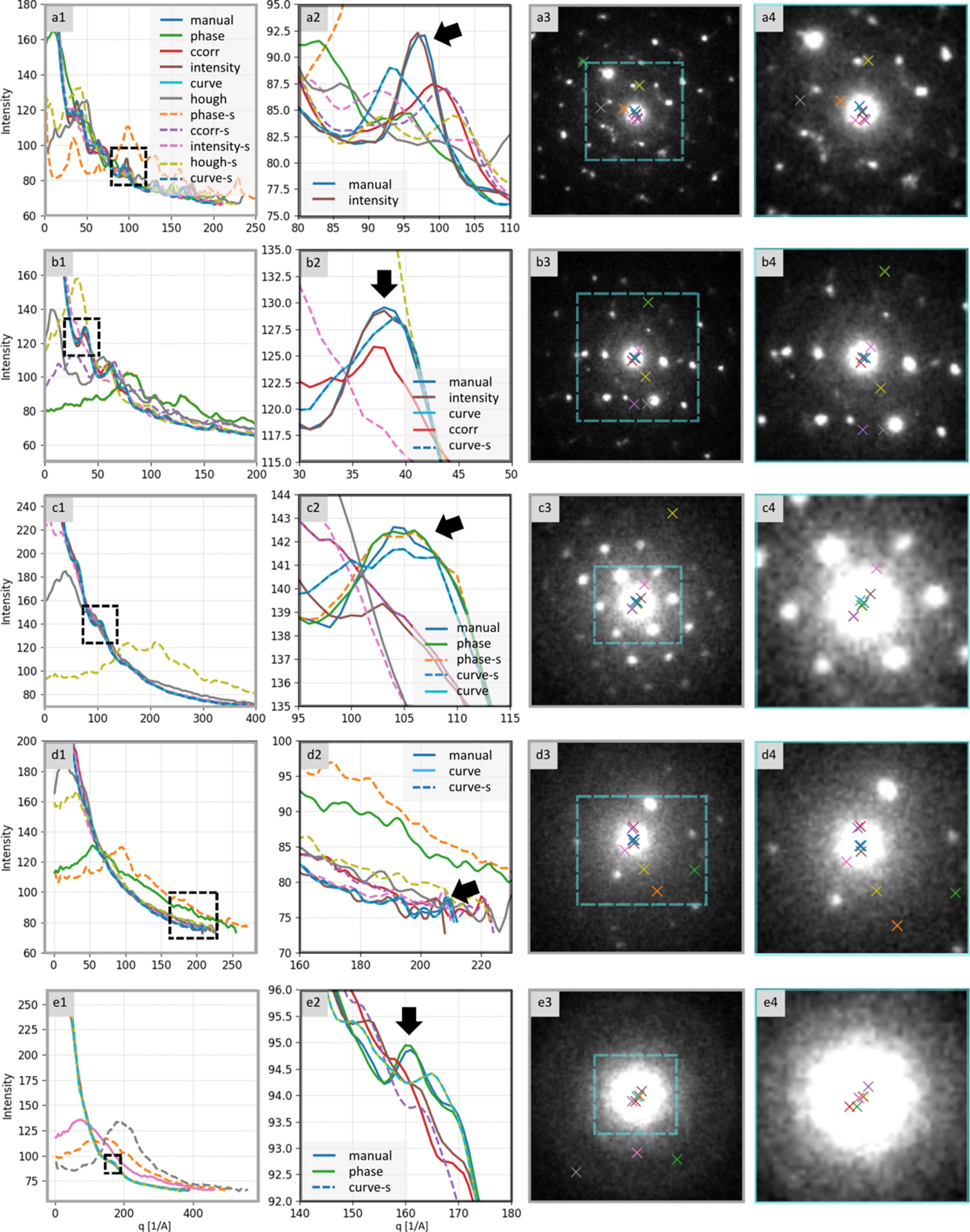

Performance of center detection methods on representative single-crystal diffractograms corresponding to Fig. 3. Column 1: 1D radially averaged profiles computed using each method's center (overlaid, color coded). Column 2: enlargement of the dominant peak (black box in Column 1), marked with black arrows, showing the top-performing method(s). Column 3: original diffractogram with detected centers (color-coded crosses). Column 4: enlargement of the central region (blue box in Column 3) around the direct (primary) beam and the detections. Samples: (a) and (b) Au nano-islands, (c) TbF3 nanocrystalline aggregates, (d) Fe3O4 nanoclusters, and (e) LaF3 nanoparticles in amorphous biological tissue.
