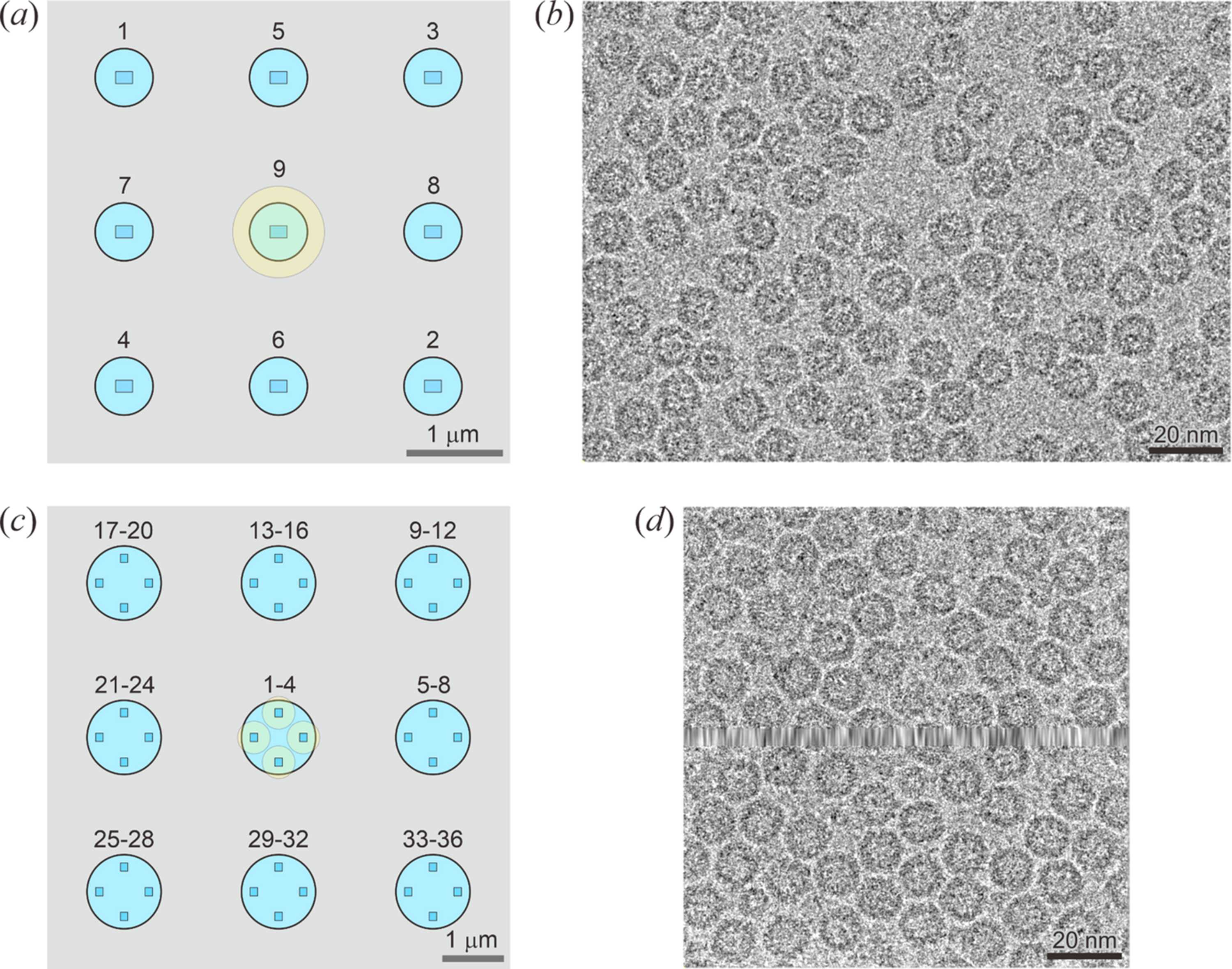

Figure 4
Acquisition patterns and exemplary images for the (a)/(b) 200 kV and (c)/(d) 100 kV apoferritin test datasets. (a)/(c) Acquisition pattern schematics with support film holes in light blue, detector size and shape in blue, and beam size and position in pale yellow. Numbers indicate the acquisition order. (b)/(d) Exemplary images from the datasets collected at (b) 200 kV on a Gatan K3 camera and (d) 100 kV on a DECTRIS SINGLA hybrid-pixel detector. The inter­polated inter-module gap of the SINGLA detector is visible as a blurred horizontal stripe through the middle of the image.
