Quantification in wavelength-resolved neutron imaging: exemplified using polyethylene to mimic hydrogen in stainless steel

Xu, S.; Chulapakorn, T.; Dahlberg, C.F.O.; Damian, J.I.M.; Liu, M.; DiJulio, D.D.; Kittelmann, T.; Losko, A.; Athanasopoulos, S.; Pan, J.; Larsson, A.; Muhrer, G.; Kockelmann, W.; Ramadhan, R.S.; Wolfertz, A.; Woracek, R.

doi:10.1107/S2052252526008882

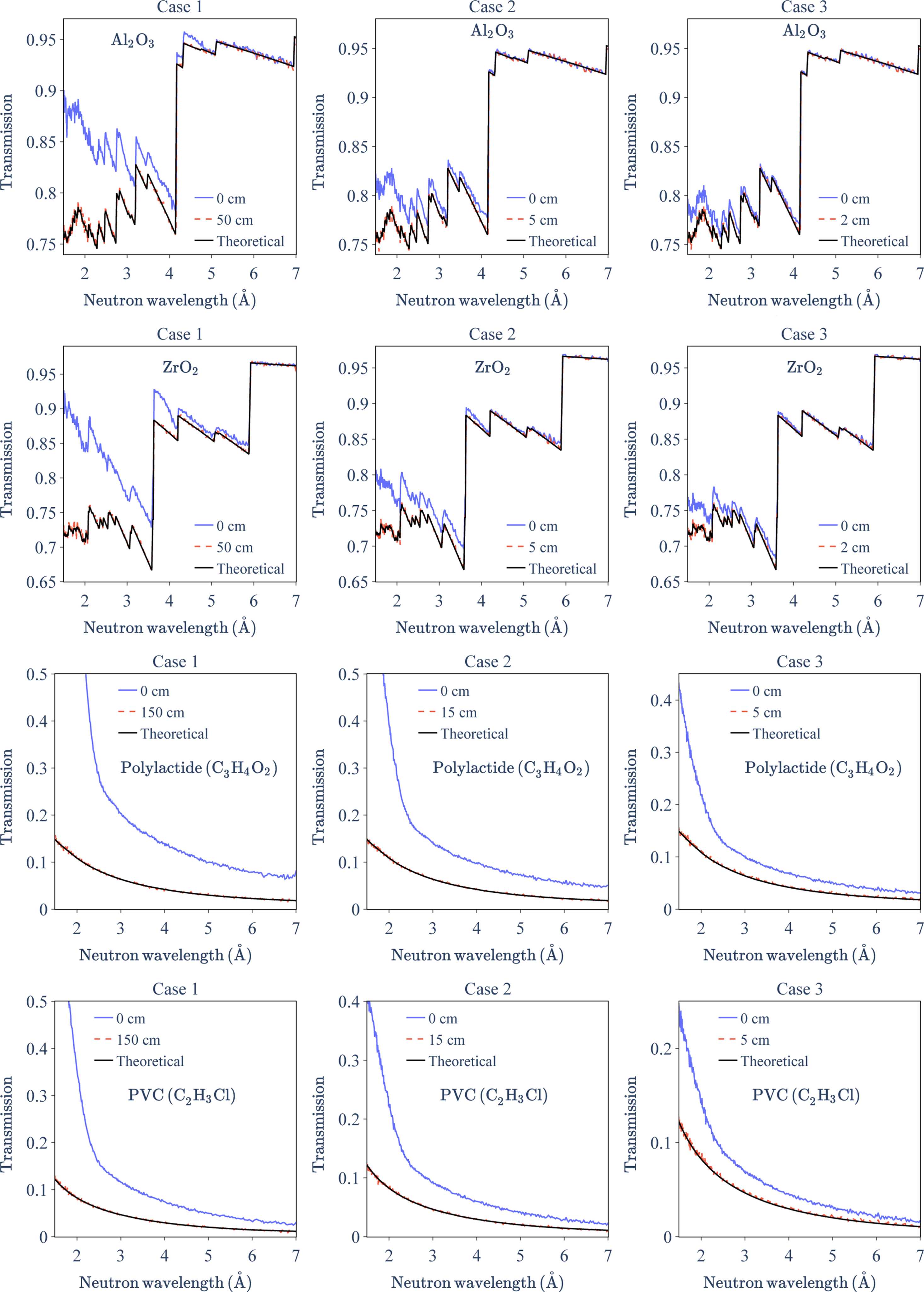

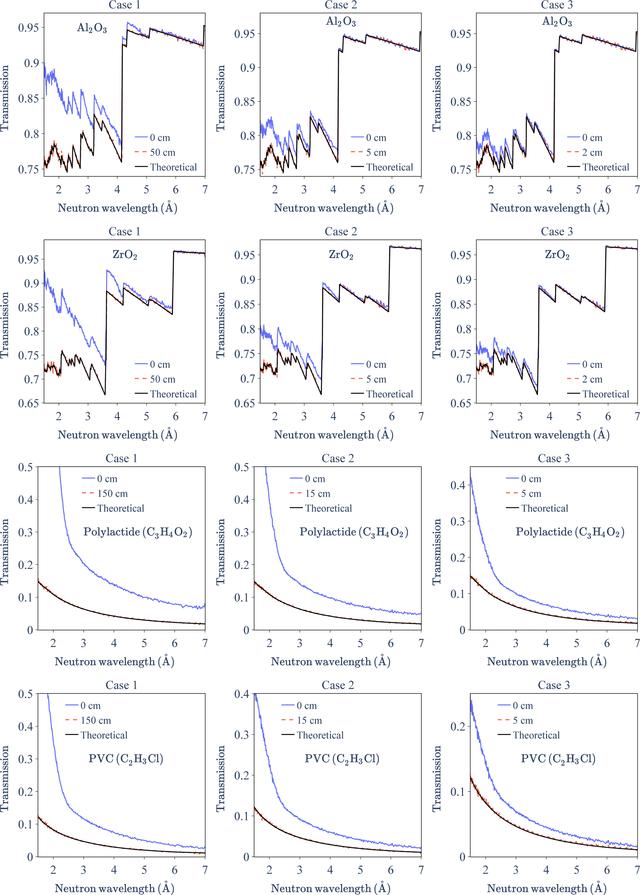

Figure 14
Comparison of simulated and theoretically predicted transmission spectra (solid black lines) for 8 mm thick Al₂O₃, ZrO₂, polylactide (C₃H₄O₂) and polyvinylchloride (PVC; C₂H₃Cl) across simulation Cases 1, 2 and 3. The results indicate that the sample-to-detector distances of 50 cm, 5 cm and 2 cm are sufficient to mitigate forward-scattering artefacts in Cases 1, 2 and 3 for Al₂O₃ and ZrO₂. However, polylactide and PVC necessitate larger sample-to-detector distances of 150 cm, 15 cm and 5 cm for the three cases, respectively.

IUCrJ

Volume 13| Part 6| November 2026|

ISSN: 2052-2525

https://doi.org/10.1107/S2052252526008882
