Figure 3

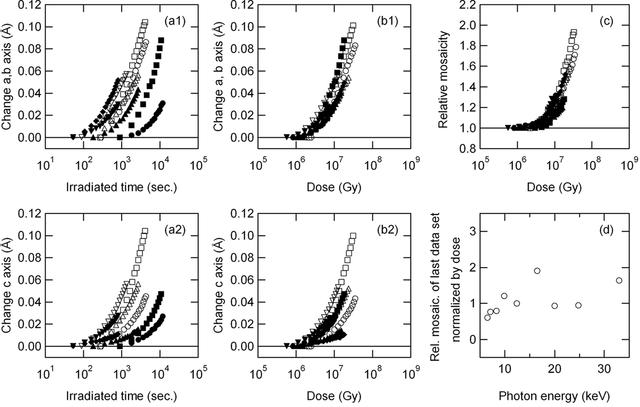

(a) Comparison of changes in the lattice constants, for a or b (a1) and for the c axis (a2), for nine energies. One data point represents the results from one data set. Data at 6.5, 7.1, 8.3, 9.9, 12.4, 16.5, 20.0, 24.8 and 33.0 keV are represented by the white circles, white squares, white triangles, white inverted triangles, black diamonds, black inverted triangles, black triangles, black squares and black circles, respectively. (b) For comparison, the x-axis represents absorbed dose. (c) Comparison of the change in mosaicity for the nine energies. Relative values were calculated by dividing the mosaicity of each data set by that for the first data set. (d) Comparison of the relative mosaicity normalized to total absorbed dose at each energy. These values represent relative mosaicity of the last data set after dividing by total absorbed dose at each energy; the value at 12.4 keV was designated as 1.0.
