Figure 6

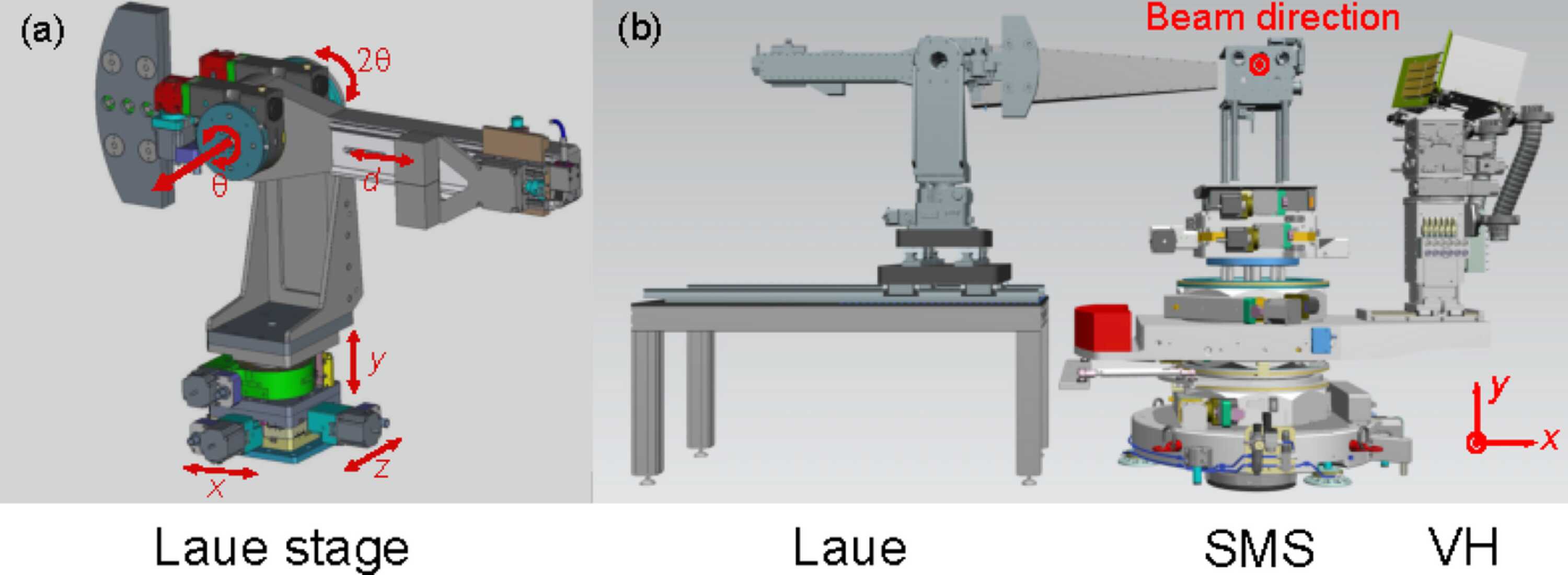

(a) 3D drawing of the motorized stages for the Laue spectrometer installed at the FXE instrument. The Laue analyzer is mounted at the center of the θ stage and the detector is placed in the 2θ arm. (b) The layout of the Laue spectrometer, SMS and von Hamos (VH) spectrometer used in measurements at FXE is shown in the view along the beam direction.
