Optimizing a photon absorber using conformal cooling channels and additive manufacturing in copper

Chahid, Y.; Atkins, C.; Hodbod, S.; Robinson, J.; Liu, X.; Watson, S.; Jones, M.; Cliffe, M.; Ogunkanmi, D.; Kotlewski, R.; Chapman, L.; Beamish, S.; Linde Cerezo, J.; Wearing, T.; Baroutaji, A.; Arjunan, A.; Fowler, C.; Vivian, P.

doi:10.1107/S1600577525003078

Journal of Synchrotron Radiation Journal of
Synchrotron Radiation

IUCr IT WDC

home archive editors for authors for readers submit open access

view article

Figure 1

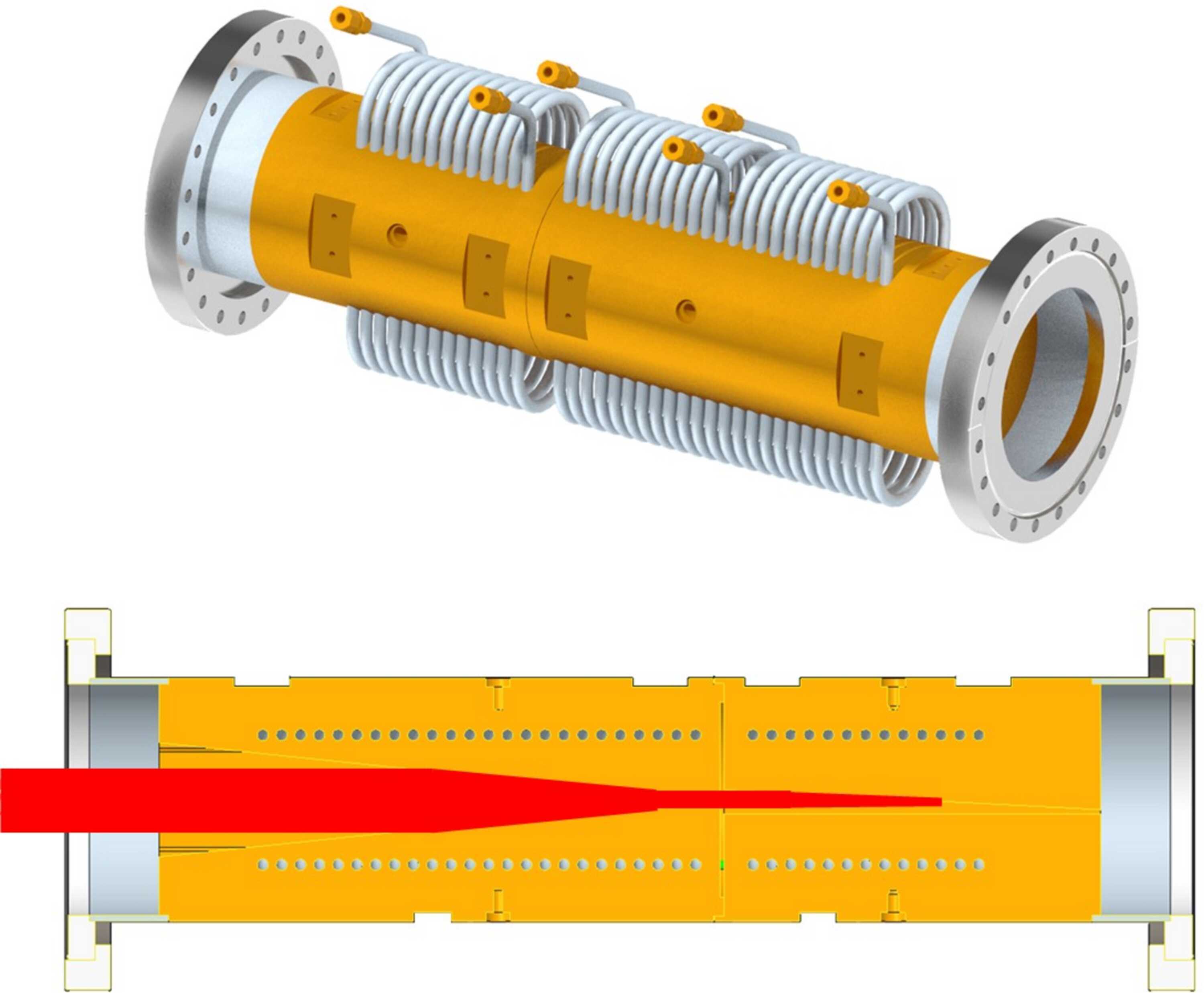

Full size conventional absorber CAD design with a length of 600 mm (top). Cross section of the conventional CAD-design, showing an example of the beam in red, coming from the insertion device, and hitting the BTS which is angled at 3.5° to the source (bottom).
