Optimizing a photon absorber using conformal cooling channels and additive manufacturing in copper

Chahid, Y.; Atkins, C.; Hodbod, S.; Robinson, J.; Liu, X.; Watson, S.; Jones, M.; Cliffe, M.; Ogunkanmi, D.; Kotlewski, R.; Chapman, L.; Beamish, S.; Linde Cerezo, J.; Wearing, T.; Baroutaji, A.; Arjunan, A.; Fowler, C.; Vivian, P.

doi:10.1107/S1600577525003078

Journal of Synchrotron Radiation Journal of
Synchrotron Radiation

IUCr IT WDC

home archive editors for authors for readers submit open access

view article

Figure 15

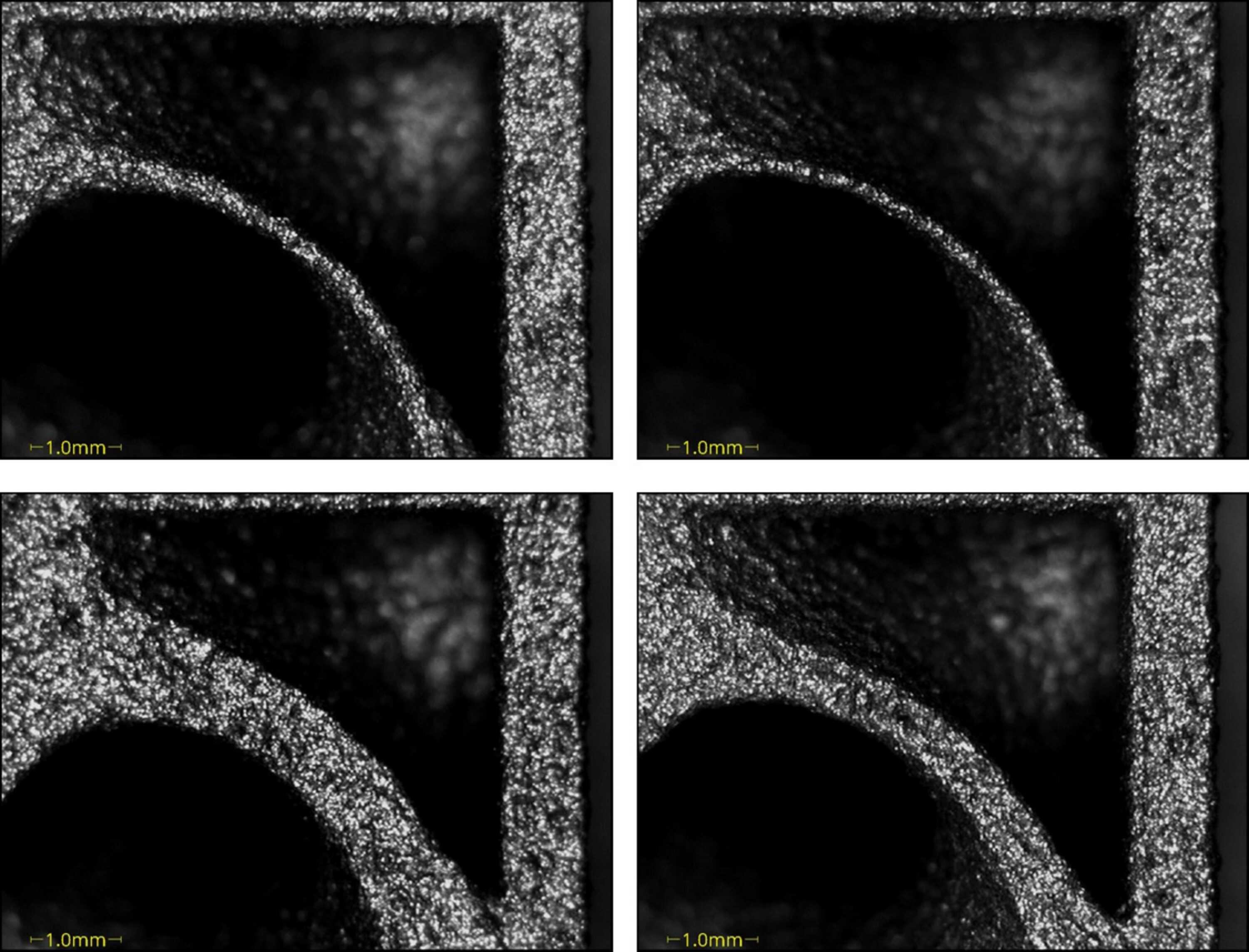

CMM camera images showing gyroids with wall thicknesses of 0.16 mm, 0.32 mm, 0.64 mm and 0.96 mm (from top right to bottom left). These gyroids served as a reference to guide the selection of the infill wall thickness for the copper printed absorber.
