Optimizing a photon absorber using conformal cooling channels and additive manufacturing in copper

Chahid, Y.; Atkins, C.; Hodbod, S.; Robinson, J.; Liu, X.; Watson, S.; Jones, M.; Cliffe, M.; Ogunkanmi, D.; Kotlewski, R.; Chapman, L.; Beamish, S.; Linde Cerezo, J.; Wearing, T.; Baroutaji, A.; Arjunan, A.; Fowler, C.; Vivian, P.

doi:10.1107/S1600577525003078

Journal of Synchrotron Radiation Journal of
Synchrotron Radiation

IUCr IT WDC

home archive editors for authors for readers submit open access

view article

Figure 18

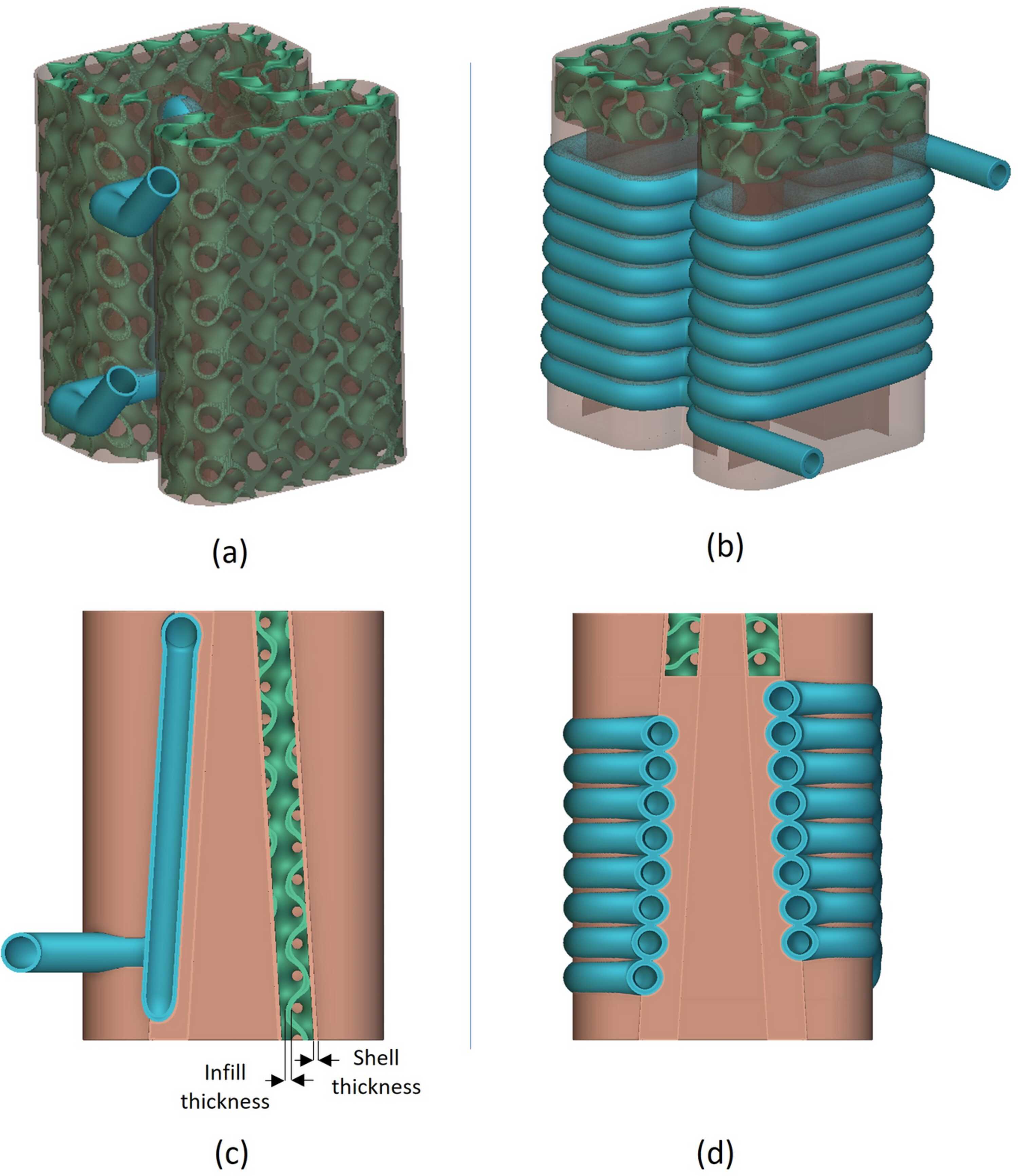

Transparent CAD model of lightweight Horizontal design (a) and lightweight Coil design (b) showing the gyroid infill in green and cooling channel in blue. Cross section of the lightweight Horizontal (c) and lightweight Coil design (d) showing how the gyroid infill covers the majority of the lightweight Horizontal design but only the upper 16 mm of the lightweight Coil design.
