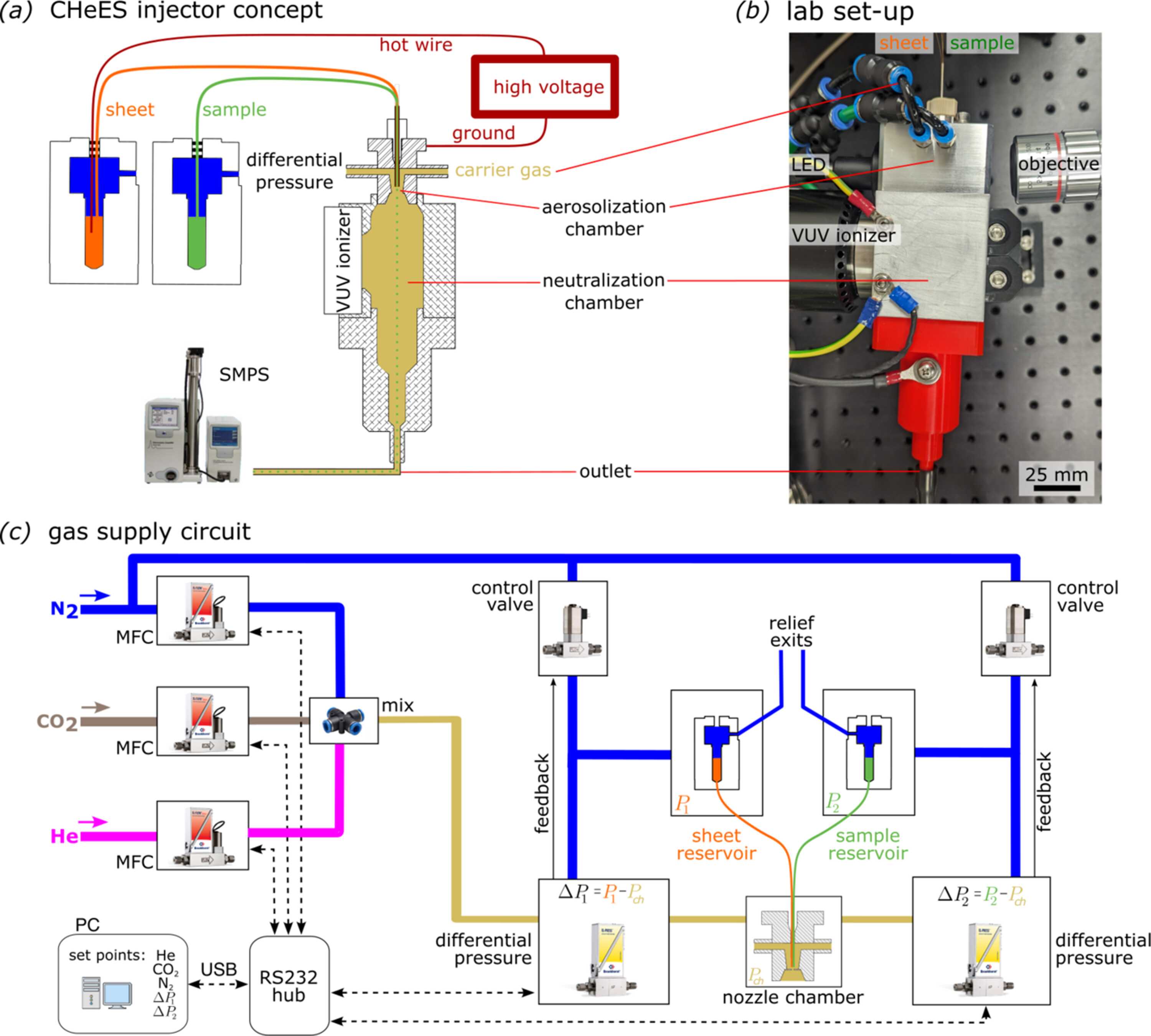

Figure 2
CHeES aerosol generator setup. (a) A detailed illustration of the CHeES system configuration shows the liquid lines, high voltage and carrier gas connections. The coaxial sheet (outer liquid) and sample (inner liquid) are aerosolized through Taylor cone formation and travel to the neutralization chamber, where they are neutralized by a vacuum ultraviolet neutralizer before exiting into an SMPS for droplet sizing. (b) Photograph of the physical configuration of the CHeES aerosolizer in the laboratory. (c) Schematic of the gas flow circuit with an emphasis on the integration of mass flow controllers and differential pressure meters coupled with control valves to regulate the flow rates of CHeES liquids and carrier gases.
