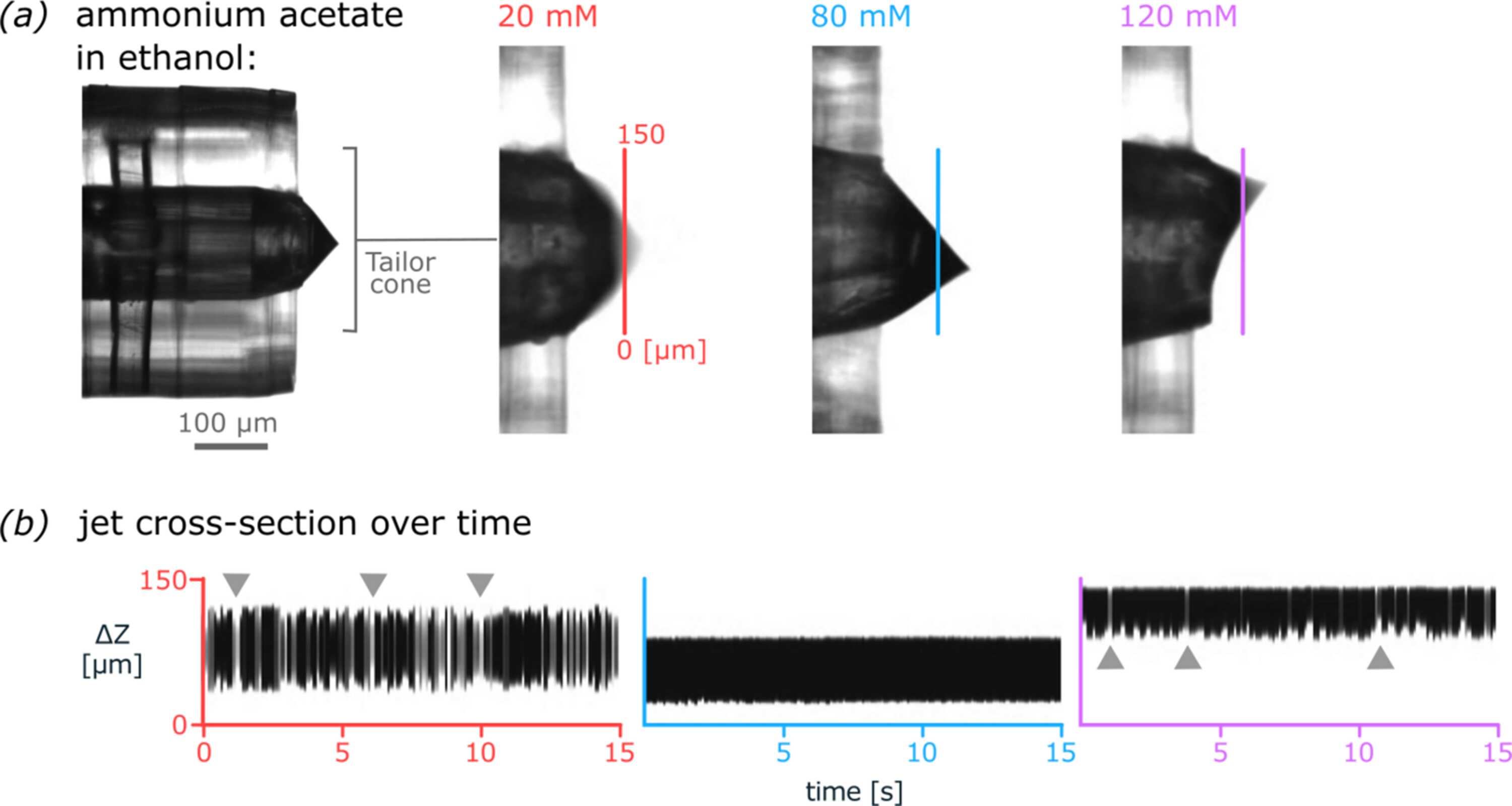

Figure 5
Coaxial-sheet-liquid optimization for CHeES Taylor cone stability. (a) Among the tested range of 20–120 mM ammonium acetate, an 80 mM ammonium acetate in ethanol showed optimal Taylor cone stability and aerosol generation when injected at 401 nL min−1 (SI-Movie 1). (b) A representative cross-section of the Taylor cone was recorded over a duration of 15 s. Gray arrows indicate strong cone shape fluctuations for 20 mM and 120 mM ammonium acetate in ethanol.
