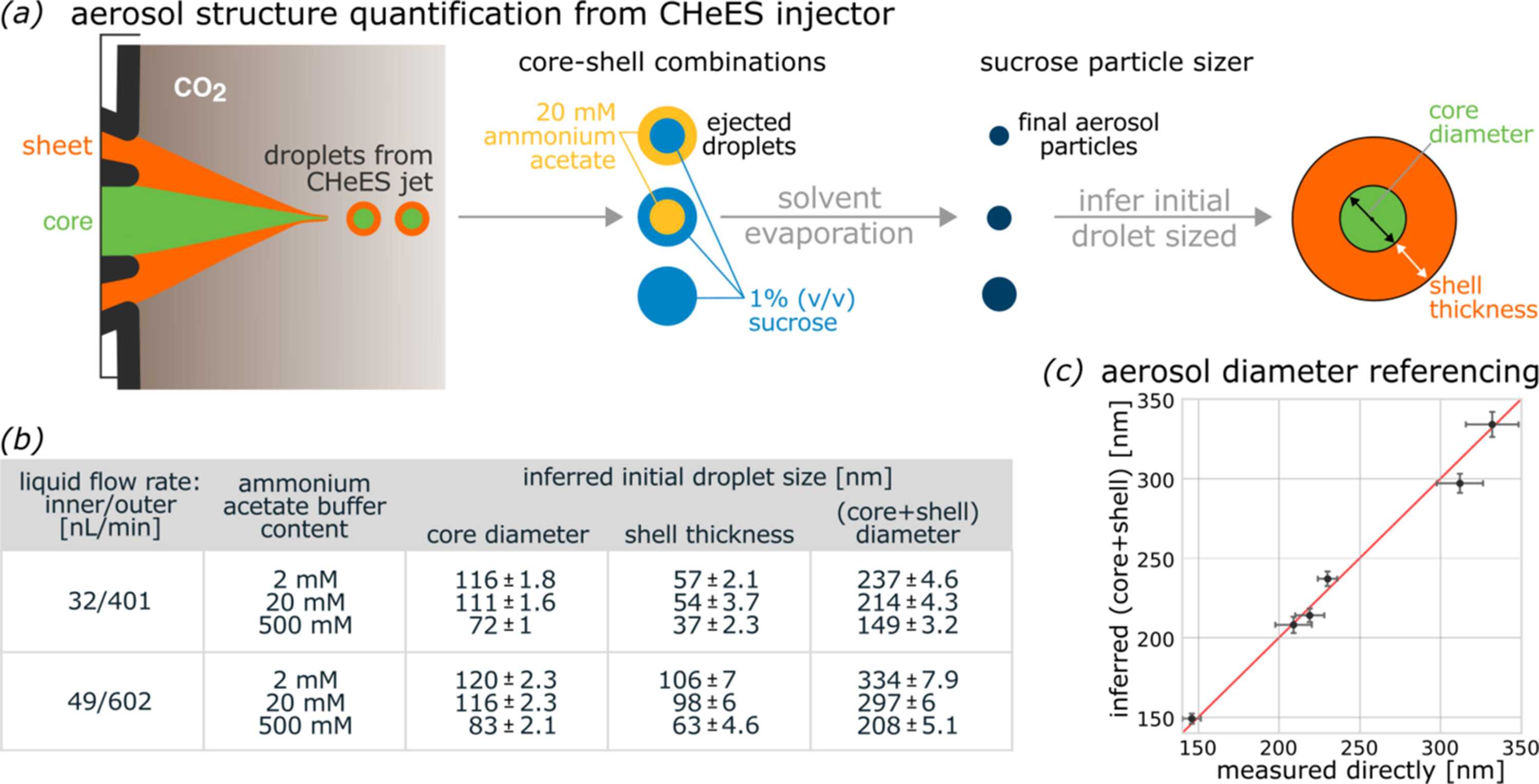

Figure 7
Detailed quantification of droplet structure produced by CHeES. (a) Three independent experiments were used to quantify a condition. Either the inner core (top), outer sheet (middle) or both (bottom) portions of the jet are supplemented with sucrose for SMPS particle sizing after solvent evaporation. (b) For the six conditions tested, higher surface charge at the Taylor cone produces smaller droplets and thus smaller particles (SI-Table 2). (c) Core-shell diameter quantified from separate experiments (inferred) or directly quantified showed very good agreement with each other.
